High Quality Ferrite Cylinder From Senz Magnet
ferrite cylinder is guaranteed to be durable and functional. Shengzhou Senz Magnet Co.,Ltd has implemented a scientific quality management system to make sure that the product has exceptional quality for long-time storage and application. Elaborately designed based on the functionality the users expect, the product can provide greater usability and more intuitive user experience.
In recent years, Senz Magnet has gradually received a good reputation in the international market. This benefits from our continuous efforts on brand awareness. We have sponsored or participated in some of China local events to expand our brand visibility. And we post regularly on social media platform to effectively execute on our brand strategy of the global market.
With different focuses and no duplication of content, ferrite cylinders are engineered to deliver efficient magnetic flux control while maintaining compact dimensions. These cylindrical components are designed for seamless integration into complex circuits, enhancing magnetic performance across a variety of electronic systems. By optimizing magnetic behavior in a compact form factor, ferrite cylinders ensure reliable operation in diverse applications, from power supplies to signal processing.
How to choose ferrite cylinder?
Looking to enhance electromagnetic interference suppression, improve signal integrity, or optimize magnetic performance in electronic devices? Ferrite cylinders are the ideal solution! Their high magnetic permeability and cost-effectiveness make them perfect for applications ranging from power supplies to communication systems.
- Superior magnetic permeability for efficient EMI reduction and energy transfer.
- Versatile use in power supplies, telecommunications, automotive electronics, and RF transformers.
- Select based on size, frequency range, temperature stability, and material grade for optimal performance.
- Cost-effective, durable, and reliable under high temperatures and demanding conditions.
As automotive technology continues to evolve, managing electromagnetic interference (EMI) has become a critical challenge. The increasing complexity of modern vehicles, with advanced features like infotainment systems, multiple sensor arrays, and hybrid powertrains, makes EMI management more pressing than ever. Ferrite cylinders emerge as a vital solution in addressing this issue, offering robust EMI suppression and enhanced system reliability.
Key Features and MechanismsFerrite cylinders are coated with a polymer on both sides, enhancing their magnetic properties. This coating increases their permeability and reduces energy loss, making them ideal for use in electric vehicles (EVs) and hybrid systems. The interaction between ferrite cylinders and surrounding magnetic fields allows them to suppress EMI effectively. Their design enables efficient energy storage and quick release, which is crucial for applications requiring dynamic magnetic fields. Ferrite cylinders operate at higher frequencies compared to traditional ferrite cores, making them suitable for high-speed electronic systems. This high-frequency performance is particularly beneficial in managing the complex electromagnetic environment of modern vehicles.
Signal IntegrityIn automotive systems, maintaining signal integrity is crucial for the reliable operation of various components. For instance, in infotainment units and powertrain components, ferrite cylinders play a key role in ensuring clear and accurate data transmission. By minimizing signal loss and interference, they reduce the risk of data corruption, which is essential for the safe and efficient operation of modern vehicles. Furthermore, they are particularly vital in advanced driver-assistance systems (ADAS), where clear and reliable communication between components is crucial. Ferrite cylinders contribute to this by filtering out unwanted noise, ensuring that data is transmitted accurately.
Electromagnetic Compatibility (EMC)Achieving electromagnetic compatibility (EMC) standards is essential for automotive vehicles, as it ensures safety and optimal performance in electromagnetic environments. Ferrite cylinders play a significant role in reducing EMI, addressing the challenges posed by complex automotive systems. For example, in a modern engine control unit (ECU), the presence of multiple sensors and modules can generate and be affected by EMI. Ferrite cylinders help minimize this interference, ensuring stable system performance and reliability. They interact with other components to create a balanced electromagnetic environment, ensuring compliance with EMC regulations.
Noise Reduction TechniquesFerrite cylinders suppress noise in electronic systems through techniques such as impedance matching and frequency filtering. In applications like engine control units and sensors, they reduce environmental noise, improving system reliability. Advanced noise reduction techniques, such as controlled impedance design and frequency-dependent filtering, further enhance their effectiveness. These methods ensure that electronic systems function smoothly in noisy environments, maintaining optimal performance. For instance, in a hybrid vehicle, the complex hybrid power system generates significant EMI. Ferrite cylinders help alleviate this by filtering out interfering signals, allowing the system to operate efficiently.
Comparison with Other Magnetic ComponentsWhile ferrite cores are highly efficient at lower frequencies, ferrite cylinders offer better thermal stability and performance at higher frequencies. They are particularly advantageous in hybrid systems and advanced driver-assistance systems (ADAS), where their ability to handle complex electromagnetic environments is crucial. Comparisons with other magnetic components highlight their unique advantages, such as efficiency in high-frequency applications or their role in reducing EMI in hybrid systems. For example, in comparison to iron-shaped parts, ferrite cylinders provide superior high-frequency performance and better thermal management, making them a preferred choice in many automotive applications.
Future Trends and InnovationsEmerging trends in electric vehicles (EVs) and hybrid systems are driving advancements in ferrite cylinders. Innovations in manufacturing and materials are enhancing their efficiency and performance. Future applications may include the use of ferrite cylinders in ADAS and connected vehicle technologies, where their ability to handle dynamic electromagnetic environments will be critical. Researchers are exploring new materials and topologies to further improve their performance in automotive applications. For example, the development of ferrite cylinders with enhanced magnetic permeability and lower loss materials could lead to more efficient and reliable systems in the future.
ConclusionFerrite cylinders are indispensable in automotive electronics, offering solutions to EMI, signal integrity, and noise reduction. Their versatility and efficiency make them a cornerstone of modern automotive technology. As the automotive industry continues to evolve, ferrite cylinders will play an even more critical role in enhancing vehicle performance and reliability. Encouraging further research and development ensures their continued application in future advancements, making them a key component in the advancement of smart and connected vehicles.
Key Features and MechanismsFerrite cylinders are coated with a polymer on both sides, enhancing their magnetic properties. This coating increases their permeability and reduces energy loss, making them ideal for use in electric vehicles (EVs) and hybrid systems. The interaction between ferrite cylinders and surrounding magnetic fields allows them to suppress EMI effectively. Their design enables efficient energy storage and quick release, which is crucial for applications requiring dynamic magnetic fields. Ferrite cylinders operate at higher frequencies compared to traditional ferrite cores, making them suitable for high-speed electronic systems. This high-frequency performance is particularly beneficial in managing the complex electromagnetic environment of modern vehicles.
Signal IntegrityIn automotive systems, maintaining signal integrity is crucial for the reliable operation of various components. For instance, in infotainment units and powertrain components, ferrite cylinders play a key role in ensuring clear and accurate data transmission. By minimizing signal loss and interference, they reduce the risk of data corruption, which is essential for the safe and efficient operation of modern vehicles. Furthermore, they are particularly vital in advanced driver-assistance systems (ADAS), where clear and reliable communication between components is crucial. Ferrite cylinders contribute to this by filtering out unwanted noise, ensuring that data is transmitted accurately.
Electromagnetic Compatibility (EMC)Achieving electromagnetic compatibility (EMC) standards is essential for automotive vehicles, as it ensures safety and optimal performance in electromagnetic environments. Ferrite cylinders play a significant role in reducing EMI, addressing the challenges posed by complex automotive systems. For example, in a modern engine control unit (ECU), the presence of multiple sensors and modules can generate and be affected by EMI. Ferrite cylinders help minimize this interference, ensuring stable system performance and reliability. They interact with other components to create a balanced electromagnetic environment, ensuring compliance with EMC regulations.
Noise Reduction TechniquesFerrite cylinders suppress noise in electronic systems through techniques such as impedance matching and frequency filtering. In applications like engine control units and sensors, they reduce environmental noise, improving system reliability. Advanced noise reduction techniques, such as controlled impedance design and frequency-dependent filtering, further enhance their effectiveness. These methods ensure that electronic systems function smoothly in noisy environments, maintaining optimal performance. For instance, in a hybrid vehicle, the complex hybrid power system generates significant EMI. Ferrite cylinders help alleviate this by filtering out interfering signals, allowing the system to operate efficiently.
Comparison with Other Magnetic ComponentsWhile ferrite cores are highly efficient at lower frequencies, ferrite cylinders offer better thermal stability and performance at higher frequencies. They are particularly advantageous in hybrid systems and advanced driver-assistance systems (ADAS), where their ability to handle complex electromagnetic environments is crucial. Comparisons with other magnetic components highlight their unique advantages, such as efficiency in high-frequency applications or their role in reducing EMI in hybrid systems. For example, in comparison to iron-shaped parts, ferrite cylinders provide superior high-frequency performance and better thermal management, making them a preferred choice in many automotive applications.
Future Trends and InnovationsEmerging trends in electric vehicles (EVs) and hybrid systems are driving advancements in ferrite cylinders. Innovations in manufacturing and materials are enhancing their efficiency and performance. Future applications may include the use of ferrite cylinders in ADAS and connected vehicle technologies, where their ability to handle dynamic electromagnetic environments will be critical. Researchers are exploring new materials and topologies to further improve their performance in automotive applications. For example, the development of ferrite cylinders with enhanced magnetic permeability and lower loss materials could lead to more efficient and reliable systems in the future.
ConclusionFerrite cylinders are indispensable in automotive electronics, offering solutions to EMI, signal integrity, and noise reduction. Their versatility and efficiency make them a cornerstone of modern automotive technology. As the automotive industry continues to evolve, ferrite cylinders will play an even more critical role in enhancing vehicle performance and reliability. Encouraging further research and development ensures their continued application in future advancements, making them a key component in the advancement of smart and connected vehicles.
1. Overview of Processing Techniques for Ferrite Magnets
Ferrite magnets, also known as ceramic magnets, are widely used in various applications due to their high electrical resistivity, excellent corrosion resistance, and cost-effectiveness. The manufacturing of ferrite magnets primarily involves powder metallurgy, a process that enables precise control over the magnetic properties and physical structure of the final product. In addition to powder metallurgy, other techniques such as surface finishing and protective coating are employed to enhance the magnets' performance and durability.
2. Powder Metallurgy Method for Ferrite Magnets
Powder metallurgy is the most common and industrial-scale method for producing ferrite magnets. This process involves several key steps, each of which significantly influences the magnetic properties and quality of the final product.
2.1 Raw Material Preparation
The primary raw materials for ferrite magnets are iron oxide (Fe₂O₃) and strontium carbonate (SrCO₃) or barium carbonate (BaCO₃), depending on the desired type of ferrite (e.g., strontium ferrite or barium ferrite). These materials are carefully selected for their purity and consistency to ensure the quality of the final magnet.
Chemical Reactions: The raw materials undergo a series of chemical reactions during the manufacturing process. For example, strontium carbonate decomposes into strontium oxide (SrO) and carbon dioxide (CO₂) at high temperatures:
SrCO3→SrO+CO2↑
Subsequently, strontium oxide reacts with iron oxide to form strontium ferrite (SrO·6Fe₂O₃):
SrO+6Fe2O3→SrO⋅6Fe2O3
Similar reactions occur for barium ferrite (BaO·6Fe₂O₃).
2.2 Mixing and Milling
The raw materials are thoroughly mixed to achieve a homogeneous distribution of the components. This mixture is then milled into a fine powder, typically with particle sizes smaller than 2 micrometers (μm). The milling process is crucial as it ensures that each particle consists of a single magnetic domain, which is essential for optimal magnetic performance.
Milling Techniques: Various milling techniques can be employed, including dry milling and wet milling. Wet milling, where the powder is mixed with water or a solvent to form a slurry, is often preferred as it improves particle dispersion and reduces agglomeration, leading to better magnetic properties.
2.3 Pressing
The milled powder is then pressed into the desired shape using a die. This step is critical for establishing the initial structure of the magnet and can be performed using two main methods:
Dry Pressing: The dry fine powder is pressed in a die without the application of an external magnetic field. This method results in isotropic magnets, which have random crystal orientations and can be magnetized in any direction. Isotropic magnets are easier to manufacture and have better dimensional tolerances but generally exhibit lower magnetic properties compared to anisotropic magnets.
Wet Pressing: The powder is mixed with water to form a slurry, which is then pressed in a die in the presence of an externally applied magnetic field. The magnetic field aligns the hexagonal crystal structure of the ferrite particles along the direction of magnetization, resulting in anisotropic magnets. Anisotropic magnets have stronger magnetic properties but may require additional machining to achieve the final dimensions.
2.4 Sintering
The pressed magnets are then sintered at high temperatures, typically around 1200°C (2192°F), in a controlled atmosphere (e.g., air or nitrogen). Sintering is a crucial step that fuses the particles together, creating a solid and durable magnet with a well-defined crystalline structure.
Sintering Process: During sintering, the powder particles undergo densification and grain growth, leading to a reduction in porosity and an increase in mechanical strength. The sintering temperature and time must be carefully controlled to avoid over-sintering, which can cause grain coarsening and a decrease in magnetic properties.
2.5 Magnetization
After sintering, the magnets are magnetized by placing them in a strong magnetic field. The direction and strength of the magnetization depend on the desired application and the type of magnet (isotropic or anisotropic).
3. Additional Processing Techniques
In addition to powder metallurgy, several other techniques are employed to enhance the performance and durability of ferrite magnets.
3.1 Surface Finishing
Surface finishing processes such as abrasive blasting, polishing, sanding, and lapping are used to improve the appearance, functionality, and surface quality of the magnets. These processes help achieve specific surface textures and remove any surface defects or contaminants that may affect magnetic performance.
3.2 Protective Coating
Ferrite magnets are often coated with protective layers to prevent corrosion and enhance wear resistance. Common coating materials include:
Gold Plating: Provides excellent corrosion resistance and is suitable for high-end applications.
Nickel Plating: Offers good corrosion resistance and is widely used in various industries.
Epoxy Coating: Provides a durable and cost-effective protective layer that can be customized in terms of color and thickness.
4. Factors Influencing the Quality of Ferrite Magnets
Several factors during the manufacturing process can significantly influence the quality and magnetic properties of ferrite magnets:
Particle Size and Morphology: The size and shape of the ferrite particles affect the magnetic domain structure and, consequently, the magnetic properties. Smaller particles with a uniform shape generally result in better magnetic performance.
Sintering Conditions: The sintering temperature, time, and atmosphere must be carefully controlled to achieve optimal densification and grain growth. Over-sintering can lead to grain coarsening and a decrease in magnetic properties, while under-sintering can result in high porosity and low mechanical strength.
Magnetic Field Alignment: For anisotropic magnets, the alignment of the magnetic field during pressing is crucial for achieving high magnetic properties. Any misalignment or inhomogeneity in the magnetic field can lead to a decrease in performance.
Raw Material Purity: The purity of the raw materials, particularly iron oxide and strontium/barium carbonate, significantly affects the magnetic properties of the final product. Impurities can act as pinning centers for domain walls, reducing the coercivity and remanence of the magnet.
5. Applications of Ferrite Magnets
Ferrite magnets are widely used in various applications due to their cost-effectiveness, high electrical resistivity, and excellent corrosion resistance. Some common applications include:
Motors and Generators: Ferrite magnets are used in the stators and rotors of electric motors and generators, providing a stable and reliable magnetic field.
Loudspeakers and Microphones: The high magnetic permeability of ferrite magnets makes them ideal for use in audio equipment, where they help convert electrical signals into sound waves.
Magnetic Separators: Ferrite magnets are used in magnetic separators to remove ferrous contaminants from materials such as food, chemicals, and minerals.
Refrigerator Magnets and Magnetic Clasps: The low cost and durability of ferrite magnets make them suitable for everyday applications such as refrigerator magnets and magnetic clasps for bags and clothing.
6. Advantages and Limitations of Powder Metallurgy for Ferrite Magnets
Powder metallurgy offers several advantages for the manufacturing of ferrite magnets, but it also has some limitations that must be considered.
Advantages
Cost-Effectiveness: Powder metallurgy is a relatively low-cost manufacturing method, especially for large-scale production.
Precision Control: The process allows for precise control over the magnetic properties and physical structure of the magnets through adjustments in particle size, sintering conditions, and magnetic field alignment.
Material Efficiency: Powder metallurgy minimizes material waste, as the powder can be recycled and reused in the manufacturing process.
Versatility: The method can be used to produce magnets of various shapes and sizes, making it suitable for a wide range of applications.
Limitations
Brittleness: Ferrite magnets are brittle and prone to chipping or cracking if subjected to mechanical stress. This limits their use in applications requiring high mechanical strength.
Lower Magnetic Properties: Compared to rare-earth magnets such as neodymium-iron-boron (NdFeB) and samarium-cobalt (SmCo), ferrite magnets have lower magnetic properties, including remanence and coercivity.
Sintering Challenges: Achieving optimal sintering conditions can be challenging, as over-sintering or under-sintering can significantly affect the magnetic properties and mechanical strength of the magnets.
Below is a comprehensive comparison of the four mainstream permanent magnets—Alnico, Ferrite, Neodymium Iron Boron (NdFeB), and Samarium Cobalt (SmCo)—covering their core properties, costs, temperature resistance, and application scenarios:

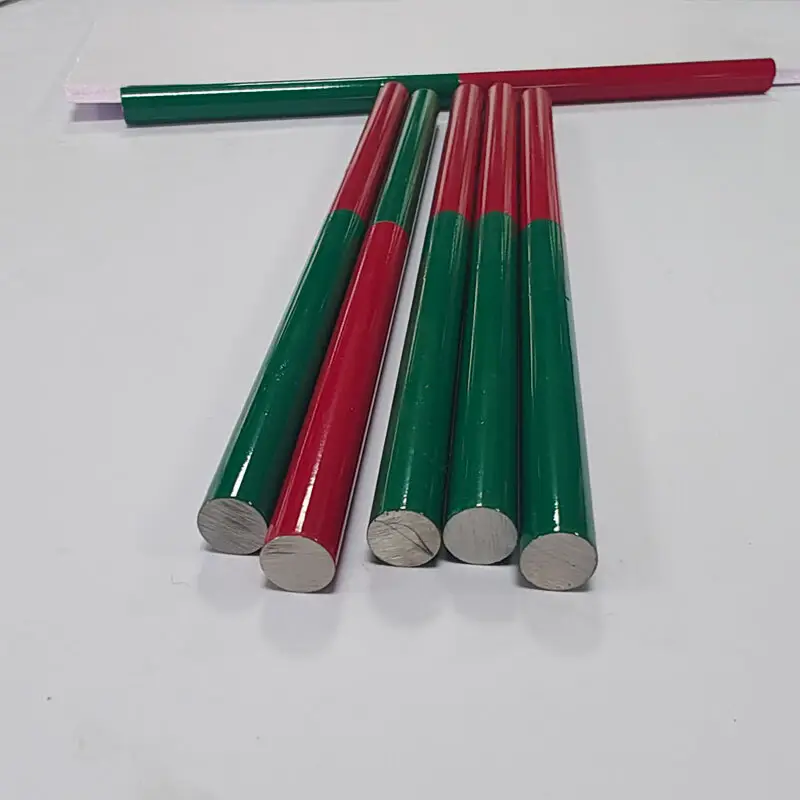

1. Alnico Magnets
Core Properties:
Composition: Aluminum (Al), Nickel (Ni), Cobalt (Co), Iron (Fe), and trace elements (e.g., copper, titanium).
Magnetic Performance:
Remanence (Br): 0.6–1.3 T (moderate).
Coercivity (Hc): 50–150 kA/m (low, prone to demagnetization).
Maximum Energy Product (BHmax): 5–50 kJ/m³ (low to moderate).
Temperature Stability:
Low reversible temperature coefficient: -0.02%/°C.
Operating Temperature: Up to 600°C (highest among permanent magnets).
Cost:
Moderate: Cheaper than SmCo and NdFeB but more expensive than ferrite.
Economical for high-temperature applications due to durability.
Temperature Resistance:
Exceptional: Maintains stability at temperatures exceeding 500°C, with a Curie temperature of ~850°C.
Application Scenarios:
High-Temperature Environments: Sensors, meters, and instruments requiring stable performance above 300°C.
Aerospace: Actuators and motors in jet engines or spacecraft.
Electric Guitars: Pickups (due to low coercivity and warm tonal characteristics).
Magnetic Teaching Aids and Crafts: Low magnetic strength suits safe, interactive applications.
2. Ferrite Magnets
Core Properties:
Composition: Strontium (Sr) or Barium (Ba) ferrite (SrFe₁₂O₁₉ or BaFe₁₂O₁₉).
Magnetic Performance:
Remanence (Br): 0.2–0.4 T (low).
Coercivity (Hc): 150–300 kA/m (moderate).
Maximum Energy Product (BHmax): 10–40 kJ/m³ (low).
Temperature Stability:
High Curie Temperature: ~450°C.
Stable across wide temperature ranges (-40°C to 250°C).
Cost:
Lowest: Abundant raw materials (Fe₂O₃) and simple manufacturing reduce costs.
Cost-effective for mass-produced consumer goods.
Temperature Resistance:
Good: Resistant to thermal degradation but may lose magnetism near Curie temperature.
Application Scenarios:
Consumer Electronics: Speakers, microphones, and refrigerator door seals.
Automotive: Motors, sensors, and alternators.
Power Supplies: Transformers and inductors (due to high electrical resistance).
Magnetic Closures: Cabinets, toys, and crafts (low cost and safety).
3. Neodymium Iron Boron (NdFeB) Magnets
Core Properties:
Composition: Neodymium (Nd), Iron (Fe), Boron (B), and trace elements (e.g., dysprosium for temperature stability).
Magnetic Performance:
Remanence (Br): 1.0–1.4 T (highest).
Coercivity (Hc): >1000 kA/m (high resistance to demagnetization).
Maximum Energy Product (BHmax): 280–550 kJ/m³ (highest, up to 10× ferrite).
Temperature Stability:
Moderate: Operating temperature up to 220°C (standard grades); high-temperature grades (e.g., N52SH) tolerate 250°C.
Curie Temperature: ~320–460°C.
Cost:
High: Rare-earth elements (Nd, Dy) increase cost, but cheaper than SmCo.
Cost-performance balance: Strongest magnet per unit volume.
Temperature Resistance:
Limited: Performance degrades above 150°C unless specially stabilized.
Application Scenarios:
Electric Vehicles (EVs): Traction motors, EPS (Electric Power Steering), and regenerative braking.
Wind Turbines: Direct-drive generators (high efficiency and compact size).
Consumer Electronics: Smartphones, headphones, and vibration motors.
Medical Devices: MRI machines (compact, high-field magnets).
Robotics: High-precision servo motors.
4. Samarium Cobalt (SmCo) Magnets
Core Properties:
Composition: Samarium (Sm), Cobalt (Co), and trace elements (e.g., iron, copper, zirconium).
Magnetic Performance:
Remanence (Br): 0.8–1.1 T (high).
Coercivity (Hc): 400–800 kA/m (high resistance to demagnetization).
Maximum Energy Product (BHmax): 160–320 kJ/m³ (moderate to high).
Temperature Stability:
Excellent: Operating temperature up to 350°C (2:17 type); some grades tolerate 500°C.
Curie Temperature: ~700–850°C.
Cost:
Highest: Rare-earth elements (Sm, Co) and complex manufacturing drive costs.
Justified for extreme environments where NdFeB fails.
Temperature Resistance:
Superior: Maintains performance at temperatures where NdFeB degrades.
Application Scenarios:
Aerospace: Satellite actuators, missile guidance systems, and jet engine sensors.
Military: High-temperature motors and underwater equipment.
Medical: MRI machines (alternative to NdFeB for high-temperature stability).
Industrial: High-performance motors, generators, and oil/gas drilling equipment.
Comparative Summary
Parameter
Alnico
Ferrite
NdFeB
SmCo
Remanence (Br)
0.6–1.3 T
0.2–0.4 T
1.0–1.4 T
0.8–1.1 T
Coercivity (Hc)
50–150 kA/m
150–300 kA/m
>1000 kA/m
400–800 kA/m
BHmax
5–50 kJ/m³
10–40 kJ/m³
280–550 kJ/m³
160–320 kJ/m³
Max Temp
600°C
250°C
220–250°C
350–500°C
Cost
Moderate
Lowest
High
Highest
Key Advantage
High-temp stability
Low cost
Highest energy density
Extreme temp stability
Selection Guidelines
Low Magnetic Strength, High Temperature: Choose Alnico (e.g., sensors, crafts).
Cost-Sensitive, General-Purpose: Opt for ferrite (e.g., consumer electronics, automotive).
Highest Magnetic Strength, Compact Size: Use NdFeB (e.g., EVs, wind turbines, robotics).
Extreme Temperature/Corrosion Resistance: Select SmCo (e.g., aerospace, military, medical).
This comparison highlights the trade-offs between magnetic performance, cost, and temperature resistance, enabling informed decisions across industries.
