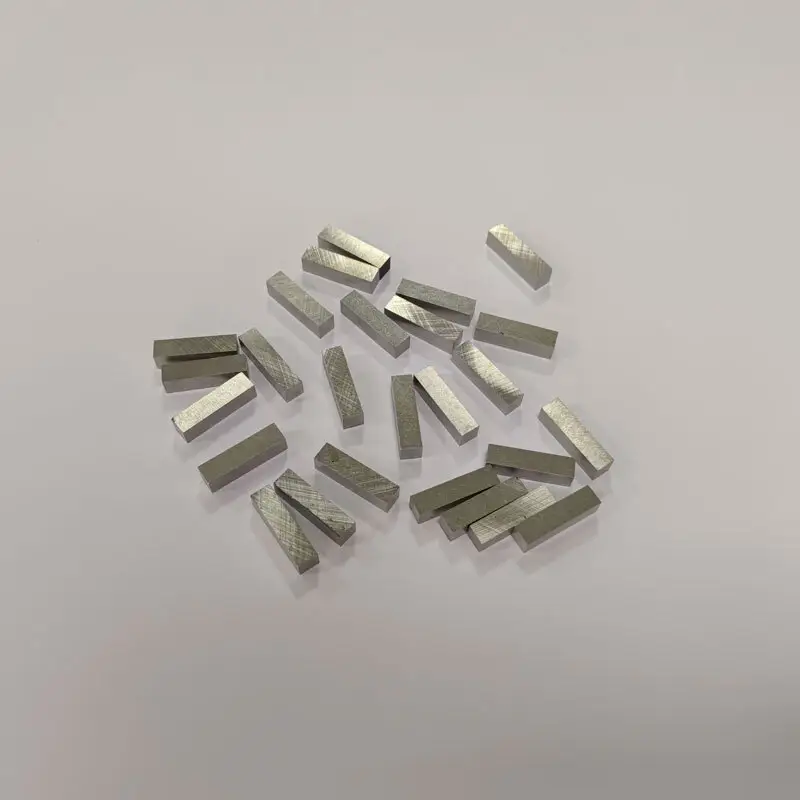

Hot Selling Alnico Bar

1. Introduction
Sintered Alnico magnets, composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), iron (Fe), and copper (Cu), are renowned for their high magnetic stability and corrosion resistance. However, the homogeneity of powder raw material composition significantly impacts the final magnet performance, with element burnout during melting being a critical factor. This analysis identifies the element with the highest burnout rate and proposes strategies to mitigate losses.

2. Element Burnout Rates in Alnico Melting
2.1 Burnout Mechanisms
Element burnout occurs due to oxidation, volatilization, and chemical reactions with furnace linings or atmospheric gases. The extent of burnout depends on:


Element reactivity: Elements with high affinity for oxygen (e.g., Al, Mg) are more prone to oxidation.
Melting temperature: Higher temperatures accelerate oxidation and volatilization.
Furnace type: Induction furnaces generally exhibit lower burnout rates than gas-fired furnaces due to reduced oxygen exposure.
Furnace atmosphere: Oxidizing atmospheres exacerbate burnout, while inert or reducing atmospheres minimize it.

2.2 Burnout Rates of Key Elements
Based on industrial data and literature, the approximate burnout rates for major elements in Alnico alloys are:


Aluminum (Al): 1.0–3.0%Aluminum forms a protective oxide layer (Al₂O₃) at high temperatures, but prolonged exposure to oxidizing atmospheres or excessive stirring can disrupt this layer, increasing burnout.
Nickel (Ni): 0.5–1.0%Nickel is relatively stable but can oxidize at high temperatures, especially in the presence of sulfur or other reactive elements.
Cobalt (Co): 0.3–0.8%Cobalt has low volatility and oxidation tendency, making it one of the most stable elements in Alnico alloys.
Iron (Fe): 0.5–1.5%Iron can oxidize, but its burnout rate is typically lower than that of aluminum due to its lower reactivity.
Copper (Cu): 0.5–2.0%Copper is prone to volatilization at high temperatures, especially in gas-fired furnaces, but its burnout rate is generally lower than aluminum's.

Highest Burnout Rate: Aluminum (Al)
Aluminum exhibits the highest burnout rate due to its high reactivity with oxygen and its tendency to form volatile oxides at elevated temperatures. This makes it the most critical element to control during Alnico melting.

3. Strategies to Control Element Burnout
3.1 Furnace Selection and Atmosphere Control

Induction Furnaces: Prefer induction furnaces over gas-fired furnaces, as they provide better temperature control and reduce oxygen exposure, minimizing oxidation.
Inert or Reducing Atmospheres: Use argon or nitrogen atmospheres to suppress oxidation. For gas-fired furnaces, employ fluxing agents to create a protective layer on the melt surface.
Sealed Furnace Design: Ensure the furnace is well-sealed to prevent air ingress, which can accelerate oxidation.

3.2 Process Optimization

Low-Temperature Melting: Melt at the lowest possible temperature to reduce oxidation and volatilization. For Alnico alloys, this typically means melting just above the liquidus temperature.
Short Melting Time: Minimize the time the melt is exposed to high temperatures by optimizing charging and melting sequences.
Controlled Stirring: Avoid excessive stirring, which can disrupt the protective oxide layer on the melt surface and increase burnout. Use electromagnetic stirring instead of mechanical stirring where possible.
Rapid Solidification: After melting, cool the alloy rapidly to minimize the time available for oxidation and segregation.

3.3 Raw Material Management

High-Purity Charges: Use high-purity raw materials to reduce impurities that can catalyze oxidation or form low-melting-point phases that increase burnout.
Pre-Alloyed Powders: Use pre-alloyed powders instead of elemental blends to ensure uniform composition and reduce segregation during melting.
Proper Charging Sequence: Charge less reactive elements first, followed by more reactive ones, to minimize localized oxidation. For example, charge Fe, Ni, and Co before adding Al and Cu.

3.4 Fluxing and Degasification

Fluxing Agents: Add fluxing agents (e.g., chlorides or fluorides) to remove impurities and form a protective slag layer on the melt surface, reducing oxidation.
Degasification: Use vacuum or inert gas purging to remove dissolved gases (e.g., hydrogen) that can promote oxidation or porosity in the final magnet.

3.5 Recycling and Waste Management

Scrap Recycling: Recycle process scrap (e.g., runners, gates, and defective castings) to reduce raw material costs and minimize burnout. However, ensure scrap is clean and free of contaminants that could increase burnout during remelting.
Slag Management: Properly manage slag to recover entrapped metal and minimize losses. Use slag rakes or magnetic separators to separate metal from slag.

4. Case Study: Reducing Aluminum Burnout in Alnico Production
A manufacturer of sintered Alnico magnets reported an aluminum burnout rate of 2.5% during gas-fired furnace melting, leading to inconsistent composition and reduced magnetic properties. To address this, the following measures were implemented:


Furnace Upgrade: Replaced the gas-fired furnace with an induction furnace, reducing the aluminum burnout rate to 1.2%.
Atmosphere Control: Introduced an argon atmosphere during melting, further reducing burnout to 0.8%.
Process Optimization: Optimized the charging sequence and melting time, reducing the total melt exposure time by 20%.
Fluxing: Added a chloride-based flux to form a protective slag layer, minimizing aluminum oxidation.

Results:


Aluminum burnout rate reduced from 2.5% to 0.5%.
Magnet coercivity increased by 15% due to improved composition homogeneity.
Overall process efficiency improved, reducing production costs by 10%.

5. Conclusion
Aluminum exhibits the highest burnout rate among key elements in Alnico alloys due to its high reactivity with oxygen and tendency to form volatile oxides. To control burnout and ensure composition homogeneity, manufacturers should:


Use induction furnaces with inert or reducing atmospheres.
Optimize melting processes to minimize temperature and time exposure.
Manage raw materials and scrap recycling effectively.
Employ fluxing and degasification techniques to protect the melt surface.

By implementing these strategies, manufacturers can significantly reduce element burnout, improve the homogeneity of powder raw materials, and enhance the magnetic properties of sintered Alnico magnets.

1. Introduction to AlNiCo Alloys
Aluminum-Nickel-Cobalt (AlNiCo) permanent magnets, composed primarily of iron (Fe), aluminum (Al), nickel (Ni), and cobalt (Co), with minor additions of copper (Cu) and titanium (Ti), are renowned for their exceptional temperature stability (-250°C to 600°C), corrosion resistance, and consistent magnetic performance. These properties make them indispensable in aerospace, automotive sensors, high-end audio equipment, and military applications. The melting process is critical for achieving the desired microstructure and magnetic properties, with temperature control being a decisive factor.

2. Optimal Melting Temperature Range for AlNiCo
The melting temperature range for AlNiCo alloys is typically 1200°C–1300°C, depending on the specific composition and intended application. This range ensures:


Complete dissolution of alloying elements: Ni, Co, and Cu dissolve uniformly into the Fe-Al matrix, avoiding segregation.
Formation of a homogeneous liquid phase: Critical for achieving uniform grain structure during solidification.
Minimization of oxide formation: Excessive temperatures (>1300°C) accelerate oxidation, while insufficient temperatures (<1200°C) hinder element dissolution.

Key Considerations:


Cast AlNiCo: Requires precise temperature control during directional solidification (e.g., 1220°C–1260°C for AlNiCo 8) to align columnar grains under a magnetic field, enhancing anisotropy.
Sintered AlNiCo: Sintering temperatures (1200°C–1300°C) must promote liquid-phase sintering for densification without excessive grain growth.

3. Defects Caused by Excessive Melting Temperature
3.1 Oxidation and Gas Absorption


Mechanism: High temperatures (>1300°C) accelerate reactions between molten AlNiCo and atmospheric oxygen (O₂) or water vapor (H₂O), forming oxides (e.g., Al₂O₃, NiO) and absorbing hydrogen (H), leading to porosity.
Impact:

Surface oxidation: Forms a brittle oxide layer, reducing mechanical strength and magnetic performance.
Internal porosity: Hydrogen bubbles trapped during solidification create voids, degrading density and coercivity (Hc).
Example: AlNiCo 5 exposed to 1350°C shows a 20% increase in porosity compared to 1250°C, reducing BHmax by 15%.



3.2 Grain Coarsening


Mechanism: Prolonged exposure to high temperatures promotes excessive grain growth via Ostwald ripening, where smaller grains dissolve and redeposit onto larger ones.
Impact:

Reduced mechanical strength: Coarse grains lower yield strength and fracture toughness.
Diminished magnetic anisotropy: Large grains disrupt the alignment of magnetic domains, lowering remanence (Br) and energy product (BHmax).
Example: Grain size in AlNiCo 8 increases from 50 μm (1250°C) to 200 μm (1350°C), reducing Br by 10%.



3.3 Element Evaporation and Segregation


Mechanism: Volatile elements (e.g., Co, Cu) evaporate at temperatures >1300°C, altering the alloy composition.
Impact:

Compositional inhomogeneity: Segregation of Ni-rich phases at grain boundaries weakens interfacial bonding.
Reduced coercivity: Evaporation of Co lowers the magnetocrystalline anisotropy, critical for high Hc.
Example: AlNiCo 5 loses 5% Co at 1300°C, reducing Hc by 20 kA/m.



3.4 Thermal Stress and Cracking


Mechanism: Rapid cooling from high temperatures induces thermal gradients, causing internal stresses.
Impact:

Microcracking: Stresses exceed the material’s fracture toughness, leading to crack propagation.
Dimensional instability: Warping or distortion affects component fit and functionality.
Example: AlNiCo 9 castings cooled from 1350°C exhibit 30% higher crack density than those cooled from 1250°C.



4. Defects Caused by Insufficient Melting Temperature
4.1 Incomplete Dissolution of Alloying Elements


Mechanism: Temperatures <1200°C fail to dissolve Ni, Co, and Cu fully, leaving undissolved phases.
Impact:

Segregation: Clustering of undissolved particles creates soft magnetic regions, reducing overall coercivity.
Non-uniform grain structure: Heterogeneous nucleation leads to a mix of fine and coarse grains, degrading magnetic anisotropy.
Example: AlNiCo 5 melted at 1150°C shows 15% undissolved Co particles, lowering BHmax by 10%.



4.2 Poor Fluidity and Casting Defects


Mechanism: Low viscosity at <1200°C impedes molten metal flow, causing incomplete mold filling.
Impact:

Cold shuts: Discontinuities in the casting where molten metal fails to merge.
Misruns: Incomplete filling of mold cavities, resulting in undersized components.
Example: AlNiCo 8 cast at 1180°C exhibits a 25% higher defect rate (cold shuts) than at 1250°C.



4.3 Inadequate Densification in Sintering


Mechanism: Insufficient temperature (<1200°C) prevents full liquid-phase sintering, leaving porosity.
Impact:

Low density: Reduces magnetic flux density and mechanical strength.
Weak grain boundaries: Poor bonding between particles lowers fracture toughness.
Example: Sintered AlNiCo 5 at 1150°C achieves 95% theoretical density vs. 99% at 1250°C, reducing Br by 8%.



4.4 Suboptimal Heat Treatment Response


Mechanism: Low melting temperatures result in incomplete homogenization, affecting subsequent aging.
Impact:

Reduced precipitation hardening: Insufficient nucleation sites for fine α₁ phases during aging.
Lower coercivity: Coarse precipitates are less effective at pinning domain walls.
Example: AlNiCo 5 melted at 1180°C shows a 30% lower Hc after aging compared to 1250°C melting.



5. Case Study: Temperature Optimization in AlNiCo 8 Production
Objective: Maximize BHmax (35–50 kJ/m³) for aerospace actuators.

Process:


Melting: AlNiCo 8 (24% Co, 14% Ni, 8% Al, 3% Cu, 1% Ti) melted at 1250°C (vs. conventional 1220°C).
Solidification: Directional cooling under a 1.5 T magnetic field.
Heat Treatment: Aging at 850°C for 24 hours.

Results:


Grain size: 80 μm (vs. 120 μm at 1220°C).
BHmax: 48 kJ/m³ (vs. 42 kJ/m³ at 1220°C).
Porosity: 0.5% (vs. 2% at 1220°C).

Conclusion: Raising the melting temperature to 1250°C improved homogeneity, reduced porosity, and enhanced magnetic performance.

6. Best Practices for Temperature Control

Precision Instruments: Use thermocouples or pyrometers for real-time monitoring (±5°C accuracy).
Atmosphere Control: Employ vacuum or inert gas (Ar/N₂) to minimize oxidation.
Gradient Heating: Ramp temperatures at 2–4°C/min to avoid thermal shock.
Post-Melting Treatments:

Degassing: Remove absorbed gases via vacuum pumping or flux injection.
Stirring: Electromagnetic stirring ensures uniform composition.


Process Validation: Conduct X-ray diffraction (XRD) and scanning electron microscopy (SEM) to verify microstructure.

7. Conclusion
The optimal melting temperature range for AlNiCo alloys is 1200°C–1300°C, balancing element dissolution, oxidation control, and grain refinement. Excessive temperatures (>1300°C) induce oxidation, grain coarsening, and element evaporation, while insufficient temperatures (<1200°C) cause incomplete dissolution, poor fluidity, and inadequate densification. By adhering to precise temperature protocols and implementing advanced control measures, manufacturers can produce AlNiCo magnets with superior magnetic properties and reliability, meeting the stringent demands of high-performance applications.

























什么是温度过高或过低?
这些工艺缺陷会对磁唱片造成什么影响吗?
请简要描述铝镍钴合金的性能。











铝镍钴熔炼的最佳温度区间是多少，温度过高 / 过低分别会产生什么工艺缺陷？ 3000 words in English


















参考8个网页







Comparative Analysis of Sintered AlNiCo and Cast AlNiCo: Process Differences and Coexistence Rationale
1. Introduction to AlNiCo Permanent Magnets
Aluminum-Nickel-Cobalt (AlNiCo) permanent magnets, first developed in the 1930s, are among the earliest high-performance magnetic materials. Composed primarily of iron (Fe), aluminum (Al), nickel (Ni), and cobalt (Co), with minor additions of copper (Cu) and titanium (Ti), AlNiCo magnets are renowned for their exceptional temperature stability (operating range: -250°C to 600°C), corrosion resistance, and consistent magnetic performance. These properties make them indispensable in aerospace, automotive sensors, high-end audio equipment, and military applications.

AlNiCo magnets are manufactured using two distinct processes: casting and sintering. Each method yields magnets with unique characteristics, enabling their coexistence in diverse industrial applications. This analysis explores the core differences between these processes and explains why both remain relevant despite technological advancements.

2. Cast AlNiCo: Process Flow and Core Characteristics
2.1 Production Process Flow

Raw Material Preparation:

High-purity metals (e.g., electrolytic nickel, cobalt, copper) are weighed precisely to achieve the desired alloy composition (typically Fe: 50–65%, Al: 8–12%, Ni: 13–24%, Co: 15–28%, with trace Ti/Cu for grain refinement).


Melting and Alloying:

Batched materials are melted in an induction furnace under an inert atmosphere (e.g., argon) at 1600–1650°C to ensure homogeneity. Degassing and slag removal eliminate impurities.


Directional Solidification (Casting):

Molten alloy is poured into preheated sand or ceramic molds designed for the target shape (e.g., rods, rings, complex geometries).
Key Innovation: For anisotropic magnets, the mold is cooled slowly under a strong magnetic field (0.5–2 Tesla) to align columnar grains, enhancing magnetic anisotropy. This step is critical for achieving high coercivity (Hc) and remanence (Br).


Heat Treatment:

Solution Annealing: The cast magnet is heated to 1200–1250°C for 4–8 hours to dissolve secondary phases.
Aging (Precipitation Hardening): Slow cooling to 800–900°C, followed by a 20–40-hour hold, precipitates fine α₁ phases, boosting coercivity by 30–50%.


Mechanical Processing:

Diamond tools grind the magnet to final dimensions with tight tolerances (±0.05 mm). Surface treatments (e.g., nickel plating) are optional due to inherent corrosion resistance.


Magnetization:

A pulsed magnetic field (1–5 Tesla) aligns domains permanently. Final inspection ensures compliance with specifications (e.g., Br ≥ 1.2 T, Hc ≥ 160 kA/m).



2.2 Core Advantages of Cast AlNiCo

Superior Magnetic Performance: Anisotropic casting yields magnets with higher Br (1.0–1.35 T) and BHmax (5–11 MG·Oe) compared to sintered variants.
Complex Geometries: Casting accommodates large, intricate shapes (e.g., aerodynamic components for aerospace).
Temperature Stability: Low reversible temperature coefficient (≤0.02%/°C) ensures minimal performance drift over wide temperature ranges.
Cost-Effectiveness for Large Batches: Scalable for high-volume production of standardized shapes (e.g., automotive sensors).

2.3 Limitations of Cast AlNiCo

Brittleness: Hard and brittle nature restricts post-processing to grinding/EDM, increasing production costs for complex parts.
Longer Lead Times: Multi-step heat treatment and solidification require 1–2 weeks per batch.
Material Waste: Excess material from grinding contributes to higher raw material costs.

3. Sintered AlNiCo: Process Flow and Core Characteristics
3.1 Production Process Flow

Raw Material Preparation:

High-purity powders (Fe, Al, Ni, Co) are blended with binders (e.g., polyethylene glycol) to form homogeneous mixtures.


Powder Compaction:

The mixture is pressed into green compacts using hydraulic presses (pressure: 500–1000 MPa) to achieve near-net shapes (e.g., small cylinders, discs).


Sintering:

Compacts are heated to 1200–1300°C in a vacuum or hydrogen atmosphere for 2–4 hours. Liquid-phase sintering densifies the material, achieving ≥98% theoretical density.


Heat Treatment:

Similar to casting, sintered magnets undergo solution annealing and aging to optimize magnetic properties, though with slightly lower coercivity (Hc ≈ 120–150 kA/m).


Mechanical Processing:

Minimal grinding is required due to tight dimensional tolerances achieved during pressing (±0.02 mm).


Magnetization and Inspection:

Final magnetization and quality checks ensure compliance with specifications.



3.2 Core Advantages of Sintered AlNiCo

Precision and Uniformity: Powder metallurgy enables production of small, complex parts (e.g., micro-sensors) with consistent properties.
Reduced Material Waste: Near-net shape forming minimizes post-processing scrap.
Shorter Lead Times: Sintering cycles (24–48 hours) are faster than casting.
Improved Mechanical Strength: Sintered magnets exhibit higher fracture toughness (≈2–3 MPa·m¹/²) compared to cast variants (≈1–1.5 MPa·m¹/²).

3.3 Limitations of Sintered AlNiCo

Lower Magnetic Performance: Anisotropic sintered magnets achieve BHmax values (3–5 MG·Oe) 30–50% lower than cast counterparts due to less pronounced grain alignment.
Size Constraints: Limited to smaller dimensions (typically <50 mm) due to compaction pressure limitations.
Higher Tooling Costs: Custom dies for pressing increase setup expenses for low-volume production.

4. Core Process Differences: Casting vs. Sintering




Parameter
Cast AlNiCo
Sintered AlNiCo




Material State
Liquid-phase processing
Solid-state powder compaction


Grain Structure
Columnar, aligned via magnetic field
Equiaxed, less aligned


Magnetic Anisotropy
High (anisotropic)
Moderate (anisotropic/isotropic variants)


Dimensional Tolerances
±0.1–0.2 mm (post-grinding)
±0.02–0.05 mm (post-pressing)


Production Cycle Time
1–2 weeks
2–5 days


Material Utilization
60–70% (after grinding)
90–95% (near-net shape)


Typical Applications
Aerospace, automotive, high-power sensors
Electronics, medical devices, micro-motors




5. Rationale for Long-Term Coexistence
5.1 Complementary Magnetic Performance

Cast AlNiCo: Dominates in high-performance applications requiring maximum energy product (e.g., aerospace actuators, military guidance systems).
Sintered AlNiCo: Preferred for cost-sensitive, precision-driven markets (e.g., automotive ABS sensors, consumer electronics) where moderate magnetic output suffices.

5.2 Design Flexibility

Casting: Enables large, custom shapes (e.g., aerodynamic housings) impossible to produce via sintering.
Sintering: Facilitates miniaturization (e.g., micro-motors for hearing aids) and integration with other components (e.g., embedded sensors).

5.3 Cost Dynamics

High-Volume Production: Casting becomes cost-effective for standardized large parts (e.g., 10,000+ units/year).
Low-Volume, High-Mix Production: Sintering reduces tooling costs for diverse small parts (e.g., 100–1,000 units/variant).

5.4 Technological Advancements

Casting Innovations: Additive manufacturing (e.g., 3D-printed molds) and advanced solidification control (e.g., electromagnetic stirring) enhance grain alignment and reduce defects.
Sintering Innovations: High-pressure compaction (e.g., warm isostatic pressing) and rapid sintering (e.g, spark plasma sintering) improve density and magnetic properties, narrowing the performance gap with casting.

5.5 Market Segmentation

Legacy Applications: Cast AlNiCo remains entrenched in industries with stringent temperature stability requirements (e.g., oil & gas downhole tools).
Emerging Markets: Sintered AlNiCo captures growth in IoT devices, wearables, and electric vehicles, where miniaturization and cost are critical.

6. Future Outlook
Both processes will coexist, driven by:


Niche Demand: Casting for ultra-high-performance, large-scale applications; sintering for precision, cost-sensitive niches.
Hybrid Approaches: Combining casting (for bulk) with sintering (for inserts) to optimize performance and cost.
Material Innovations: Development of low-cobalt AlNiCo alloys to reduce reliance on scarce resources while maintaining performance.

7. Conclusion
The coexistence of cast and sintered AlNiCo magnets is rooted in their complementary strengths: casting excels in magnetic performance and geometric complexity, while sintering offers precision, cost efficiency, and scalability for smaller parts. As industries demand both high-performance and miniaturized solutions, these processes will continue to evolve, ensuring AlNiCo’s relevance in the era of advanced magnetics. Manufacturers must strategically select the optimal process based on application requirements, balancing performance, cost, and production feasibility to maintain competitiveness in global markets.

































烧结铝镍钴与铸造铝镍钴的工艺核心差异，为什么两种工艺会长期共存？ 3000 words in English


















参考6个网页







Comprehensive Production Process Flow and Core Process Prioritization for Cast AlNiCo Permanent Magnets
1. Introduction to Cast AlNiCo
Cast AlNiCo (Aluminum-Nickel-Cobalt) is a classic permanent magnet material known for its excellent temperature stability, corrosion resistance, and consistent magnetic performance across a wide temperature range (-250°C to 500°C). It is widely used in aerospace, automotive sensors, high-end audio equipment, and military applications. Unlike sintered AlNiCo, cast AlNiCo excels in producing large, complex-shaped magnets with superior dimensional accuracy and surface finish.

2. Complete Production Process Flow
The production of cast AlNiCo involves multiple interconnected stages, each critical to achieving the desired magnetic properties and mechanical integrity. The process flow is as follows:

2.1 Raw Material Preparation

Composition Design: AlNiCo alloys typically consist of:

Iron (Fe): Balance (50-65%)
Aluminum (Al): 8-12%
Nickel (Ni): 13-24%
Cobalt (Co): 15-28%
Minor Additives: Copper (Cu), titanium (Ti), sulfur (S), etc., to refine grain structure and enhance magnetic properties.


Material Selection: High-purity metals (e.g., electrolytic nickel, cobalt, copper) are used to minimize impurities that could degrade magnetic performance.
Batching: Raw materials are weighed precisely according to the alloy formula to ensure chemical consistency.

2.2 Melting and Alloying

Induction Furnace Melting: The batched materials are loaded into a graphite or magnesium oxide crucible and melted in an induction furnace under an inert atmosphere (e.g., argon) to prevent oxidation.
Temperature Control: The melting temperature is maintained at 1600–1650°C to ensure complete homogenization of the alloy.
Refining: Degassing and slag removal are performed to eliminate inclusions and gas bubbles that could cause defects.

2.3 Directional Solidification (Casting)

Mold Preparation: Sand or ceramic molds are designed to accommodate the desired magnet shape. For anisotropic magnets, molds incorporate magnetic field orientation features.
Pouring: The molten alloy is poured into the preheated mold at a controlled rate to avoid turbulence and ensure uniform filling.
Directional Solidification: The mold is cooled slowly from one end to the other under a strong magnetic field (for anisotropic magnets) to align the columnar grains, enhancing magnetic anisotropy. This step is critical for achieving high coercivity and remanence.

2.4 Heat Treatment

Solution Annealing: The cast magnet is heated to 1200–1250°C for several hours to dissolve secondary phases and homogenize the microstructure.
Aging (Precipitation Hardening): The magnet is cooled slowly to 800–900°C and held for an extended period (20–40 hours) to precipitate fine α₁ phases, which significantly improve coercivity and remanence.
Quenching (Optional): For some grades, rapid cooling from the aging temperature may be employed to lock in the microstructure.

2.5 Magnetic Property Testing

Demagnetization Curve Measurement: The magnet’s remanence (Br), coercivity (Hc), and maximum energy product (BHmax) are measured using a hysteresis loop tracer.
Quality Control: Magnets that fail to meet specifications are rejected or reprocessed.

2.6 Mechanical Processing

Cutting and Grinding: Diamond tools are used to cut the magnet to final dimensions and grind surfaces to tight tolerances.
Surface Treatment: Magnets may be coated (e.g., nickel plating) for corrosion resistance, though AlNiCo’s inherent corrosion resistance often makes this unnecessary.

2.7 Magnetization

Pulse Magnetization: The magnet is exposed to a strong pulsed magnetic field (1–5 Tesla) to align its domains permanently.
Final Inspection: Magnets are checked for dimensional accuracy, surface defects, and magnetic performance before packaging.

3. Core Process Prioritization
The production of cast AlNiCo involves several critical processes, but some have a more significant impact on final performance and must be prioritized:

3.1 Directional Solidification (Casting)

Priority: Highest
Rationale: The alignment of columnar grains during solidification determines the magnet’s anisotropy. Poor solidification control leads to misaligned grains, reducing coercivity and remanence by up to 50%.
Key Parameters:

Mold design (for magnetic field orientation)
Pouring temperature and rate
Cooling gradient control



3.2 Heat Treatment (Aging)

Priority: Second Highest
Rationale: Aging precipitates the α₁ phase, which is responsible for 70–80% of the magnet’s coercivity. Incorrect aging temperature or time can result in insufficient precipitation or coarse grains, degrading performance.
Key Parameters:

Aging temperature (800–900°C)
Holding time (20–40 hours)
Cooling rate



3.3 Raw Material Purity and Batching

Priority: High
Rationale: Impurities (e.g., oxygen, carbon) can form non-magnetic phases that reduce effective magnetic volume. Even 0.1% impurities can degrade BHmax by 10–15%.
Key Parameters:

Use of high-purity metals (e.g., 99.9% Ni, Co)
Precise weighing (±0.01% tolerance)



3.4 Melting and Refining

Priority: Moderate
Rationale: While melting ensures homogeneity, modern induction furnaces with inert atmospheres minimize oxidation and inclusion formation. However, poor melting practices can introduce defects.
Key Parameters:

Melting temperature (1600–1650°C)
Degassing and slag removal efficiency



3.5 Mechanical Processing

Priority: Lower
Rationale: While critical for dimensional accuracy, mechanical processing does not affect intrinsic magnetic properties if done correctly. However, excessive grinding can introduce surface damage, reducing coercivity locally.
Key Parameters:

Use of diamond tools
Minimal material removal per pass



4. Process Optimization Strategies
To enhance yield and performance, manufacturers often adopt the following strategies:


Advanced Solidification Control: Use of electromagnetic stirring or traveling magnetic fields to improve grain alignment.
Computerized Heat Treatment: Real-time monitoring of aging temperature and time to ensure consistency.
Statistical Process Control (SPC): Tracking key parameters (e.g., composition, solidification rate) to identify and correct deviations early.
Recycling of Scrap: Re-melting process scrap (e.g., runners, sprues) reduces costs, but careful control of impurity levels is essential.

5. Conclusion
The production of cast AlNiCo permanent magnets is a complex, multi-stage process where directional solidification and heat treatment are the most critical steps. By prioritizing these processes and maintaining strict control over raw material purity, melting, and mechanical processing, manufacturers can produce magnets with consistent, high-performance characteristics suitable for demanding applications in aerospace, automotive, and industrial sectors.

Alnico magnets, composed primarily of aluminum (Al), nickel (Ni), and cobalt (Co), have been a cornerstone in the field of permanent magnets for decades. They are known for their excellent temperature stability, high remanence, and good mechanical strength. Alnico magnets can be manufactured through two primary processes: casting and sintering. Each method yields magnets with distinct properties, making them suitable for different applications, particularly when considering size and precision requirements. Cast Alnico is typically used for larger magnets, while sintered Alnico is preferred for smaller, precision magnets. Understanding the application boundaries between these two forms involves examining their manufacturing processes, material properties, and the specific demands of various industries.

1. Manufacturing Processes
Cast Alnico:
The casting process involves melting the alnico alloy and pouring it into molds. After solidification, the magnets undergo heat treatment (annealing) to develop their magnetic properties. This process allows for the production of large and complex shapes. The casting method is relatively flexible in terms of the sizes and shapes that can be achieved, making it ideal for custom or large-scale components.

Sintered Alnico:
Sintering involves mixing alnico powders, pressing them into the desired shape, and then heating them below the melting point to bond the particles together. This process is more suitable for producing small, high-precision magnets with tight tolerances. The sintering process results in a finer microstructure, which can enhance certain magnetic properties, but it is generally less effective for creating large parts due to the limitations in pressing and sintering large volumes uniformly.

2. Material Properties
Cast Alnico:


Size and Shape Flexibility: Capable of producing large magnets, sometimes weighing several kilograms, with complex geometries.
Magnetic Properties: Cast alnico magnets typically have high remanence and energy product, but their coercivity is relatively low compared to sintered variants. This makes them more prone to demagnetization if not properly designed.
Temperature Stability: Excellent stability over a wide temperature range, which is beneficial in high-temperature applications.
Mechanical Strength: Good mechanical strength and toughness, allowing for machining and finishing after casting.

Sintered Alnico:


Precision and Tolerances: Ideal for small magnets requiring tight dimensional tolerances and complex shapes with high precision.
Magnetic Properties: Sintered alnico magnets often exhibit higher coercivity than cast magnets, making them more resistant to demagnetization. However, their energy product might be slightly lower due to the finer microstructure.
Temperature Stability: Also possesses good temperature stability, though the specific performance can vary based on the exact composition and sintering conditions.
Mechanical Strength: Generally more brittle than cast alnico, which can limit some machining options but is less of an issue for small parts.

3. Application Boundaries Based on Size
Large Magnets (Cast Alnico):


Electric Generators and Motors: In large-scale power generation and industrial motors, where substantial magnetic fields are required over large volumes, cast alnico magnets are advantageous. Their ability to be cast into large shapes with good magnetic properties makes them suitable for these applications.
Loudspeakers and Microphones: Some high-end audio equipment uses large cast alnico magnets for their consistent magnetic field and acoustic properties.
Sensors and Holding Devices: Applications requiring strong magnetic fields over a large area, such as certain types of sensors or magnetic chucks in machining, benefit from the size and field uniformity of cast alnico.

Small and Precision Magnets (Sintered Alnico):


Electronics and Miniaturized Devices: In consumer electronics, such as mobile phones, sensors, and other miniaturized devices, sintered alnico magnets are preferred due to their small size, precision, and consistent performance.
Medical Devices: Precision instruments like MRI machines or certain types of medical sensors utilize small sintered alnico magnets for their accuracy and reliability.
Automotive Sensors: Modern vehicles employ numerous sensors for functions like ABS, speed sensing, and position sensing, where small, precise magnets are essential.

4. Performance Considerations
Magnetic Field Requirements:


For applications requiring a strong and uniform magnetic field over a large area, cast alnico magnets are typically more suitable. Their larger size and casting flexibility allow for optimal field distribution.
In contrast, applications needing precise magnetic fields in a small area, such as in miniature motors or sensors, are better served by sintered alnico magnets. Their high coercivity and precision manufacturing ensure reliable performance.

Temperature and Environmental Factors:


Both cast and sintered alnico magnets offer good temperature stability, but the choice may depend on the specific operating environment. For high-temperature industrial settings, cast alnico's robustness and size might be advantageous. In more controlled environments, like laboratory equipment or electronics, sintered alnico's precision and smaller size could be preferable.

Cost and Manufacturing Efficiency:


Cast alnico magnets can be more cost-effective for large-scale production of big magnets, as the casting process is relatively straightforward for large volumes. However, for small, high-precision magnets, sintering offers better efficiency and lower waste, making it more economical despite potentially higher per-unit costs.

5. Industry-Specific Applications
Automotive Industry:


Cast Alnico: Used in larger components such as alternators or starters in vehicles, where robust and large magnets are necessary.
Sintered Alnico: Found in smaller, precision components like speed sensors, position sensors, and various control modules.

Aerospace and Defense:


Cast Alnico: Suitable for large motors and actuators in aircraft or defense equipment, where reliability and strong magnetic fields are critical.
Sintered Alnico: Used in navigation systems, communication devices, and other precision instrumentation where size and accuracy are paramount.

Consumer Electronics:


Cast Alnico: Less common due to the trend towards miniaturization, but may still be found in some high-fidelity audio equipment.
Sintered Alnico: Ubiquitous in small devices like smartphones, tablets, wearable tech, and other gadgets requiring compact, efficient magnets.

6. Future Trends and Developments
As technology advances, the demand for both large and small magnets continues to evolve. Innovations in material science may lead to improved alnico alloys that enhance the performance of both cast and sintered magnets. Additionally, advancements in manufacturing processes, such as additive manufacturing (3D printing) for magnets, could potentially blur the lines between casting and sintering, offering new possibilities for custom magnet production.

Conclusion
The application boundaries between cast and sintered alnico magnets are primarily defined by size, precision requirements, and specific performance needs. Cast alnico magnets excel in large-scale applications requiring robust magnetic fields and flexibility in shape, while sintered alnico magnets are the go-to choice for small, precision components where accuracy and consistency are critical. Understanding these distinctions allows engineers and designers to select the most appropriate magnet type for their specific application, ensuring optimal performance and efficiency. As industries continue to innovate, the role of alnico magnets, in both cast and sintered forms, will remain vital across a broad spectrum of technologies.

In high-temperature permanent magnet fields, Alnico and SmCo magnets are two crucial materials with distinct performance characteristics. This paper delves into their core competitive relationship, analyzing the selection criteria from multiple dimensions such as temperature stability, magnetic properties, cost-effectiveness, environmental adaptability, and application scenarios. Through a comprehensive comparison, it provides a scientific basis for engineers and designers to make informed decisions in practical applications.

1. Introduction
Permanent magnets play a vital role in various industrial and technological fields, especially in high-temperature environments where their performance directly affects the reliability and efficiency of equipment. Alnico and SmCo magnets, as representatives of high-temperature permanent magnets, have their own unique advantages and application scopes. Understanding their competitive relationship and selection criteria is of great significance for optimizing product design and improving system performance.

2. Overview of Alnico and SmCo Magnets
2.1 Alnico Magnets
Alnico magnets are an alloy permanent magnet material composed mainly of aluminum (Al), nickel (Ni), cobalt (Co), and iron (Fe), with small amounts of copper (Cu), titanium (Ti), and other elements. They were developed in the 1930s and were once the strongest permanent magnet materials before the emergence of rare-earth permanent magnets. Alnico magnets have high remanence (Br), low-temperature coefficient, and excellent thermal stability, with a Curie temperature as high as 850 - 890°C and a maximum operating temperature that can reach 450 - 600°C.

2.2 SmCo Magnets
SmCo magnets are a type of rare-earth permanent magnet material, mainly consisting of samarium (Sm), cobalt (Co), and small amounts of other rare-earth elements. There are two main types: SmCo5 (first-generation) and Sm2Co17 (second-generation). SmCo magnets have extremely high Curie temperatures (700 - 850°C), high coercivity, and excellent oxidation and corrosion resistance. They can operate effectively at temperatures up to 350 - 550°C and have a maximum magnetic energy product ((BH)max) ranging from 150 - 250 kJ/m³.

3. Core Competitive Relationship Between Alnico and SmCo Magnets
3.1 Temperature Stability Competition

Alnico Magnets: Alnico magnets exhibit exceptional temperature stability. Their reversible temperature coefficient is as low as -0.02%/°C, which means that the magnetic properties change very little with temperature fluctuations. This characteristic allows Alnico magnets to maintain relatively stable magnetic performance over a wide temperature range, especially in extreme high-temperature environments above 500°C. For example, in industrial furnaces and high-temperature sensors, Alnico magnets can continuously provide reliable magnetic fields without significant performance degradation.
SmCo Magnets: SmCo magnets also have good temperature stability, with a reversible temperature coefficient of around -0.035%/°C. Although the temperature coefficient is slightly higher than that of Alnico magnets, SmCo magnets can still maintain relatively stable magnetic properties within their operating temperature range of 350 - 550°C. However, when the temperature exceeds 350°C, the performance of SmCo magnets may start to decline more significantly compared to Alnico magnets.

3.2 Magnetic Property Competition

Remanence (Br): SmCo magnets generally have a higher remanence than Alnico magnets. The remanence of SmCo magnets can reach 0.85 - 1.15 Tesla, while that of Alnico magnets is around 0.7 - 0.75 Tesla. This means that under normal conditions, SmCo magnets can generate stronger magnetic fields, which is advantageous in applications requiring high magnetic field strength, such as precision motors and generators.
Coercivity (Hc): SmCo magnets have a much higher coercivity than Alnico magnets. The coercivity of SmCo magnets ranges from 600 - 820 kA/m, while that of Alnico magnets is only 40 - 60 kA/m. High coercivity enables SmCo magnets to better resist demagnetization caused by external magnetic fields or reverse magnetic fields, making them more suitable for applications in complex magnetic environments, such as magnetic separation equipment and high-precision sensors.
Maximum Magnetic Energy Product ((BH)max): The maximum magnetic energy product is an important indicator for evaluating the magnetic energy density of a magnet. SmCo magnets have a significantly higher (BH)max than Alnico magnets, with values ranging from 150 - 250 kJ/m³ for SmCo magnets and only 40 - 50 kJ/m³ for Alnico magnets. This indicates that SmCo magnets can store more magnetic energy per unit volume, allowing for the design of more compact and efficient magnetic components.

3.3 Cost-Effectiveness Competition

Raw Material Cost: Alnico magnets are composed of relatively common metal elements such as aluminum, nickel, and cobalt, and the raw materials are relatively easy to obtain, so their cost is relatively low. In contrast, SmCo magnets contain rare-earth elements such as samarium, which are scarce and have a complex supply chain. The price of rare-earth elements is often subject to market fluctuations, making the cost of SmCo magnets significantly higher than that of Alnico magnets, usually 2 - 3 times more expensive.
Manufacturing Cost: The manufacturing processes of Alnico and SmCo magnets also differ. Alnico magnets are mainly produced through casting or sintering followed by heat treatment, which has a relatively mature and stable process with lower manufacturing costs. SmCo magnets are produced using powder metallurgy technology, which requires precise control of process parameters during compaction and sintering, resulting in higher manufacturing costs.
Long-Term Cost-Effectiveness: Although Alnico magnets have a lower initial cost, their excellent temperature stability and long service life can reduce maintenance and replacement costs in the long run. SmCo magnets, despite their high initial cost, may be more cost-effective in applications where high magnetic performance and precise magnetic field control are required, as they can improve the overall performance and efficiency of the system.

3.4 Environmental Adaptability Competition

Corrosion Resistance: Both Alnico and SmCo magnets have good corrosion resistance. SmCo magnets have excellent oxidation and corrosion resistance due to their unique chemical composition and crystal structure, and they can maintain stable magnetic properties even in harsh chemical environments without the need for additional protective coatings. Alnico magnets also have moderate corrosion resistance, but they are more prone to oxidation compared to SmCo magnets. In long-term use, Alnico magnets may require protective treatments such as zinc plating or nickel-copper-nickel coating to enhance their corrosion resistance.
Mechanical Properties: Alnico magnets are hard and brittle, with low mechanical strength, and can only be processed by grinding or electrical discharge machining. They are not suitable for applications requiring high mechanical stress. SmCo magnets are also relatively hard and brittle, with lower bending strength, tensile strength, and compressive strength compared to some other magnetic materials. However, their excellent magnetic properties make up for this deficiency in certain applications.

4. Selection Criteria for Alnico and SmCo Magnets in High-Temperature Applications
4.1 Temperature Requirements

Extreme High-Temperature Environments (above 500°C): In applications where the operating temperature exceeds 500°C, such as in aerospace engines, high-temperature industrial furnaces, and nuclear power plants, Alnico magnets are the preferred choice due to their superior temperature stability and ability to maintain magnetic performance at high temperatures.
Medium High-Temperature Environments (350 - 550°C): For applications with operating temperatures in the range of 350 - 550°C, such as in high-temperature motors, generators, and sensors in the automotive and manufacturing industries, both Alnico and SmCo magnets can be considered. However, if high magnetic performance and precise magnetic field control are required, SmCo magnets may be more suitable despite their higher cost.
Low High-Temperature Environments (below 350°C): In applications with operating temperatures below 350°C, such as in some consumer electronics and general-purpose motors, other magnetic materials such as ferrite magnets or neodymium-iron-boron (NdFeB) magnets (with appropriate temperature ratings) may also be viable options, depending on the specific magnetic performance requirements.

4.2 Magnetic Performance Requirements

High Magnetic Field Strength: If the application requires a high magnetic field strength, SmCo magnets are a better choice due to their higher remanence. For example, in high-precision magnetic separation equipment and magnetic resonance imaging (MRI) systems, SmCo magnets can provide the necessary strong magnetic fields for efficient operation.
High Coercivity and Anti-Demagnetization Ability: In applications where the magnet is likely to be exposed to external magnetic fields or reverse magnetic fields, such as in magnetic couplers and magnetic bearings, SmCo magnets with their high coercivity can better resist demagnetization and ensure the stable operation of the system.
High Magnetic Energy Density: For applications where space is limited and a high magnetic energy density is required, such as in miniature motors and high-performance sensors, SmCo magnets with their high maximum magnetic energy product are more advantageous as they can achieve the desired magnetic performance with a smaller volume.

4.3 Cost Considerations

Initial Cost: If the project has strict budget constraints and the magnetic performance requirements can be met by Alnico magnets, then Alnico magnets are a more cost-effective choice due to their lower initial cost.
Long-Term Cost-Effectiveness: In applications where the magnet is required to have a long service life and low maintenance costs, such as in critical infrastructure and aerospace applications, the excellent temperature stability and durability of Alnico magnets may result in lower long-term costs despite their higher initial investment compared to some low-cost magnetic materials. On the other hand, if the application requires high magnetic performance and the improved system efficiency can offset the high initial cost of SmCo magnets, then SmCo magnets may be the more economical option in the long run.

4.4 Environmental Adaptability Requirements

Corrosive Environments: In applications where the magnet will be exposed to corrosive substances, such as in chemical processing plants or marine environments, SmCo magnets are a better choice due to their excellent corrosion resistance. If Alnico magnets are used in such environments, appropriate protective coatings must be applied to ensure their long-term stability.
Mechanical Stress Environments: If the application involves high mechanical stress, such as in vibrating or impact-prone equipment, the mechanical properties of the magnet need to be carefully considered. In some cases, a combination of a suitable magnet material and a robust mechanical design may be required to ensure the reliable operation of the system.

4.5 Application Scenarios

Aerospace and Defense: In aerospace and defense applications, where extreme operating conditions and high reliability are required, both Alnico and SmCo magnets have important applications. Alnico magnets are often used in high-temperature sensors, actuators, and navigation systems due to their excellent temperature stability. SmCo magnets are widely used in high-performance motors, generators, and magnetic guidance systems for their high magnetic performance and anti-demagnetization ability.
Automotive Industry: In the automotive industry, Alnico magnets are used in high-temperature areas of turbochargers and engine sensors, where their ability to withstand high temperatures is crucial. SmCo magnets are used in electric and hybrid vehicle motors, where high magnetic performance and efficiency are essential for improving vehicle performance and range.
Industrial Manufacturing: In industrial manufacturing, Alnico magnets are suitable for high-temperature industrial furnaces, heat treatment equipment, and high-temperature sensors. SmCo magnets are used in precision manufacturing equipment, such as high-speed spindles and robotic arms, where high magnetic performance and precise control are required.

5. Conclusion
In the high-temperature permanent magnet field, Alnico and SmCo magnets have their own unique competitive advantages. Alnico magnets excel in extreme high-temperature environments, cost-effectiveness, and long-term stability, while SmCo magnets offer superior magnetic performance, anti-demagnetization ability, and corrosion resistance. When selecting between Alnico and SmCo magnets for high-temperature applications, a comprehensive consideration of factors such as temperature requirements, magnetic performance requirements, cost, environmental adaptability, and application scenarios is necessary. By making scientific and rational selections based on specific application needs, engineers and designers can optimize product design, improve system performance, and ensure the reliable operation of equipment in high-temperature environments.

1. Introduction to Alnico Magnets
Alnico (Aluminum-Nickel-Cobalt) magnets, developed in the 1930s, are among the earliest permanent magnets used in industrial applications. Composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), iron (Fe), and trace elements like titanium (Ti) and copper (Cu), Alnico magnets exhibit high remanence (Br), low-temperature coefficients, and exceptional thermal stability, with operational temperatures exceeding 600°C.

Traditionally manufactured via casting or sintering, Alnico magnets were dominant in motors, sensors, and aerospace applications before being largely replaced by ferrite and rare-earth magnets (e.g., NdFeB, SmCo) due to cost and performance limitations. However, their cobalt content (5–12%) and nickel content (14–23%) have revived interest in recycling amid rising critical metal scarcity.


2. Maturity of Alnico Recycling Processes
2.1 Primary Recycling Methods
Alnico recycling involves physical separation, pyrometallurgical, and hydrometallurgical approaches, though no single method dominates due to the material’s unique properties.


Physical Separation & Direct Reuse

Process: Intact Alnico magnets (e.g., from decommissioned motors or sensors) are physically separated from non-magnetic components (e.g., steel casings, plastics) using magnetic separators, eddy current separators, or manual sorting.
Maturity: Highly mature for pre-sorted waste streams, such as industrial scrap or end-of-life (EOL) motors.
Limitations: Requires minimal contamination; ineffective for powdered or heavily oxidized magnets.


Pyrometallurgical Recycling

Process: Alnico scrap is melted in electric arc furnaces (EAF) or induction furnaces at 1,400–1,600°C to separate cobalt, nickel, and iron from slag.
Maturity: Moderately mature.
Advantages: High recovery rates for cobalt (≥90%) and nickel (≥85%); suitable for mixed scrap.
Disadvantages: High energy consumption; potential for metal loss if slag is not fully processed.


Hydrometallurgical Recycling

Process: Alnico is dissolved in acidic solutions (e.g., HCl, H₂SO₄) to leach cobalt, nickel, and iron, followed by solvent extraction or precipitation to isolate pure metals.
Maturity: Emerging, with research focused on optimizing leaching efficiency and reducing chemical waste.
Advantages: High purity of recovered metals (≥99.9%); lower energy demand than pyrometallurgy.
Disadvantages: Slow processing times; challenges in handling aluminum (which forms insoluble oxides).



2.2 Industry Adoption & Challenges

Global Capacity: As of 2026, fewer than 10 specialized Alnico recyclers operate globally, primarily in Japan, Germany, and China, with a combined annual capacity of <5,000 metric tons.
Key Barriers:

Scarcity of EOL Alnico: Most Alnico magnets remain in service (e.g., in legacy motors, aerospace systems), limiting waste availability.
High Processing Costs: Recycling Alnico is 2–3x more expensive than primary production due to low economies of scale.
Material Complexity: Alnico’s multi-element composition complicates separation compared to single-element magnets (e.g., NdFeB).




3. Economic Value of Recycled Alnico
3.1 Market Prices & Drivers

Cobalt & Nickel Prices: Alnico’s value is tied to cobalt (27,000–35,000/tonin2024)andnickel(18,000–25,000/ton), which account for 60–70% of its material cost.
Recycling Premium: Recycled Alnico commands a 10–15% premium over virgin material due to lower environmental impact and reduced reliance on conflict minerals (e.g., Congolese cobalt).
Price Range (2024):

High-grade Alnico scrap (clean, intact magnets): 38–46/kg(17.2–20.9/lb).
Low-grade scrap (contaminated, powdered): 22–30/kg(10.0–13.6/lb).



3.2 Cost Comparison: Recycling vs. Primary Production




Parameter
Recycled Alnico
Virgin Alnico




Energy Consumption
60–70% lower
High (smelting, refining)


CO₂ Emissions
50–60% lower
High (mining, transport)


Material Cost
70–80% of virgin price
Base reference


Processing Cost
$12–18/kg
$8–12/kg




Source: China Rare Earth Industry Association (2023)

3.3 Policy Incentives

EU Critical Raw Materials Act: Targets 15% recycling rate for cobalt by 2030, boosting Alnico recovery.
U.S. Inflation Reduction Act: Offers $35/kg tax credit for recycled cobalt used in clean energy technologies.
China’s “14th Five-Year Plan”: Funds $50 million for rare-earth-free magnet recycling R&D, including Alnico.


4. Performance Degradation in Recycled Alnico
4.1 Magnetic Properties After Recycling
Recycled Alnico magnets typically retain 90–95% of their original magnetic performance, depending on:


Recycling Method:

Pyrometallurgy: May introduce impurities (e.g., oxygen, carbon), reducing coercivity (Hc) by 5–10%.
Hydrometallurgy: Preserves purity but risks grain growth during sintering, lowering remanence (Br) by 3–5%.


Contamination Level: Scrap with >5% non-magnetic impurities (e.g., steel, plastic) degrades performance by 10–15%.

4.2 Long-Term Stability

Temperature Stability: Recycled Alnico maintains <0.02%/°C remanence loss up to 600°C, identical to virgin material.
Time-Dependent Decay: Annual magnetic loss is 0.1–0.3% for recycled Alnico, comparable to virgin magnets.

4.3 Case Studies

Sumitomo Metal Mining (Japan): Recycled Alnico magnets used in automotive sensors showed <2% performance drop over 10,000 operational hours.
Fraunhofer IWKS (Germany): Hydrometallurgically recycled Alnico for wind turbines achieved 94% of virgin Br after 5 years of field testing.


5. Conclusion & Outlook
Alnico recycling is technically viable but economically nascent, constrained by limited waste supply and high processing costs. However, rising cobalt/nickel prices, policy mandates, and advancements in hydrometallurgical separation (e.g., ionic liquids for aluminum removal) are improving viability.

Key Recommendations:


Expand Collection Networks: Partner with OEMs to recover Alnico from EOL industrial equipment.
Invest in R&D: Develop low-cost, low-energy recycling methods (e.g., bioleaching).
Standardize Grading: Create industry-wide classifications for recycled Alnico to reduce quality uncertainty.

By 2030, Alnico recycling could supply 10–15% of global cobalt demand for magnets, reducing reliance on primary mining and enhancing supply chain resilience.
