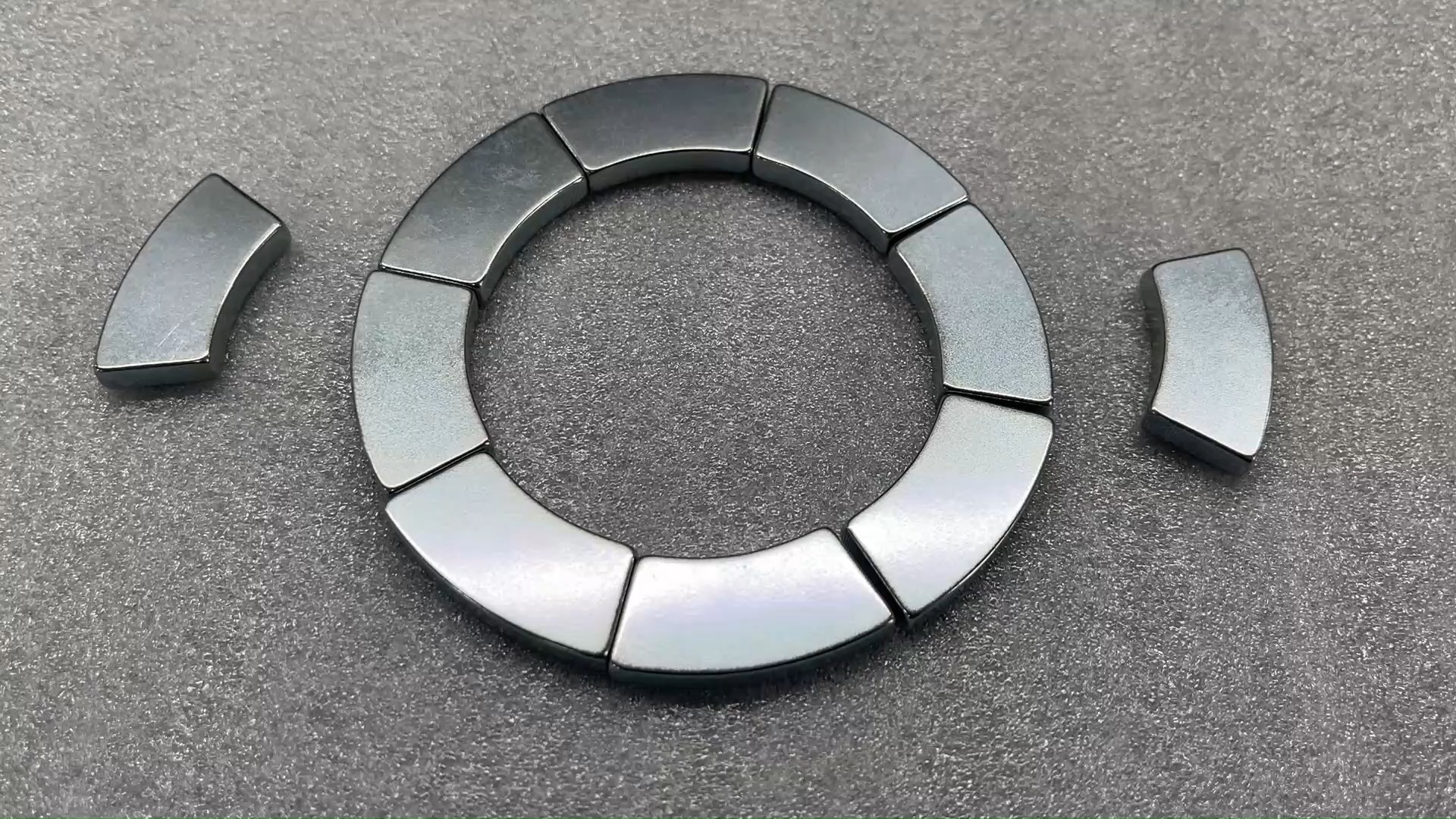

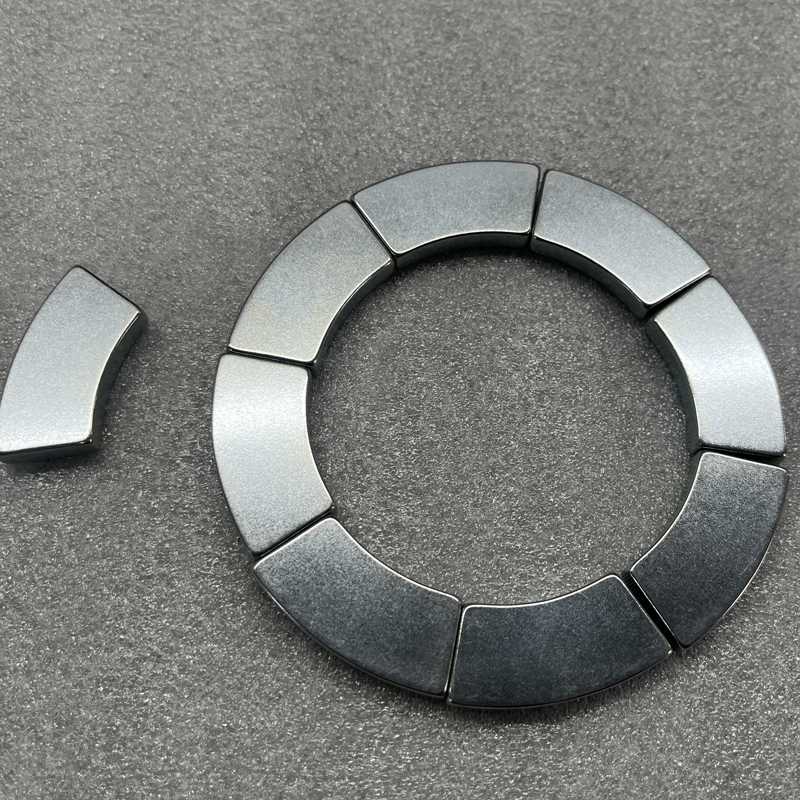

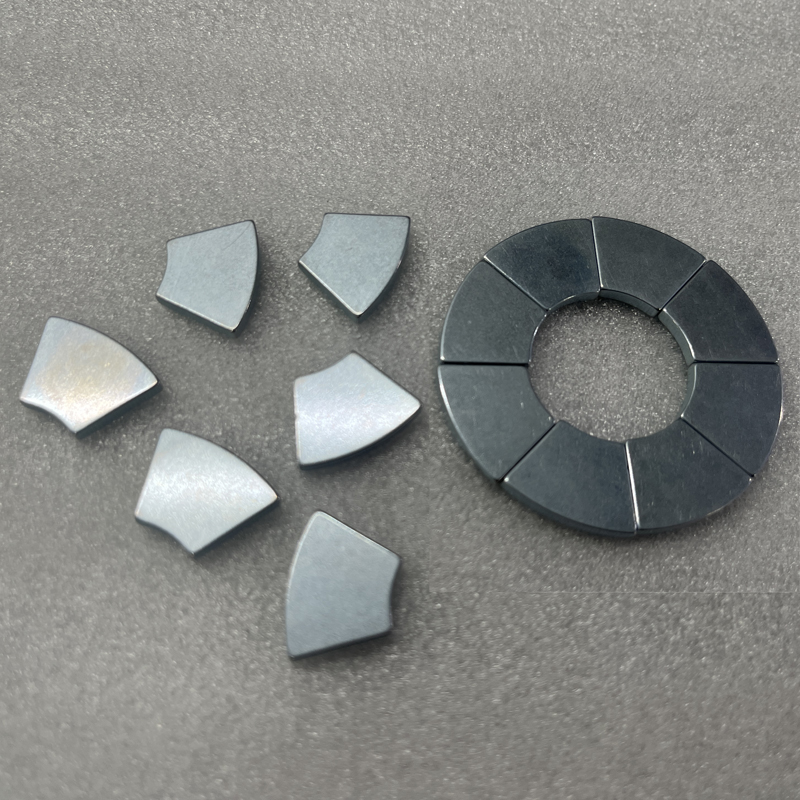

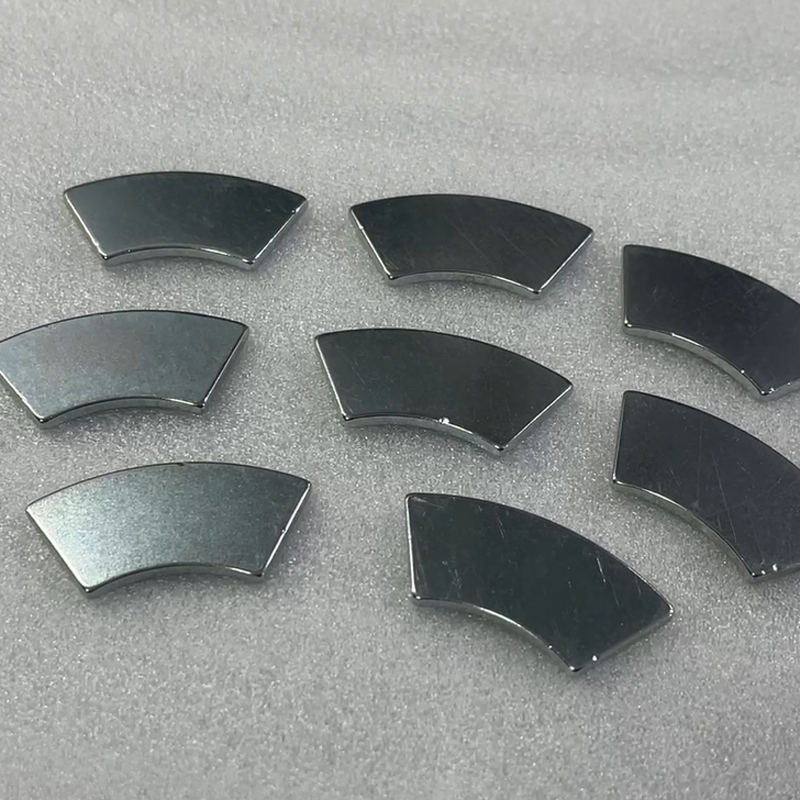

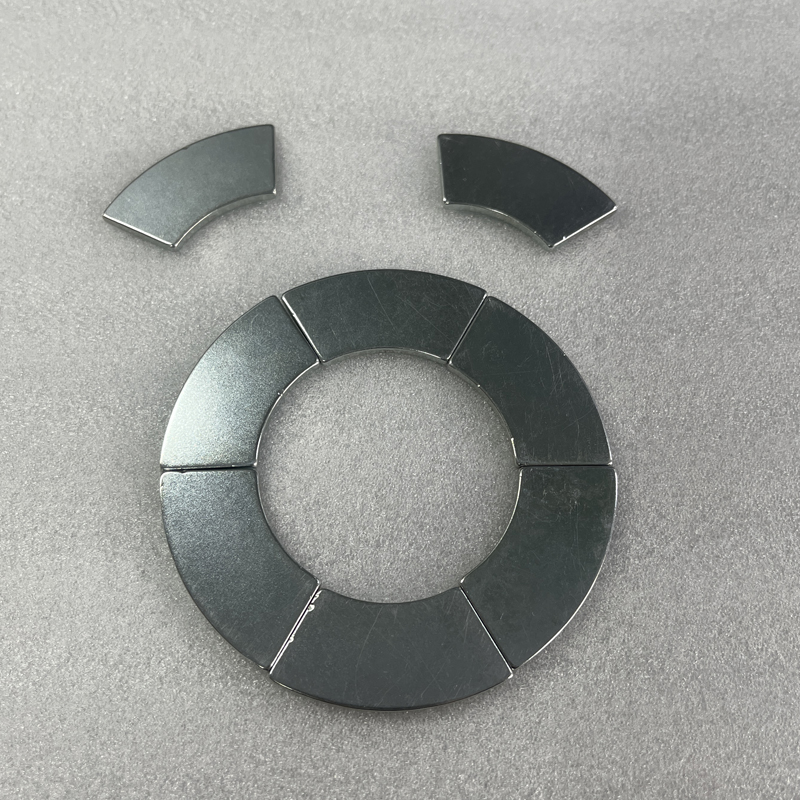

SM-03152031 3 types different size ARC Ndfeb Magnet With Zinc
Features
1. Small-Size Arc NdFeB Magnets (e.g., 10 mm × 5 mm × 3 mm)
Small-size arc NdFeB magnets are engineered for compact, high-precision applications where space is limited but magnetic performance is critical. These magnets typically feature a low profile and tight curvature, enabling integration into miniature motors, sensors, and consumer electronics.
· High Energy Product: Despite their small size, these magnets achieve energy products of 35–45 MGOe, delivering strong magnetic fields relative to their volume.
· Zinc Coating Benefits: The zinc layer provides corrosion resistance, making them suitable for humid environments or applications involving occasional exposure to moisture.
· Temperature Stability: Standard grades (e.g., N35–N42) operate reliably up to 80°C, with high-temperature variants (e.g., N42SH) extending this range to 150°C.
· Precision Tolerances: Manufactured with dimensional tolerances as tight as ±0.05 mm, ensuring consistent performance in assemblies requiring exact alignment.
Applications:
· Magnetic closures in smartphones and wearable gadgets.
· Actuators in automotive systems (e.g., seat adjusters, mirror controls).
2. Medium-Size Arc NdFeB Magnets (e.g., 30 mm × 15 mm × 8 mm)
Introduction:
Medium-size arc magnets strike a balance between magnetic output and physical dimensions, making them versatile for industrial and automotive applications. Their curved geometry is ideal for generating radial magnetic fields in motor rotors or stators.
Features:
· Enhanced Magnetic Strength: With energy products ranging from 45–52 MGOe, these magnets provide higher torque and efficiency compared to smaller counterparts.
· Robust Zinc Coating: The thicker zinc layer (5–10 μm) enhances durability, resisting abrasion and chemical degradation in harsh environments.
· Customizable Angles: Available in arc segments spanning 30°–180°, enabling tailored solutions for specific motor designs.
· Cost-Effectiveness: Scalable production processes reduce unit costs, making them economical for high-volume applications.
Applications:
· Electric vehicle (EV) traction motors and hybrid powertrains.
· Industrial servo motors for CNC machinery and automation.
· Wind turbine generators requiring high-efficiency magnetic components.
3. Large-Size Arc NdFeB Magnets (e.g., 80 mm × 40 mm × 20 mm)
Introduction:
Large-size arc magnets are designed for heavy-duty applications demanding maximum magnetic flux and mechanical stability. Their substantial dimensions and high-grade NdFeB alloys make them suitable for high-power systems such as generators and magnetic bearings.
Features:
· Ultra-High Energy Product: Grades like N52 achieve energy products up to 52 MGOe, delivering unparalleled magnetic strength for their size.
· Multi-Layer Zinc Coating: Advanced plating techniques (e.g., electroless nickel-zinc) provide superior corrosion protection, extending service life in marine or chemical environments.
· Thermal Management: High-temperature grades (e.g., N50EH) operate reliably up to 200°C, with thermal stabilization processes minimizing demagnetization risk.
· Structural Integrity: Reinforced magnet designs resist cracking under mechanical stress, ensuring long-term reliability in vibrating systems.
Applications:
· Large-scale generators in hydroelectric and thermal power plants.
· Magnetic levitation systems for high-speed trains and industrial cranes.
· Aerospace propulsion units requiring lightweight yet powerful magnetic components.
Conclusion
Arc-shaped NdFeB magnets with zinc coating offer a compelling combination of magnetic performance, corrosion resistance, and design flexibility. From miniature consumer devices to industrial power systems, their versatility is enhanced by customizable sizes, grades, and coatings. By selecting the appropriate magnet category—small, medium, or large—engineers can optimize efficiency, durability, and cost-effectiveness for virtually any rotational application.
Product Details
Introduction
Arc-shaped neodymium-iron-boron (NdFeB) magnets with zinc coating represent a specialized category of permanent magnets, combining the exceptional magnetic properties of NdFeB alloys with the protective benefits of zinc plating. These magnets are widely used in rotational systems such as electric motors, generators, and magnetic couplings, where their curved geometry optimizes magnetic field distribution. Below, we explore three distinct size categories of arc NdFeB magnets with zinc coating, highlighting their technical specifications and application-specific advantages.
