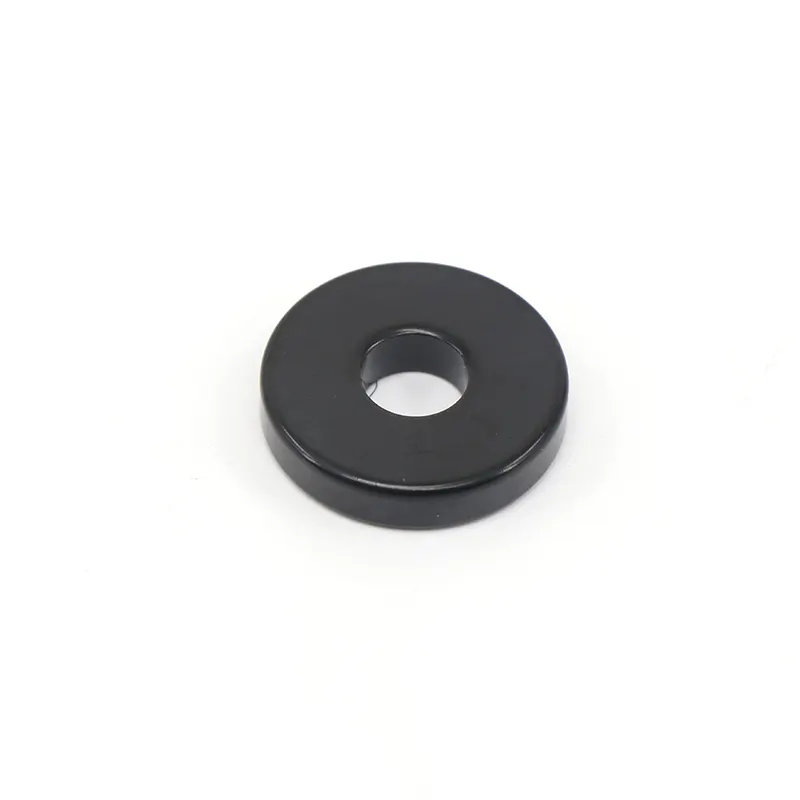

Hot Selling Hard Ferrite Magnet

Magnets are indispensable components in modern technology, powering everything from household appliances to advanced industrial machinery. Among the diverse range of magnetic materials, AlNiCo (Aluminum-Nickel-Cobalt) and ferrite magnets stand out as two widely used types, each with distinct advantages and cost implications. This analysis delves into the cost dynamics of AlNiCo and ferrite magnets, examining their material composition, manufacturing processes, performance characteristics, and application-specific cost-effectiveness. By understanding these factors, manufacturers and engineers can make informed decisions when selecting magnets for their projects.

Material Composition and Manufacturing Processes
AlNiCo Magnets
AlNiCo magnets are composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), and iron (Fe), with occasional additions of copper (Cu) and titanium (Ti) to enhance specific properties. The manufacturing process involves casting or sintering, depending on the desired shape and grade. Casting is typically used for complex shapes, while sintering is preferred for simpler geometries. The process begins with melting the raw materials in a vacuum or inert atmosphere to prevent oxidation. The molten alloy is then poured into molds and cooled slowly to achieve the desired crystalline structure. After solidification, the magnets undergo heat treatment, including aging and annealing, to optimize their magnetic properties.

The cost of AlNiCo magnets is influenced by several factors. First, the raw materials, particularly cobalt and nickel, are relatively expensive and subject to market fluctuations. Cobalt, for instance, is a critical component in lithium-ion batteries, driving up its price due to high demand in the electric vehicle industry. Second, the manufacturing process is energy-intensive and requires specialized equipment, adding to production costs. Third, the heat treatment step is time-consuming and requires precise temperature control, further increasing expenses. These factors contribute to the higher cost of AlNiCo magnets compared to ferrite magnets.

Ferrite Magnets
Ferrite magnets, also known as ceramic magnets, are composed of iron oxide (Fe₂O₃) combined with strontium (Sr) or barium (Ba) carbonate. The manufacturing process involves powder metallurgy, which includes mixing the raw materials into a fine powder, pressing the powder into the desired shape, and sintering it at high temperatures to achieve densification. The sintering process typically occurs at temperatures between 1000°C and 1300°C, depending on the specific composition and desired properties. After sintering, the magnets may undergo machining to achieve precise dimensions and surface finishes.

The cost of ferrite magnets is significantly lower than that of AlNiCo magnets for several reasons. First, the raw materials are abundant and inexpensive. Iron oxide is a widely available byproduct of steel production, while strontium and barium carbonates are readily sourced from mineral deposits. Second, the manufacturing process is less energy-intensive and requires less specialized equipment compared to AlNiCo production. Third, ferrite magnets do not require heat treatment steps like aging or annealing, reducing production time and costs. These factors make ferrite magnets a cost-effective choice for applications where high magnetic strength is not critical.

Performance Characteristics and Cost Implications
Magnetic Strength and Energy Product
One of the most significant differences between AlNiCo and ferrite magnets is their magnetic strength and energy product. AlNiCo magnets exhibit higher remanence (Br), which is the measure of residual magnetism after the external magnetic field is removed. They also have higher coercivity (Hc), which is the resistance to demagnetization. The maximum energy product (BHmax), a measure of the magnet's ability to store magnetic energy, is also higher in AlNiCo magnets compared to ferrite magnets. For example, a high-grade AlNiCo magnet can have a BHmax of up to 5.5 MGOe (Mega Gauss Oersteds), while ferrite magnets typically range from 1 to 5 MGOe.

The higher magnetic strength of AlNiCo magnets comes at a cost. Their superior performance makes them suitable for applications where precise magnetic fields or high energy storage are required, such as in sensors, guitar pickups, and scientific instruments. However, for applications where magnetic strength is not the primary concern, such as in large stationary speakers or refrigerator magnets, the lower cost of ferrite magnets makes them a more economical choice.

Temperature Stability
Another critical performance characteristic is temperature stability. AlNiCo magnets excel in high-temperature environments, maintaining their magnetic properties up to temperatures of 540°C to 650°C, depending on the grade. This makes them ideal for applications such as aerospace, military equipment, and high-temperature motors, where exposure to extreme heat is common. In contrast, ferrite magnets have a lower Curie temperature, typically around 450°C, beyond which they lose their magnetism permanently. While ferrite magnets can withstand moderate temperatures, they are not suitable for applications requiring prolonged exposure to high heat.

The temperature stability of AlNiCo magnets justifies their higher cost in high-temperature applications. The ability to maintain magnetic performance under extreme conditions reduces the need for frequent replacements or upgrades, resulting in long-term cost savings. For applications operating at lower temperatures, ferrite magnets offer a cost-effective alternative without compromising functionality.

Corrosion Resistance
Corrosion resistance is another factor influencing the cost-effectiveness of magnets. AlNiCo magnets are inherently corrosion-resistant due to their metallic composition and the formation of a protective oxide layer on their surface. This makes them suitable for outdoor or marine applications where exposure to moisture and harsh environments is common. Ferrite magnets, while also resistant to corrosion, are more brittle and prone to chipping or cracking under mechanical stress. However, their ceramic-like nature provides excellent resistance to chemical degradation, making them suitable for applications involving exposure to chemicals or solvents.

The corrosion resistance of AlNiCo magnets reduces maintenance costs and extends their service life, justifying their higher initial investment in applications where durability is critical. Ferrite magnets, while less durable under mechanical stress, offer a lower-cost solution for applications where chemical resistance is more important than physical robustness.

Application-Specific Cost-Effectiveness
Consumer Electronics
In consumer electronics, such as speakers, headphones, and motors, the choice between AlNiCo and ferrite magnets depends on the specific requirements of the application. For high-end audio equipment, where sound quality and precision are paramount, AlNiCo magnets are often preferred due to their superior magnetic properties. The ability to produce clear, distortion-free sound makes AlNiCo magnets worth the higher cost in premium audio products. However, for budget-friendly consumer electronics, where cost is a significant factor, ferrite magnets provide an adequate solution at a fraction of the price.

Automotive Industry
The automotive industry utilizes both AlNiCo and ferrite magnets in various components, such as sensors, actuators, and motors. AlNiCo magnets are used in applications requiring high-temperature stability and precise magnetic fields, such as in engine management systems and transmission sensors. Their ability to withstand extreme heat and maintain accurate readings ensures reliable performance in critical automotive systems. Ferrite magnets, on the other hand, are used in less demanding applications, such as in door locks, window motors, and seat adjusters, where cost and volume are more important than magnetic strength.

Industrial Machinery
In industrial machinery, the choice of magnets depends on the specific function and operating conditions. For high-speed motors and generators, where high magnetic strength and energy efficiency are crucial, AlNiCo magnets may be preferred despite their higher cost. Their superior performance can lead to increased energy savings and reduced downtime, offsetting the initial investment over time. For less critical applications, such as in conveyor systems or material handling equipment, ferrite magnets offer a cost-effective solution without compromising functionality.

Market Trends and Pricing Analysis
AlNiCo Magnet Pricing
The pricing of AlNiCo magnets varies widely depending on the grade, shape, and quantity purchased. For example, a small AlNiCo disc magnet with a diameter of 6 mm and a thickness of 10 mm can cost as little as 0.35perunitwhenpurchasedinbulk(600–900units).Largerormorecomplexshapes,suchasU−shapedmagnetsorpotmagnets,cancostsignificantlymore,withpricesrangingfrom10 to $100 or more per unit, depending on the specifications. The grade of the AlNiCo magnet also affects pricing, with higher grades (e.g., AlNiCo 5) commanding a premium due to their superior magnetic properties.

Ferrite Magnet Pricing
Ferrite magnets are generally much less expensive than AlNiCo magnets, with prices typically ranging from 0.50to5 per unit, depending on the size and shape. For example, a ferrite disc magnet with a diameter of 20 mm and a thickness of 10 mm can cost as little as 1.75perunit,whilelargerdiscs(e.g.,30mmdiameterx15mmthickness)maycostaround3.37 per unit. The low cost of ferrite magnets makes them attractive for applications requiring large volumes of magnets, such as in consumer products or industrial assemblies.

Cost-Per-Unit-Of-Magnetic-Field
When comparing the cost-effectiveness of AlNiCo and ferrite magnets, it is essential to consider the cost per unit of magnetic field generated. While AlNiCo magnets have higher magnetic strength, their higher cost means that, in some cases, ferrite magnets may offer a better value proposition when considering the total magnetic field required for an application. For example, in applications where a large magnetic field is needed but precise control is not critical, using multiple ferrite magnets may be more cost-effective than a single AlNiCo magnet, even though the latter has higher individual strength.

Conclusion
The cost comparison between AlNiCo and ferrite magnets reveals a trade-off between performance and affordability. AlNiCo magnets, with their superior magnetic properties, temperature stability, and corrosion resistance, are ideal for high-performance applications where reliability and precision are paramount. However, their higher cost makes them less suitable for budget-sensitive projects or applications requiring large volumes of magnets. Ferrite magnets, on the other hand, offer a cost-effective solution for applications where magnetic strength is not the primary concern, providing adequate performance at a fraction of the cost of AlNiCo magnets.

Ultimately, the choice between AlNiCo and ferrite magnets depends on the specific requirements of the application, including magnetic strength, temperature stability, corrosion resistance, and cost constraints. By carefully evaluating these factors, manufacturers and engineers can select the most appropriate magnet type to optimize performance and minimize costs, ensuring the success of their projects in a competitive market.

Aluminum-nickel-cobalt (AlNiCo) magnets, known for their high remanence, low temperature coefficient, and excellent high - temperature stability, are widely used in various industrial fields. Proper storage conditions are crucial to maintain their magnetic properties and prevent degradation. This paper comprehensively discusses the key factors affecting the storage of AlNiCo magnets, including environmental conditions, packaging methods, handling precautions, and storage layout, providing detailed guidelines for optimal storage.

1. Introduction
AlNiCo magnets are a type of permanent magnet composed mainly of aluminum (Al), nickel (Ni), and cobalt (Co), with small amounts of other elements such as iron (Fe), copper (Cu), and titanium (Ti). They have been in use since the 1930s and offer several advantages, including high remanence (up to 1.35 T), a low reversible temperature coefficient (e.g., - 0.02%/°C at a certain condition), and the ability to operate at high temperatures (up to 600°C or even higher in some cases). These properties make them suitable for applications in instrument panels, micro - special motors, sensors, and other fields where high magnetic stability is required. However, improper storage can lead to a loss of magnetic properties, such as demagnetization, which can significantly affect their performance in applications. Therefore, understanding and implementing proper storage conditions is essential for preserving the quality and functionality of AlNiCo magnets.

2. Environmental Conditions for Storage
2.1 Temperature
The Curie temperature of AlNiCo magnets is relatively high, typically around 860°C. This means that they can withstand relatively high temperatures without losing their permanent magnetism. However, it is still important to store them at a reasonable temperature to prevent any potential long - term degradation.

Extreme high temperatures, although not likely to cause immediate demagnetization in most cases, can accelerate chemical reactions and physical changes within the magnet material, leading to a gradual loss of magnetic properties over time. On the other hand, extremely low temperatures are generally not a major concern for AlNiCo magnets in terms of demagnetization, but they can make the magnet more brittle, increasing the risk of mechanical damage during handling.

The recommended storage temperature range for AlNiCo magnets is room temperature, typically between 15°C and 25°C. This range provides a stable environment that minimizes the risk of thermal - induced degradation and mechanical damage. If the storage area is likely to experience temperature fluctuations, it is important to ensure that the temperature does not exceed the upper or lower limits of this range for extended periods.

2.2 Humidity
High humidity can have a detrimental effect on AlNiCo magnets. Moisture in the air can cause corrosion on the surface of the magnets, especially if there are any small cracks or defects in the protective coating (if present). Corrosion can not only damage the appearance of the magnets but also affect their magnetic properties by altering the surface structure and potentially creating local areas of reduced magnetic performance.

In addition, high humidity can lead to the accumulation of ferrous particles from the air and surrounding surfaces on the magnets. These particles can appear as small "hairs" on the surface of the magnet or its packaging, which can not only be unsightly but also affect the magnetic field distribution and performance.

To prevent these issues, AlNiCo magnets should be stored in a low - humidity environment. The ideal relative humidity range is between 30% and 60%. If the storage area has high humidity, dehumidifiers can be used to control the moisture level. Additionally, storing the magnets in closed, clean containers can further protect them from moisture and the accumulation of ferrous particles.

3. Packaging Methods for Storage
3.1 General Packaging Principles
The packaging of AlNiCo magnets should serve several purposes: protecting the magnets from physical damage, preventing demagnetization, and minimizing the accumulation of debris. The packaging materials should be non - magnetic to avoid any interaction with the magnetic field of the magnets.

For small - sized AlNiCo magnets, they can be arranged in attracting rows and wrapped in foam or cardboard. The foam or cardboard provides cushioning to protect the magnets from mechanical shock during storage and transportation. Wrapping them in this way also helps to keep the magnets in an organized manner and reduces the risk of them moving around and potentially colliding with each other.

Larger AlNiCo magnets should be packaged individually. This is because larger magnets have stronger magnetic fields, and if they are stored in close proximity to each other without proper separation, they can exert significant forces on each other, leading to potential damage or misalignment. Individual packaging can be done using custom - made boxes or containers that are designed to fit the specific shape and size of the magnets.

3.2 Use of Keepers
A keeper is a piece of soft iron or other magnetic material that is placed across the poles of a magnet to provide a low - reluctance magnetic path. For AlNiCo magnets, which are relatively easily demagnetized compared to some other types of permanent magnets, using keepers is an effective way to preserve their magnetic charge during storage.

For example, horseshoe - shaped AlNiCo magnets can be stored end - to - end with opposite poles touching, and a keeper can be placed across the open ends to complete the magnetic circuit. Bar - shaped AlNiCo magnets can be stored with the opposite poles beside each other, and a keeper can be placed along the length of the magnets to reduce the external magnetic field and prevent demagnetization.

The use of keepers is especially important when storing AlNiCo magnets for long periods, as it helps to maintain the magnetic alignment of the domains within the magnet material and prevent the gradual loss of magnetism.

3.3 Original Packaging
If the AlNiCo magnets are received in their original Dura wrapping or other manufacturer - provided packaging, it is generally recommended to keep them in this packaging during storage. The original packaging is designed specifically for the magnets and has been tested to provide adequate protection during transportation and storage. It may include features such as cushioning, magnetic shielding, and moisture resistance that are tailored to the requirements of the particular type of AlNiCo magnet.

By keeping the magnets in their original packaging, the risk of damage and demagnetization is minimized, and the magnets are more likely to maintain their original magnetic properties when they are taken out of storage for use.

4. Handling Precautions During Storage - Related Activities
4.1 Avoiding Mechanical Shock
AlNiCo magnets are brittle materials, especially compared to some other types of magnets such as ferrite magnets. Although they are stronger in terms of magnetic force, they are more prone to cracking or breaking when subjected to mechanical shock.

During storage - related activities such as moving the magnets from one location to another or rearranging them within the storage area, it is important to handle them with care. Avoid dropping the magnets on hard surfaces or banging them against metal objects or other magnets. Do not strike them with a hammer or any other hard tool.

When lifting or moving larger AlNiCo magnets, use appropriate lifting equipment or techniques to ensure that the force is applied evenly and that the magnets are not subjected to excessive bending or twisting forces. If the magnets are stored on shelves, make sure that the shelves are sturdy enough to support the weight of the magnets and that there is adequate clearance between the shelves to prevent the magnets from moving or jumping when accessed.

4.2 Preventing Magnetic Interference
AlNiCo magnets have strong magnetic fields that can interact with other magnetic materials and magnetically sensitive equipment. During storage, it is important to keep the magnets away from magnetically sensitive devices such as credit cards, computer hard drives, and medical implants.

The magnetic field of an AlNiCo magnet can erase the data on magnetic storage media or affect the operation of sensitive electronic equipment. Therefore, when storing the magnets, designate a separate storage area that is away from areas where magnetically sensitive items are kept.

In addition, avoid storing AlNiCo magnets in close proximity to other types of magnets, especially those made from different alloys. Different types of magnets may have different magnetic properties and can interact with each other in unpredictable ways, potentially leading to demagnetization or changes in the magnetic field distribution.

5. Storage Layout and Organization
5.1 Separation of Different Types of Magnets
As mentioned earlier, it is important to store different types of magnets separately to prevent demagnetization and magnetic interference. AlNiCo magnets should have their own dedicated storage space or drawer. This not only helps to protect the AlNiCo magnets from the influence of other magnets but also makes it easier to locate and access the magnets when needed.

If multiple batches or sizes of AlNiCo magnets are being stored, it is also a good practice to separate them within the dedicated storage area. This can be done using dividers or separate containers for each batch or size. By keeping the magnets organized in this way, it reduces the risk of confusion and ensures that the correct magnets are selected for a particular application.

5.2 Proper Shelving and Stacking
When storing AlNiCo magnets on shelves, choose shelves that are made of non - magnetic materials such as wood or plastic. Metal shelving can be affected by the magnetic field of the magnets, and the magnets may move or jump as they are accessed, especially if there is inadequate clearance between the shelves.

If metal shelving must be used, ensure that there is sufficient space between the shelves to prevent the magnets from coming into close contact with each other or with the shelving structure. The shelves should also be sturdy enough to support the weight of the magnets without bending or sagging.

When stacking AlNiCo magnets, avoid stacking them too high, as the weight of the upper magnets can put excessive pressure on the lower ones, potentially causing damage. If stacking is necessary, use appropriate spacers or supports between the layers to distribute the weight evenly and prevent the magnets from sliding or shifting.

6. Monitoring and Inspection during Storage
6.1 Regular Visual Inspection
Regular visual inspections of the stored AlNiCo magnets are essential to identify any signs of damage, corrosion, or demagnetization. During the inspection, check for cracks, chips, or other physical damage on the surface of the magnets. Look for any signs of corrosion, such as discoloration or rust spots.

Also, observe the magnetic field distribution around the magnets. If there are any unusual patterns or a significant decrease in the magnetic force, it may indicate that the magnets have been demagnetized or that there is an issue with the storage conditions.

The frequency of visual inspections can depend on the storage duration and the importance of the magnets in the application. For long - term storage, it is recommended to conduct visual inspections at least once every six months. For short - term storage or when the magnets are critical for a specific application, more frequent inspections, such as once a month, may be necessary.

6.2 Magnetic Property Testing
In addition to visual inspections, periodic magnetic property testing can be carried out to ensure that the AlNiCo magnets maintain their required magnetic performance. Magnetic property testing can include measuring the remanence, coercivity, and magnetic flux density of the magnets.

There are various testing methods available, such as using a gaussmeter or a Hall - effect sensor to measure the magnetic field strength at different points on the magnets. X - ray diffraction (XRD) can be used to analyze the crystal structure of the magnets, which is closely related to their magnetic properties.

The frequency of magnetic property testing depends on the storage conditions and the criticality of the magnets. For magnets stored in harsh environments or for high - precision applications, more frequent testing, such as once a year or even more often, may be required. For magnets stored in ideal conditions and for less critical applications, testing every few years may be sufficient.

7. Conclusion
Proper storage conditions are vital for maintaining the magnetic properties and performance of AlNiCo magnets. By controlling environmental factors such as temperature and humidity, using appropriate packaging methods including keepers and original packaging, following handling precautions to avoid mechanical shock and magnetic interference, organizing the storage layout effectively, and conducting regular monitoring and inspection, the quality and functionality of AlNiCo magnets can be preserved over time.

These storage guidelines not only help to extend the service life of AlNiCo magnets but also ensure that they perform as expected in their various applications, such as in instrument panels, micro - special motors, and sensors. As technology continues to advance and the demand for high - performance permanent magnets increases, understanding and implementing proper storage practices will become even more important for industries that rely on AlNiCo magnets.

Aluminum-nickel-cobalt (AlNiCo) magnets are a type of permanent magnet known for their high remanence, excellent temperature stability, and relatively high coercivity. Due to these properties, they are widely used in various applications such as sensors, loudspeakers, and certain types of motors. However, transporting AlNiCo magnets requires careful consideration to ensure their safety, prevent damage, and comply with relevant regulations. This article provides detailed transportation precautions for AlNiCo magnets, covering aspects such as packaging, handling, storage, and regulatory compliance.

1. Understanding the Properties of AlNiCo Magnets
Before discussing transportation precautions, it is essential to understand the key properties of AlNiCo magnets that influence their transportation requirements:


Magnetic Strength: AlNiCo magnets have strong magnetic fields, which can attract or repel other magnetic materials over relatively long distances.
Temperature Stability: They exhibit excellent temperature stability, maintaining their magnetic properties over a wide temperature range (up to around 600°C).
Brittleness: AlNiCo magnets are brittle and can easily crack or break if subjected to mechanical shock or impact.
Corrosion Resistance: They have good corrosion resistance, but prolonged exposure to moisture or certain chemicals can still cause degradation.

These properties necessitate specific precautions during transportation to prevent damage to the magnets and interference with other goods or equipment.

2. Packaging Precautions
Proper packaging is crucial for protecting AlNiCo magnets during transportation. The packaging should not only shield the magnets from physical damage but also minimize their magnetic influence on the surrounding environment.

2.1 Selection of Packaging Materials

Non-Magnetic Materials: Use non-magnetic materials such as cardboard, wood, or plastic for the outer packaging. This prevents the packaging from being attracted to or repelled by the magnets, reducing the risk of damage during handling.
Cushioning Materials: Incorporate cushioning materials like foam, bubble wrap, or air pillows to absorb shocks and vibrations during transportation. This is particularly important for fragile or high-value magnets.
Separation of Magnets: If transporting multiple magnets, ensure they are separated by non-magnetic spacers or dividers to prevent them from attracting or repelling each other, which could lead to damage or difficulty in handling.

2.2 Packaging Design

Individual Packaging: For small or delicate magnets, consider packaging each magnet individually before placing them in a larger container. This provides an additional layer of protection.
Secure Closure: Ensure that the packaging is securely closed using tape, straps, or other fastening methods to prevent the magnets from falling out during transportation.
Labeling: Clearly label the packaging with warnings such as "Magnetic Material" and "Handle with Care" to alert handlers to the presence of magnets and the need for special precautions.

2.3 Special Considerations for Air Transportation

Magnetic Shielding: For air transportation, where magnetic fields can interfere with aircraft navigation systems, additional magnetic shielding may be required. This can be achieved by using high-permeability materials like mu-metal or by enclosing the magnets in a steel box to contain the magnetic field.
Magnetic Field Testing: Before air transportation, the magnetic field strength of the packaged magnets should be tested to ensure it complies with international air transport regulations. The International Air Transport Association (IATA) sets limits on the magnetic field strength of cargo to prevent interference with aircraft systems.

3. Handling Precautions
Proper handling during transportation is essential to prevent damage to AlNiCo magnets and ensure the safety of handlers.

3.1 Lifting and Moving

Use of Equipment: Use appropriate lifting equipment such as forklifts, pallet jacks, or cranes when moving heavy or bulky magnets. This reduces the risk of manual handling injuries and damage to the magnets.
Avoiding Dropping: Ensure that magnets are not dropped or subjected to sudden impacts during handling. Dropping can cause cracks or breaks in the brittle magnets.
Secure Positioning: When placing magnets on pallets or in containers, ensure they are securely positioned to prevent movement during transportation. Use straps or other securing methods to keep the magnets in place.

3.2 Avoiding Magnetic Interference

Separation from Sensitive Equipment: Keep magnets away from magnetic-sensitive equipment such as computers, credit cards, and medical devices during handling and transportation. The strong magnetic fields can damage or erase data on these devices.
Avoiding Contact with Ferromagnetic Materials: Prevent magnets from coming into contact with ferromagnetic materials like iron or steel, as this can cause them to attract or repel each other forcefully, leading to damage or injury.

3.3 Personal Protective Equipment (PPE)

Gloves: Handlers should wear gloves when handling magnets to protect their hands from sharp edges or potential pinching between attracting magnets.
Eye Protection: In some cases, eye protection may be necessary to prevent small magnetic fragments from entering the eyes during handling or if a magnet breaks.

4. Storage Precautions During Transportation
If the transportation involves a period of storage (e.g., at a warehouse or transit point), specific storage precautions should be taken to maintain the quality of the AlNiCo magnets.

4.1 Environmental Conditions

Temperature Control: Store magnets in a temperature-controlled environment to prevent exposure to extreme temperatures, which can affect their magnetic properties. Although AlNiCo magnets have good temperature stability, prolonged exposure to very high or low temperatures should be avoided.
Humidity Control: Maintain a low-humidity environment to prevent corrosion of the magnets. While AlNiCo magnets have good corrosion resistance, high humidity can still cause degradation over time.
Ventilation: Ensure adequate ventilation in the storage area to prevent the buildup of moisture or fumes from other chemicals that could affect the magnets.

4.2 Storage Layout

Separation of Magnets: Store magnets in a way that prevents them from attracting or repelling each other. This can be achieved by using non-magnetic shelves or racks and placing magnets with like poles facing each other or using spacers to keep them apart.
Avoiding Overcrowding: Do not overcrowd the storage area, as this can make it difficult to access individual magnets without causing damage or interference.
Security: Ensure that the storage area is secure to prevent unauthorized access and potential theft of the valuable magnets.

5. Regulatory Compliance
Transporting AlNiCo magnets may be subject to various regulations, depending on the mode of transportation (air, sea, or land) and the destination country. It is essential to comply with these regulations to avoid delays, fines, or other penalties.

5.1 Air Transportation Regulations

IATA Regulations: As mentioned earlier, the IATA sets limits on the magnetic field strength of cargo transported by air. Ensure that the packaged magnets comply with these limits and obtain any necessary approvals or certifications before shipping.
Documentation: Provide accurate documentation for air shipments, including a detailed description of the magnets, their magnetic properties, and any special handling instructions.

5.2 Sea and Land Transportation Regulations

Maritime and Road Transport Regulations: While sea and land transportation may have fewer restrictions on magnetic fields, it is still important to comply with any relevant regulations regarding the transportation of dangerous goods or hazardous materials.
Customs Clearance: Ensure that all necessary customs documentation is complete and accurate to facilitate smooth clearance at the destination country.

6. Training and Awareness
Ensuring that all personnel involved in the transportation of AlNiCo magnets are properly trained and aware of the precautions is crucial for safe and efficient transportation.

6.1 Training Programs

Handling Training: Provide training on proper handling techniques, including lifting, moving, and securing magnets to prevent damage and injury.
Safety Training: Train personnel on the potential hazards associated with magnets, such as magnetic interference with equipment and the risk of pinching or crushing injuries.
Regulatory Training: Ensure that personnel are familiar with relevant regulations and documentation requirements for transporting magnets.

6.2 Awareness Campaigns

Posters and Signage: Display posters and signage in the workplace to remind personnel of the precautions to be taken when handling magnets.
Regular Communication: Regularly communicate with personnel about any updates or changes to transportation procedures or regulations.

7. Emergency Response Planning
Despite taking all necessary precautions, emergencies can still occur during the transportation of AlNiCo magnets. Having an emergency response plan in place can help minimize the impact of such incidents.

7.1 Identification of Potential Emergencies

Magnet Breakage: In the event of a magnet breaking, have procedures in place to safely clean up the fragments and prevent injury to personnel.
Magnetic Interference: If magnets cause interference with equipment during transportation, have a plan to quickly isolate and secure the magnets to prevent further damage.
Spills or Leaks: Although AlNiCo magnets do not typically leak, if they are coated with a protective substance that could leak, have procedures in place to contain and clean up spills.

7.2 Emergency Contacts and Procedures

Emergency Contacts: Maintain a list of emergency contacts, including local authorities, medical facilities, and the manufacturer or supplier of the magnets.
Procedures: Develop and document clear procedures for responding to emergencies, including steps to take, who to notify, and how to contain the situation.

Aluminum-nickel-cobalt (AlNiCo) magnets are a type of permanent magnet renowned for their high remanence, excellent temperature stability, and relatively high coercivity. However, under certain conditions such as exposure to high temperatures, strong opposing magnetic fields, or mechanical shock, AlNiCo magnets may experience partial or complete demagnetization. Restoring the magnetism of a demagnetized AlNiCo magnet is crucial for its continued use in various applications, including sensors, loudspeakers, and electric motors. This article explores the methods and considerations for restoring magnetism in AlNiCo magnets after demagnetization.

Understanding Demagnetization in AlNiCo Magnets
Before delving into restoration methods, it is essential to understand the causes and mechanisms of demagnetization in AlNiCo magnets. Demagnetization can occur due to several factors:


High Temperatures: Exposing AlNiCo magnets to temperatures exceeding their Curie temperature (the temperature at which a magnet loses its permanent magnetic properties) can cause irreversible demagnetization. The Curie temperature of AlNiCo magnets typically ranges from 700°C to 860°C, depending on the specific alloy composition.
Strong Opposing Magnetic Fields: Subjecting AlNiCo magnets to a strong magnetic field in the opposite direction to their magnetization can cause demagnetization. This is particularly relevant in applications where multiple magnets are used in close proximity.
Mechanical Shock: Dropping or striking an AlNiCo magnet can cause internal structural damage, leading to demagnetization. This is because the mechanical shock can disrupt the alignment of the magnetic domains within the magnet.

Methods for Restoring Magnetism in AlNiCo Magnets
Restoring magnetism in demagnetized AlNiCo magnets involves realigning the magnetic domains within the magnet to their original orientation. Several methods can be employed to achieve this:

1. Re-magnetization Using a Strong Magnetic Field
The most common and effective method for restoring magnetism in AlNiCo magnets is re-magnetization using a strong magnetic field. This can be achieved using a specialized magnetizing fixture or coil designed to generate a magnetic field strong enough to realign the magnetic domains within the magnet.

Steps Involved:


Prepare the Magnetizing Fixture: Select a magnetizing fixture or coil that can generate a magnetic field strength sufficient to saturate the AlNiCo magnet. The fixture should be designed to accommodate the size and shape of the magnet.
Position the Magnet: Place the demagnetized AlNiCo magnet within the magnetizing fixture, ensuring that it is properly aligned with the magnetic field lines.
Apply the Magnetic Field: Activate the magnetizing fixture to generate a strong magnetic field. The field should be applied for a sufficient duration to ensure complete realignment of the magnetic domains.
Remove the Magnet: Once the magnetization process is complete, carefully remove the magnet from the fixture. The magnet should now exhibit its original magnetic properties.

Considerations:


Magnetic Field Strength: The strength of the magnetic field used for re-magnetization should be at least as strong as the original magnetizing field. This ensures complete realignment of the magnetic domains and optimal magnetic performance.
Magnet Alignment: Proper alignment of the magnet within the magnetizing fixture is crucial for achieving uniform magnetization. Misalignment can result in uneven magnetic properties and reduced performance.
Safety Precautions: Re-magnetization using strong magnetic fields can pose safety risks, such as pinching or crushing injuries due to the attraction of ferromagnetic objects. Ensure that all personnel involved in the process are trained in safety procedures and that appropriate safety measures are in place.

2. Thermal Remagnetization
In some cases, thermal remagnetization can be used to restore magnetism in AlNiCo magnets. This method involves heating the magnet to a temperature below its Curie temperature and then cooling it in the presence of a magnetic field.

Steps Involved:


Heat the Magnet: Place the demagnetized AlNiCo magnet in a furnace or oven and heat it to a temperature below its Curie temperature but high enough to facilitate domain realignment. The exact temperature will depend on the specific alloy composition and the degree of demagnetization.
Apply a Magnetic Field: While the magnet is still hot, apply a magnetic field in the desired magnetization direction. This can be achieved using a permanent magnet or an electromagnet.
Cool the Magnet: Slowly cool the magnet in the presence of the magnetic field to room temperature. The cooling process should be controlled to avoid thermal shock, which can cause cracking or other damage to the magnet.
Remove the Magnet: Once the magnet has cooled to room temperature, remove it from the magnetic field. The magnet should now exhibit its original magnetic properties.

Considerations:


Temperature Control: Precise temperature control is crucial for successful thermal remagnetization. Overheating can cause irreversible damage to the magnet, while underheating may not result in complete domain realignment.
Magnetic Field Application: The magnetic field should be applied uniformly and continuously during the cooling process to ensure uniform magnetization.
Cooling Rate: The cooling rate should be controlled to avoid thermal shock. Rapid cooling can cause cracking or other damage to the magnet, while slow cooling may not be practical for large-scale production.

3. Mechanical Remagnetization
Mechanical remagnetization is a less common method for restoring magnetism in AlNiCo magnets. It involves subjecting the magnet to mechanical stress or vibration in the presence of a magnetic field to realign the magnetic domains.

Steps Involved:


Prepare the Magnet: Clean the demagnetized AlNiCo magnet to remove any dirt or debris that may interfere with the remagnetization process.
Apply Mechanical Stress or Vibration: Subject the magnet to mechanical stress or vibration using a specialized fixture or device. The stress or vibration should be applied in a direction that promotes domain realignment.
Apply a Magnetic Field: While the magnet is under mechanical stress or vibration, apply a magnetic field in the desired magnetization direction. This can be achieved using a permanent magnet or an electromagnet.
Remove the Magnet: Once the remagnetization process is complete, carefully remove the magnet from the fixture. The magnet should now exhibit improved magnetic properties.

Considerations:


Mechanical Stress or Vibration Level: The level of mechanical stress or vibration applied to the magnet should be carefully controlled to avoid damage. Excessive stress or vibration can cause cracking or other structural damage to the magnet.
Magnetic Field Application: The magnetic field should be applied uniformly and continuously during the mechanical remagnetization process to ensure uniform magnetization.
Effectiveness: Mechanical remagnetization may not be as effective as other methods for restoring magnetism in AlNiCo magnets. It is typically used as a last resort when other methods are not feasible or practical.

Factors Affecting the Success of Remagnetization
Several factors can affect the success of remagnetization in AlNiCo magnets:


Degree of Demagnetization: The degree of demagnetization will influence the effectiveness of the remagnetization process. Magnets that have experienced partial demagnetization may be easier to restore than those that have been completely demagnetized.
Magnet Size and Shape: The size and shape of the magnet can also affect the remagnetization process. Larger magnets may require stronger magnetic fields or longer magnetization times to achieve complete domain realignment. Similarly, magnets with complex shapes may require specialized fixtures or coils to ensure uniform magnetization.
Alloy Composition: The specific alloy composition of the AlNiCo magnet can influence its magnetic properties and susceptibility to demagnetization. Magnets with higher coercivity are generally more resistant to demagnetization and may be easier to restore.
History of Use: The history of use of the magnet, including exposure to high temperatures, strong magnetic fields, or mechanical shock, can affect its magnetic properties and the success of remagnetization. Magnets that have been subjected to severe conditions may be more difficult to restore.

Best Practices for Remagnetizing AlNiCo Magnets
To ensure the successful restoration of magnetism in AlNiCo magnets, the following best practices should be followed:


Use Appropriate Equipment: Select magnetizing fixtures or coils that are designed for the specific size and shape of the AlNiCo magnet being remagnetized. Ensure that the equipment can generate a magnetic field strength sufficient to saturate the magnet.
Follow Proper Procedures: Adhere to the recommended procedures for the chosen remagnetization method. This includes proper alignment of the magnet within the fixture, application of the magnetic field for the recommended duration, and controlled cooling (if applicable).
Perform Quality Checks: After remagnetization, perform quality checks to verify that the magnet has regained its original magnetic properties. This can be done using a gauss meter or other magnetic measurement devices.
Store Magnets Properly: Store remagnetized AlNiCo magnets in a cool, dry place away from strong magnetic fields and mechanical shock. This will help maintain their magnetic properties over time.
Seek Professional Assistance: If you are unsure about the remagnetization process or encounter difficulties, seek assistance from a professional magnet supplier or manufacturer. They have the expertise and equipment to ensure successful remagnetization.
