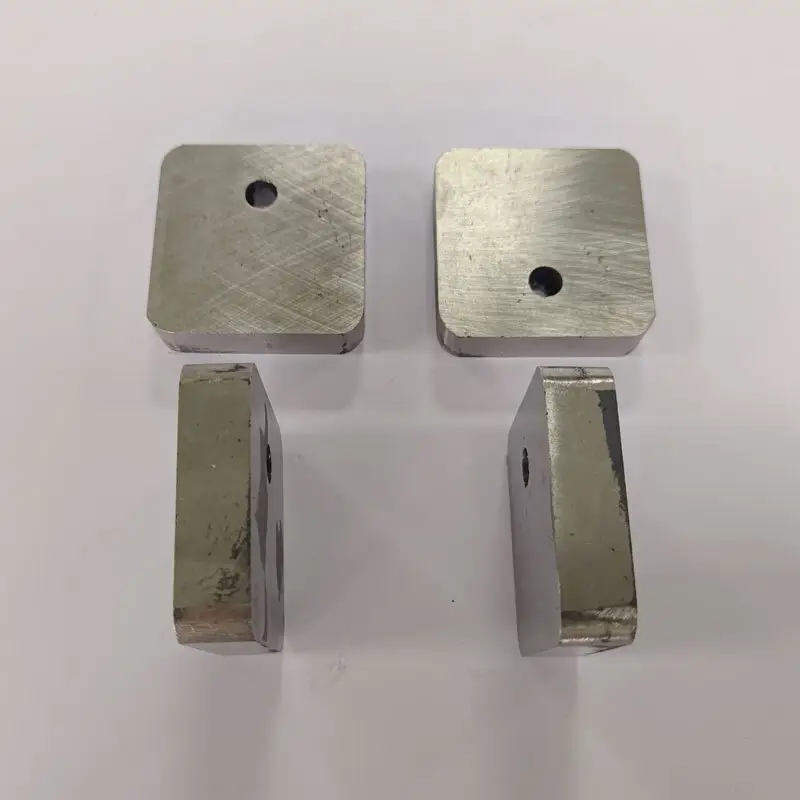

Alnico Ring Magnets

2. Recycling Technologies for NdFeB Magnets
Recycling methods for NdFeB magnets fall into two categories: long-loop (chemical extraction of REEs) and short-loop (direct reuse or remanufacturing). The choice depends on the scrap type (e.g., production waste vs. end-of-life products), cost, and environmental impact.

2.1 Long-Loop Recycling: Chemical Extraction of REEs
Long-loop recycling involves breaking down magnets into individual REEs, which are then reprocessed into new magnets or oxides. Key methods include:


Hydrometallurgy:

Process: Dissolve magnets in acids (e.g., HCl, H₂SO₄), then use solvent extraction or selective precipitation to isolate REEs. For example, Santoku Corporation grinds magnets into particles <75 μm, oxidizes them in NaOH at elevated temperatures, and leaches REEs selectively.
Advantages: High purity (99%+ REE recovery), suitable for complex scrap.
Challenges: High chemical consumption, wastewater treatment costs, and energy use (e.g., heating for leaching).


Pyrometallurgy:

Process: Heat magnets with fluxes (e.g., CaO, MgO) to form slag containing REEs, which are then reduced to metals. For instance, sulfate roasting and nitrification roasting extend pyrometallurgy by modifying oxidation states.
Advantages: Scalable for large volumes, minimal liquid waste.
Challenges: High energy input (1,200–1,600°C), potential air pollution from dust emissions.


Electrochemical Methods:

Process: Use electrolysis to extract REEs from molten salts or aqueous solutions. This method is less common but offers precision in separating REEs.
Advantages: Low chemical waste, potential for selective recovery.
Challenges: High capital costs for specialized equipment.



2.2 Short-Loop Recycling: Direct Reuse or Remanufacturing
Short-loop recycling bypasses chemical extraction, preserving the magnet’s structure for reuse or reprocessing into new magnets. Key methods include:


Hydrogen Decrepitation (HD):

Process: Expose magnets to hydrogen gas, causing them to fracture into powder due to volume expansion in the Nd₂Fe₁₄B phase. The powder is then pressed and sintered into new magnets.
Advantages: Energy-efficient (88% less energy than primary production), retains magnetic properties.
Case Study: HyProMag’s patented Hydrogen Processing of Magnet Scrap (HPMS) technology recovers NdFeB alloy powder from scrap, achieving 99.8% REE recovery efficiency.


Magnet-to-Magnet Recycling:

Process: Demagnetize scrap magnets, clean them (remove coatings, glue), and reshape them into new geometries. For example, Hitachi Metals recycles over 90% of its production waste into new magnets.
Advantages: Minimal material loss, low cost for production scrap.
Challenges: Limited to magnets with intact physical properties (e.g., no corrosion or breakage).


Direct Melting:

Process: Melt scrap magnets and cast them into new alloys. This method is less common due to the risk of impurity incorporation.
Advantages: Simple for homogeneous scrap.
Challenges: Requires strict quality control to avoid degradation.



3. Restoring Magnetic Properties in Recycled Magnets
The magnetic properties of recycled NdFeB magnets depend on the recycling method, scrap quality, and post-processing treatments. Key factors include:

3.1 Grain Boundary Modification (GBM)

Principle: The magnetic properties of NdFeB magnets depend on the microstructure: the Nd₂Fe₁₄B matrix provides high magnetization, while the grain boundary phase (rich in Nd and REEs) isolates grains to reduce coercivity loss.
Process: Add REE hydrides (e.g., DyH₃ nanoparticles) during sintering to modify grain boundaries. Liu et al. demonstrated that adding 1% DyH₃ before sintering recovers up to 89% of the original (BH)max (maximum energy product).
Outcome: GBM enhances coercivity and remanence, making recycled magnets suitable for high-performance applications like traction motors.

3.2 Optimizing Pressure and Temperature

Pressure: In HD and HDDR (Hydrogen Decrepitation-Disproportionation-Desorption-Recombination) processes, increasing pressure above 1 bar accelerates hydrogen absorption but reduces magnetic properties. The optimal pressure for sustainable processing is 50 kPa.
Temperature: Sintering at 1,000–1,100°C is critical for densification. Deviations can lead to porosity or grain growth, degrading properties.

3.3 Case Studies: Performance of Recycled Magnets

Electric Motors: A study compared two identical motors—one using recycled NdFeB magnets (via magnet-to-magnet processing) and the other using virgin magnets. The recycled magnets exhibited 7.0% higher open-circuit flux linkage and 6.4% higher torque despite having 15% lower dysprosium content.
Industrial Applications: Recycled magnets from MRI scanners, pumps, and wind turbines showed properties similar to virgin magnets (e.g., remanence Br = 1.16–1.29 T, coercivity HcJ = 1,147–1,590 kA/m).

4. Challenges and Future Directions
Despite advancements, recycling NdFeB magnets faces challenges:


Material Quality Variability: The condition of scrap (e.g., corrosion, coatings) affects recycling efficiency. For example, glue residues from bonded magnets require alkali roasting for removal.
Economic Viability: Long-loop methods are costly due to chemical and energy inputs. Short-loop methods are cheaper but limited to high-quality scrap.
Scalability: Most industrial plants (e.g., HyProMag, REEcycle) are pilot-scale. Large-scale adoption requires policy support (e.g., subsidies, extended producer responsibility).

Future Innovations:


Microwave-Assisted Processing: Rapid, energy-efficient heating for oxidizing magnets or assisting combustion.
Advanced Sorting Technologies: AI-powered sensors to separate magnets from e-waste by composition and geometry.
Circular Economy Models: Integrating recycling into product design (e.g., modular devices for easy magnet removal).

5. Conclusion
Efficient recycling of scrapped NdFeB magnets is achievable through short-loop methods like hydrogen decrepitation and magnet-to-magnet processing, which preserve magnetic properties while reducing environmental impact. By optimizing grain boundary modification, pressure, and temperature, recycled magnets can match or exceed the performance of virgin materials in applications like electric vehicles and wind turbines. However, scaling up recycling requires addressing material variability, economic barriers, and technological gaps. Collaborative efforts among governments, manufacturers, and researchers are essential to transition to a circular economy for NdFeB magnets, ensuring sustainable access to critical REEs for future technologies.

1. Traditional Casting Method
1.1 Overview of Casting
Casting is the oldest and most widely used method for manufacturing AlNiCo magnets. It involves melting the raw materials—aluminum, nickel, cobalt, iron, and trace elements like copper and titanium—in an induction furnace at temperatures exceeding 1750°C. The molten alloy is then poured into resin-bonded sand molds or metal molds to form the desired shape. This method is particularly suitable for producing large magnets and complex geometries that are difficult to achieve with other techniques.

1.2 Step-by-Step Process

Melting in Foundry Furnace: The raw materials are precisely measured and loaded into an induction furnace. The mixture is heated to over 1750°C to form a homogeneous molten alloy. Extra aluminum may be added to compensate for losses during melting.
Casting: The molten alloy is poured into molds designed to accommodate shrinkage and internal stresses. For high-volume production, patterns are ganged together with intricate gating systems to ensure consistent material properties.
Fettling and Cleanup: After solidification, the cast magnets are removed from the molds and cleaned to remove excess material and surface imperfections.
Heat Treatment: The magnets undergo heat treatment, including hardening and grinding, to optimize their magnetic properties. This involves heating the magnets above their Curie temperature and cooling them at a controlled rate in the presence of an electromagnetic field for anisotropic magnets.
Quality Testing: The magnets are tested for magnetic properties, dimensional accuracy, and surface finish to ensure they meet specifications.
Coating or Painting: To enhance corrosion resistance, the magnets may be coated with epoxy, nickel, or other protective layers.
Final Magnetization: The magnets are magnetized using pulsed magnetizing equipment or static fields to align the magnetic domains according to the required orientation.

1.3 Advantages of Casting

Strong Magnetic Properties: Cast AlNiCo magnets exhibit higher remanence (Br) and coercivity (Hc) compared to sintered magnets, making them suitable for high-performance applications.
Complex Shapes: The casting process allows for the production of intricate shapes like horseshoes, arcs, and tiles, which are difficult to achieve with other methods.
Large Magnet Production: Casting is ideal for manufacturing large magnets weighing tens of kilograms, which are commonly used in aerospace and military applications.

1.4 Limitations of Casting

Higher Initial Tooling Costs: The creation of molds for casting requires significant upfront investment, making it less economical for low-volume production.
Surface Roughness: Cast magnets typically have a rough surface finish, requiring additional grinding and polishing to achieve close tolerances.
Brittleness: AlNiCo magnets are hard and brittle, making them prone to cracking during machining or handling.

2. Modern Sintering Method
2.1 Overview of Sintering
Sintering is a powder metallurgy process that involves compacting fine AlNiCo powder into a desired shape and then sintering it at high temperatures under a hydrogen atmosphere. This method is more economical for producing small magnets in high volumes and offers greater flexibility in shape design.

2.2 Step-by-Step Process

Powder Preparation: The raw materials are finely ground into powder form using milling techniques. The powder is then blended with additives like lubricants to improve flowability.
Pressing: The powdered magnetic material is pressed into a die under high pressure (several tonnes) to form a green compact that closely resembles the final shape.
Sintering: The green compacts are sintered at high temperatures (typically above 1200°C) under a hydrogen atmosphere to achieve full density and optimal magnetic properties.
Controlled Cooling: After sintering, the magnets are cooled at a controlled rate to prevent cracking and ensure uniform microstructure.
Coating and Finishing: The sintered magnets may be coated with protective layers to enhance corrosion resistance and finished machined to achieve close tolerances.
Final Magnetization: The magnets are magnetized using similar techniques as casting to align the magnetic domains.

2.3 Advantages of Sintering

Economical for High-Volume Production: Sintering is more cost-effective for producing small magnets in large quantities due to lower tooling costs and faster production cycles.
Shape Flexibility: The powder metallurgy process allows for the production of complex shapes with features like gear teeth and thin walls, which are difficult to achieve with casting.
Reduced Brittleness: Sintered AlNiCo magnets exhibit lower brittleness compared to cast magnets, making them easier to handle and machine.

2.4 Limitations of Sintering

Lower Magnetic Properties: Sintered AlNiCo magnets generally have lower remanence and coercivity compared to cast magnets, limiting their use in high-performance applications.
Size Limitations: Sintering is more suitable for producing small magnets weighing grams rather than kilograms, as larger magnets may suffer from density variations and reduced mechanical strength.
Surface Finish: While sintered magnets can achieve close tolerances without secondary finishing, their surface finish may still require polishing for certain applications.

3. Comparison of Traditional and Modern Techniques
3.1 Magnetic Properties
Cast AlNiCo magnets exhibit superior magnetic properties compared to sintered magnets due to their higher remanence and coercivity. This makes cast magnets more suitable for applications requiring strong magnetic fields, such as aerospace generators and military radar systems. Sintered magnets, while having lower magnetic properties, are still adequate for many industrial and consumer applications where cost and shape flexibility are more critical.

3.2 Production Costs
Casting involves higher initial tooling costs due to the need for molds, making it less economical for low-volume production. However, for large magnets and complex shapes, casting remains the most cost-effective method due to its ability to produce high-quality magnets in a single step. Sintering, on the other hand, has lower tooling costs and faster production cycles, making it ideal for high-volume production of small magnets.

3.3 Shape Flexibility
Both casting and sintering offer shape flexibility, but in different ways. Casting allows for the production of intricate shapes with large dimensions, while sintering enables the creation of complex geometries with fine features. The choice between the two methods depends on the specific shape requirements of the application.

3.4 Mechanical Properties
Cast AlNiCo magnets are harder and more brittle than sintered magnets, making them prone to cracking during machining or handling. Sintered magnets, while still brittle, exhibit lower brittleness and are easier to machine and handle. This makes sintered magnets more suitable for applications requiring tight tolerances and frequent handling.

3.5 Applications
Cast AlNiCo magnets are widely used in aerospace and military applications where high magnetic performance and thermal stability are critical. Examples include aircraft generators, radar systems, and missile guidance mechanisms. Sintered AlNiCo magnets are more commonly found in industrial and consumer applications such as sensors, actuators, and loudspeakers, where cost and shape flexibility are more important than absolute magnetic performance.

4. Emerging Trends and Innovations
4.1 Additive Manufacturing
Recent advancements in additive manufacturing (3D printing) have opened up new possibilities for producing AlNiCo magnets with complex geometries and customized magnetic properties. Additive manufacturing allows for the layer-by-layer deposition of AlNiCo powder, enabling the creation of magnets with intricate internal structures and optimized magnetic field distributions. While still in the early stages of development, additive manufacturing has the potential to revolutionize the production of AlNiCo magnets by reducing waste, shortening lead times, and enabling on-demand manufacturing.

4.2 Hybrid Manufacturing Techniques
Hybrid manufacturing techniques that combine casting and sintering are also being explored to leverage the advantages of both methods. For example, some manufacturers are using casting to produce the core of a magnet and then sintering a thin layer of AlNiCo powder onto the surface to enhance magnetic properties. This approach allows for the production of magnets with high magnetic performance and complex shapes at a lower cost than traditional casting.

4.3 Advanced Heat Treatment
Advanced heat treatment techniques, such as hot isostatic pressing (HIP) and spark plasma sintering (SPS), are being investigated to improve the mechanical and magnetic properties of AlNiCo magnets. These techniques involve applying high pressure and temperature to the magnets during sintering, resulting in denser microstructures and enhanced magnetic performance. While still under development, these advanced heat treatment methods have the potential to produce AlNiCo magnets with superior properties for high-performance applications.

5. Conclusion
The manufacturing of AlNiCo magnets involves two primary methods: casting and sintering. Casting is the traditional method that offers strong magnetic properties and the ability to produce large, complex shapes, making it ideal for aerospace and military applications. Sintering, on the other hand, is a more modern and economical method that provides shape flexibility and cost-effectiveness for high-volume production of small magnets. While both methods have their advantages and limitations, emerging trends such as additive manufacturing, hybrid techniques, and advanced heat treatment are opening up new possibilities for producing AlNiCo magnets with enhanced properties and customized designs. As technology continues to evolve, the manufacturing of AlNiCo magnets will undoubtedly become more efficient, cost-effective, and versatile, further expanding their applications in various industries.

1. Introduction to AlNiCo Magnets
AlNiCo (Aluminum-Nickel-Cobalt) magnets, developed in the 1930s, were once the dominant permanent magnetic materials due to their exceptional high remanence (Br) and low temperature coefficient, enabling stable performance at temperatures exceeding 600°C. Despite being superseded by rare-earth magnets (e.g., NdFeB) in high-energy applications, AlNiCo remains indispensable in instrumentation, sensors, and aerospace due to its corrosion resistance, thermal stability, and low coercivity (Hcb).

This article explores the microstructural origins of AlNiCo’s high Br and low Hcb, the role of manufacturing processes, and whether these properties can be reversed or tuned via process optimization.


2. Microstructural Basis of High Remanence
2.1 Phase Composition and Domain Alignment
AlNiCo’s magnetic properties stem from its two-phase microstructure:


Strongly ferromagnetic Fe-Co-rich α₁ phase (elongated, rod-like grains).
Weakly ferromagnetic Ni-Al-rich γ phase (matrix phase).

The α₁ phase, with high saturation magnetization (Ms), contributes dominantly to remanence (Br). During directional solidification (casting), the α₁ grains align along the easy magnetization axis (c-axis), forming a columnar structure that maximizes domain alignment. This preferred orientation reduces magnetic anisotropy energy, allowing domains to remain aligned post-magnetization, thus sustaining high Br (up to 1.35 T).

2.2 Role of Cobalt and Alloying Elements

Cobalt (Co) enhances Curie temperature (Tc) and magnetic hardness by stabilizing the α₁ phase. High-Co grades (e.g., Alnico 8) exhibit higher Br due to increased Fe-Co alloying.
Copper (Cu) and titanium (Ti) promote phase separation during solidification, refining the α₁ grains and improving domain wall pinning, which indirectly supports Br retention.

2.3 Comparison with Other Magnet Types




Magnet Type
Br (T)
Key Microstructural Feature




Cast Anisotropic AlNiCo
1.0–1.35
Aligned α₁ rods in γ matrix


Sintered AlNiCo
0.8–1.2
Randomly oriented α₁ grains (lower Br)


NdFeB
1.3–1.5
Nanoscale Nd₂Fe₁₄B grains (higher Br but lower Tc)




Conclusion: AlNiCo’s high Br arises from aligned, elongated α₁ grains with high Ms, optimized via directional solidification.


3. Microstructural Basis of Low Coercivity
3.1 Shape Anisotropy vs. Magnetocrystalline Anisotropy
Coercivity (Hcb) depends on resistance to domain wall motion. AlNiCo exhibits:


Low magnetocrystalline anisotropy (K₁): The α₁ phase has cubic symmetry, resulting in weak intrinsic pinning of domain walls.
High shape anisotropy: Elongated α₁ grains create easy magnetization axes along their length, reducing demagnetizing fields but also lowering the energy barrier for domain wall reversal.

3.2 Role of Defects and Grain Boundaries

Cast AlNiCo: The columnar structure has few grain boundaries, minimizing pinning sites for domain walls. This leads to low Hcb (40–70 kA/m).
Sintered AlNiCo: Powder compaction introduces porosity and microcracks, which act as weak pinning centers, slightly increasing Hcb (45–65 kA/m) but still below rare-earth magnets.

3.3 Comparison with High-Coercivity Magnets




Magnet Type
Hcb (kA/m)
Key Coercivity Mechanism




Cast Anisotropic AlNiCo
40–70
Weak shape anisotropy, few pinning sites


NdFeB
800–2400
Strong magnetocrystalline anisotropy (K₁)


Ferrite
150–300
High porosity and grain boundary pinning




Conclusion: AlNiCo’s low Hcb stems from weak intrinsic pinning (low K₁) and few extrinsic defects (grain boundaries) in its columnar microstructure.


4. Can Process Parameters Reverse High Br and Low Hcb?
4.1 Casting Process Optimization
4.1.1 Directional Solidification (Anisotropic Casting)

Effect on Br: Maximizes Br by aligning α₁ grains.
Effect on Hcb: Minimizes Hcb by reducing grain boundaries.
Reversibility: No—anisotropic casting enhances Br but further reduces Hcb.

4.1.2 Isotropic Casting

Effect on Br: Random grain orientation reduces Br (0.6–0.9 T).
Effect on Hcb: Slightly increases Hcb (30–50 kA/m) due to more grain boundaries.
Reversibility: Partial—isotropic casting lowers Br while increasing Hcb, but Hcb remains low compared to ferrite or NdFeB.

4.2 Sintering Process Optimization
4.2.1 Powder Compaction and Sintering

Effect on Br: Random grain orientation reduces Br (0.8–1.2 T).
Effect on Hcb: Introduces porosity and microcracks, increasing Hcb (45–65 kA/m).
Reversibility: Partial—sintering reduces Br while increasing Hcb, but Hcb is still limited by AlNiCo’s low K₁.

4.2.2 Hot Deformation (Thixoforming)

Emerging technique where semi-solid AlNiCo is deformed under pressure.
Potential: Can induce partial alignment of α₁ grains, increasing Br while maintaining moderate Hcb.
Current Limitations: Still under research; not yet a standard industrial process.

4.3 Heat Treatment Innovations
4.3.1 Magnetic Field Annealing

Effect on Br: Enhances domain alignment, increasing Br.
Effect on Hcb: Minimal impact—Hcb remains low due to weak pinning.
Reversibility: No—field annealing improves Br but does not increase Hcb.

4.3.2 Two-Step Aging (for High-Co Grades)

Mechanism: Promotes spinodal decomposition, forming Co-rich α₁ regions with higher Ms.
Effect on Br: Increases Br by ~5–10%.
Effect on Hcb: Slightly increases Hcb due to enhanced phase contrast, but still low.
Reversibility: No—aging boosts Br but does not fundamentally alter Hcb.

4.4 Summary of Process-Induced Reversibility




Process Modification
Effect on Br
Effect on Hcb
Reversibility of High Br/Low Hcb Trait




Anisotropic Casting
↑ (Maximized)
↓ (Minimized)
No—enhances trait


Isotropic Casting
↓ (Reduced)
↑ (Slightly)
Partial—reduces Br, increases Hcb


Sintering
↓ (Reduced)
↑ (Moderately)
Partial—reduces Br, increases Hcb


**Hot Deformation (Experimental)
↑ (Slightly)
↑ (Moderately)
Potential—under research


Magnetic Field Annealing
↑ (Enhanced)
↔ (Unchanged)
No—improves Br only


Two-Step Aging
↑ (Slightly)
↑ (Slightly)
No—minor improvements only




Conclusion: While isotropic casting and sintering can reduce Br and increase Hcb, AlNiCo’s fundamental low coercivity (due to weak K₁) cannot be fully reversed to match rare-earth magnets. Process optimizations can tune the Br/Hcb balance, but AlNiCo will always remain a high-Br, low-Hcb material by design.


5. Future Directions: Beyond Conventional Processing
5.1 Nanocrystallization via Rapid Solidification

Concept: Produce nanoscale α₁ grains to enhance grain boundary pinning, increasing Hcb.
Challenge: May reduce Br due to disordered domains at nanoscale.
Status: Experimental; not yet commercialized.

5.2 Additive Manufacturing (3D Printing)

Potential: Enable complex anisotropic structures with tailored grain orientation, optimizing Br and Hcb locally.
Challenge: High cost and limited resolution for fine α₁ rods.
Status: Early-stage research.

5.3 Hybrid Magnet Design

Approach: Combine AlNiCo with high-Hcb materials (e.g., ferrite) in a composite structure.
Goal: Achieve high Br from AlNiCo and high Hcb from ferrite in a single component.
Status: Patent-pending technologies; no mass production yet.


6. Conclusion
AlNiCo magnets derive their high remanence from aligned, elongated α₁ grains with high saturation magnetization, while their low coercivity stems from weak magnetocrystalline anisotropy and few pinning sites in the columnar microstructure.

Process optimizations (e.g., isotropic casting, sintering) can reduce Br and increase Hcb, but AlNiCo’s fundamental low-Hcb nature cannot be fully reversed due to its intrinsic magnetic properties. Future advancements in nanocrystallization, additive manufacturing, and hybrid designs may offer new pathways to tune Br and Hcb, but AlNiCo will likely remain a specialized material for high-Br, low-Hcb applications where thermal stability and corrosion resistance are paramount.

For applications requiring high coercivity, rare-earth magnets (NdFeB, SmCo) or optimized ferrites remain the superior choice.

Alnico magnets, while known for their excellent thermal stability and corrosion resistance, exhibit relatively low magnetic energy products (BHmax) compared to rare-earth magnets like Nd-Fe-B. This paper explores methods to enhance the BHmax of Alnico, including dual-phase structure control, grain refinement, and cobalt content optimization. It evaluates the cost-effectiveness of these modifications by considering material costs, processing complexity, and performance improvements. The analysis concludes that while significant enhancements in BHmax are achievable, the cost-effectiveness of Alnico remains inferior to Nd-Fe-B in most high-performance applications, though Alnico retains niche advantages in high-temperature environments.

1. Introduction
Alnico magnets, composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), and iron (Fe), have been a cornerstone of permanent magnet technology since their development in the 1930s. Their magnetic properties arise from a spinodal decomposition process during heat treatment, forming a two-phase microstructure of ferromagnetic α₁ (Fe-Co rich) and weakly magnetic α₂ (Ni-Al rich) phases. The shape anisotropy of elongated α₁ particles provides coercivity, while their alignment and distribution influence remanence (Br) and BHmax. Despite their advantages in thermal stability (Curie temperatures >800°C), Alnico magnets suffer from lower BHmax (typically 5–12 MGOe) compared to Nd-Fe-B (35–55 MGOe) and Sm-Co (20–30 MGOe). This limitation has spurred research into process modifications to enhance BHmax while maintaining cost-effectiveness.

2. Methods to Enhance BHmax in Alnico
2.1 Dual-Phase Structure Control
The BHmax of Alnico is critically dependent on the morphology and distribution of the α₁ and α₂ phases. Traditional spinodal decomposition produces interconnected α₁ particles, which are susceptible to magnetization reversal via domain-wall propagation. Dual-phase structure control aims to optimize the size, shape, and spatial arrangement of these phases to maximize domain-wall pinning.

2.1.1 Magnetic Field-Assisted Heat Treatment
Applying a magnetic field during the spinodal decomposition stage (e.g., cooling from 900°C to 700°C at 0.1–2°C/s) aligns the elongated α₁ particles along the field direction, enhancing shape anisotropy. Studies show that field-assisted cooling can increase BHmax by 20–30% compared to non-field cooling. For example, Alnico 8 magnets treated in a 120 kA/m field exhibit BHmax values up to 10 MGOe, compared to ~8 MGOe without field assistance.

2.1.2 Cobalt Content Optimization
Increasing Co content enhances the magnetocrystalline anisotropy of the α₁ phase, thereby improving BHmax. However, Co is a strategic metal with volatile pricing, and excessive Co content can reduce remanence due to increased interphase contrast. A balance is achieved by adjusting Co content to 18–24 wt%, where BHmax peaks at ~12 MGOe. For instance, Alnico 9 (24% Co) achieves BHmax of 11–12 MGOe, while higher Co content (30%) leads to a decline in BHmax due to reduced remanence.

2.1.3 Alloying Element Additions
Doping Alnico alloys with trace elements like titanium (Ti), copper (Cu), or zirconium (Zr) can refine the α₁ phase and improve its aspect ratio (length-to-diameter ratio). Ti additions, for instance, increase the aspect ratio of α₁ particles from ~5:1 to ~10:1, leading to a 15–20% increase in BHmax. Similarly, Cu partitions into the α₂ phase, reducing its magnetic permeability and enhancing interphase contrast, which further stabilizes domain walls.

2.2 Grain Refinement
Grain refinement reduces the average crystallite size, increasing the density of grain boundaries that act as pinning sites for domain walls. This approach is grounded in the theoretical relationship BHmax​∝1/D, where D is the grain diameter, indicating that smaller grains yield higher BHmax.

2.2.1 Rapid Solidification Techniques
Chill casting or melt spinning can produce Alnico alloys with grain sizes below 1 μm, compared to ~10–50 μm in conventionally cast magnets. Rapid solidification suppresses coarse grain growth and promotes homogeneous nucleation, resulting in a finer two-phase microstructure. Experimental data show that grain refinement via melt spinning can increase BHmax by 30–40%, with values reaching ~14 MGOe in optimized Alnico 9 alloys.

2.2.2 Mechanical Alloying and Hot Deformation
Mechanical alloying (MA) followed by hot deformation (e.g., extrusion or rolling) can further refine grains and introduce dislocations that act as additional pinning centers. MA breaks down coarse precipitates into nanoscale particles, while hot deformation aligns these particles along the deformation axis, creating a textured microstructure. This combined approach has been shown to increase BHmax by up to 50% in Alnico 5 alloys, with values approaching 15 MGOe.

2.3 Defect Engineering
Introducing controlled defects, such as dislocations or stacking faults, can enhance domain-wall pinning and improve BHmax. For example, cold deformation followed by annealing can create a high density of dislocations that interact with domain walls, increasing coercivity and BHmax. However, excessive deformation can lead to crack formation, reducing mechanical integrity and magnetic performance.

3. Cost-Effectiveness Analysis
While process modifications can significantly enhance BHmax in Alnico, their cost-effectiveness must be evaluated relative to alternative materials like Nd-Fe-B and Sm-Co. The following factors influence the economic viability of modified Alnico:

3.1 Material Costs

Cobalt Pricing: Co is a critical component of Alnico, accounting for ~40–60% of the total material cost. The price of Co has fluctuated between 20,000and80,000 per ton over the past decade, making Alnico vulnerable to market volatility. In contrast, Nd-Fe-B relies on neodymium (Nd) and iron (Fe), which are more abundant and less expensive.
Rare-Earth Availability: While Nd-Fe-B magnets require rare-earth elements like Nd and dysprosium (Dy), China dominates global rare-earth production, ensuring stable supply and lower costs for Nd-Fe-B compared to Co-dependent Alnico.

3.2 Processing Complexity

Heat Treatment: Field-assisted heat treatment and rapid solidification techniques require specialized equipment and precise control, increasing production costs by 20–30% compared to conventional heat treatment.
Mechanical Alloying: MA involves high-energy ball milling, which is energy-intensive and time-consuming, adding ~15–20% to the total processing cost.
Hot Deformation: Extrusion or rolling processes require additional capital investment in deformation equipment and tooling, raising production costs by 10–15%.

3.3 Performance Improvements

BHmax Enhancement: Modified Alnico magnets can achieve BHmax values of 12–15 MGOe, representing a 50–70% improvement over baseline values. However, this remains inferior to Nd-Fe-B (35–55 MGOe) and Sm-Co (20–30 MGOe).
Thermal Stability: Alnico retains its magnetic properties at temperatures up to 500°C, whereas Nd-Fe-B begins to demagnetize above 150–200°C. This makes Alnico irreplaceable in high-temperature applications where Nd-Fe-B is unsuitable.

3.4 Application-Specific Cost-Effectiveness

Aerospace and Defense: In applications like gyroscopes and traveling-wave tubes, where thermal stability and reliability are paramount, modified Alnico magnets justify their higher cost due to their superior performance at elevated temperatures.
Electric Motors and Generators: In high-temperature electric motors (e.g., those in hybrid vehicles or industrial machinery), Alnico magnets resist demagnetization better than Nd-Fe-B or ferrite magnets. A case study by a leading automotive supplier demonstrated that replacing ferrite magnets with modified Alnico 5 magnets in a traction motor increased operating efficiency by 2% at 200°C, despite the higher cost of Alnico.
Sensor Technologies: In Hall-effect sensors and magnetic switches, where temperature-induced drift must be minimized, Alnico magnets offer a cost-effective solution compared to Nd-Fe-B, which requires additional thermal stabilization.

4. Comparative Analysis with Other Magnet Systems
To contextualize the cost-effectiveness of modified Alnico, it is instructive to compare it with other magnet classes:





Magnet Type
BHmax Range (MGOe)
Key Advantages
Key Disadvantages




Alnico (Baseline)
5–8
High thermal stability, corrosion resistance
Low BHmax, susceptible to external fields


Alnico (Modified)
12–15
Enhanced BHmax, retains thermal stability
High material and processing costs


Ferrite
3–5
Low cost, high coercivity
Low remanence, brittle


Nd-Fe-B
35–55
Highest BHmax, compact size
Low thermal stability, high cost


Sm-Co
20–30
High thermal stability, high BHmax
Very high cost, brittle




While modified Alnico narrows the BHmax gap with ferrite and Sm-Co magnets, it remains far below Nd-Fe-B in terms of maximum energy product. However, Alnico’s superior thermal stability makes it irreplaceable in high-temperature applications where Nd-Fe-B magnets demagnetize irreversibly.

5. Future Directions
To improve the cost-effectiveness of modified Alnico magnets, future research should focus on the following areas:

5.1 Cobalt Reduction Strategies
Developing low-Co or Co-free Alnico alloys by substituting Co with alternative elements like iron (Fe) or gadolinium (Gd) could reduce material costs while maintaining magnetic performance. For example, Gd-Fe alloys exhibit high magnetocrystalline anisotropy, potentially offsetting the loss of Co.

5.2 Hybrid Magnet Designs
Combining Alnico with soft magnetic phases (e.g., Fe-Si or amorphous alloys) in exchange-spring magnets could further boost BHmax while maintaining high remanence. Early prototypes of Alnico/Fe-Si nanocomposites have shown BHmax values >15 MGOe, though challenges remain in controlling interphase coupling and reducing eddy-current losses.

5.3 Additive Manufacturing
Additive manufacturing (AM) techniques like selective laser melting (SLM) or binder jetting could enable the production of complex-shaped Alnico magnets with optimized microstructures. AM allows for precise control over grain size and orientation, potentially reducing processing costs and improving performance.

5.4 Computational Optimization
Machine learning models trained on large datasets of Alnico microstructures and heat-treatment parameters can predict optimal processing routes for targeted BHmax values. For instance, a recent study used a genetic algorithm to identify Ti-doping levels and cooling rates that maximize BHmax in Alnico 9, reducing experimental trial-and-error by 70%.

6. Conclusion
Process modifications such as dual-phase structure control, grain refinement, and cobalt content optimization offer viable pathways to enhance the BHmax of Alnico magnets by 50–70%, with practical upper limits near 12–15 MGOe. These enhancements, driven by improved domain-wall pinning and shape anisotropy, enable Alnico magnets to compete with ferrite and Sm-Co magnets in high-temperature and high-stability applications. However, achieving further breakthroughs will require interdisciplinary approaches combining advanced materials science, computational modeling, and cost-effective manufacturing. As industries demand magnets that operate reliably in harsher environments, modified Alnico alloys are poised to remain indispensable in critical technologies for decades to come.
