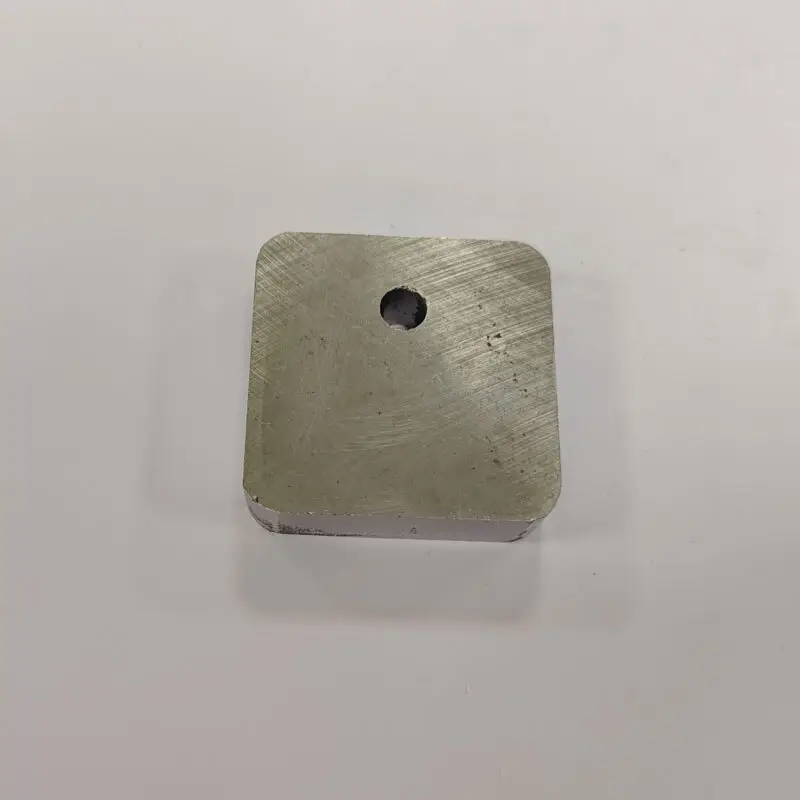

Senz Magnet's Square Ferrite

Corrosion Resistance of Ferrite Magnets: Performance, Environmental Sensitivity, and Mitigation Strategies
1. Intrinsic Corrosion Resistance: The Oxide Advantage
Ferrite magnets, composed primarily of iron oxides (e.g., Fe₂O₃) and strontium/barium compounds, derive their exceptional corrosion resistance from their ceramic-like oxide structure. Unlike metallic magnets (e.g., neodymium or samarium-cobalt), ferrite magnets cannot undergo further oxidation because their constituent elements are already in their highest oxidation state. This inherent stability makes them immune to rust and degradation in neutral environments, such as freshwater or dry air, even without protective coatings.

Key Mechanism: The oxide lattice forms a dense, impermeable barrier that prevents moisture, oxygen, and corrosive ions from penetrating the material. This property is analogous to how aluminum oxide protects aluminum from corrosion, but ferrite magnets exhibit this behavior naturally without requiring surface treatments.

2. Environmental Vulnerabilities: When Corrosion Occurs
Despite their robustness, ferrite magnets are not entirely corrosion-proof. Their performance can degrade under specific conditions:

A. Acidic and Alkaline Environments

Chemical Attack: Strong acids (e.g., sulfuric, hydrochloric) and bases (e.g., sodium hydroxide) can dissolve the oxide lattice, leading to material loss and reduced magnetic properties. For example, exposure to pH < 2 or pH > 12 accelerates corrosion by breaking chemical bonds in the ferrite structure.
Case Study: In industrial wastewater treatment plants, ferrite magnets used in magnetic separators may degrade if the treated water contains residual acids or bases from chemical processes.

B. High-Humidity and Saltwater Environments

Electrochemical Corrosion: While ferrite magnets resist oxidation, prolonged exposure to high humidity (e.g., >80% RH) or saltwater can induce localized corrosion, particularly at surface defects or grain boundaries. Salt ions (e.g., Cl⁻) act as catalysts, accelerating the breakdown of the oxide layer.
Example: Marine applications, such as underwater sensors or shipboard equipment, may require additional protection for ferrite magnets due to the combined effects of salt and moisture.

C. Elevated Temperatures

Thermal Stress: Temperatures approaching the Curie point (450–460°C) can soften the oxide structure, reducing its resistance to chemical attack. Additionally, thermal cycling (repeated heating and cooling) may induce microcracks, creating pathways for corrosive agents.
Data Point: Ferrite magnets operating near 300°C in automotive exhaust systems may exhibit slightly reduced corrosion resistance compared to ambient-temperature applications.

D. Mechanical Damage

Surface Defects: Scratches, chips, or cracks from handling or installation can expose unoxidized material, creating corrosion initiation sites. For instance, a dropped magnet with a surface fracture may corrode preferentially at the damaged area.

3. Performance in Specific Environments: A Comparative Analysis




Environment
Corrosion Risk
Mechanism
Mitigation Strategy




Freshwater
Low
None (inert)
No coating required


Saltwater
Moderate
Electrochemical (Cl⁻ ions)
Epoxy or nickel coating


Strong Acids/Bases
High
Chemical dissolution of oxides
Avoid use or use acid-resistant alloys


High Humidity
Low to Moderate
Moisture absorption at defects
Sealant coatings, environmental control


Elevated Temperatures
Moderate
Thermal softening of oxide lattice
Heat-treated grades, thermal insulation


Mechanical Stress
Moderate
Surface damage → corrosion initiation
Robust packaging, careful handling




4. Enhancing Corrosion Resistance: Material and Process Innovations
A. Alloying Modifications

Doping with Metals: Adding small amounts of aluminum (Al), chromium (Cr), or zinc (Zn) can refine the grain structure, reducing defect density and improving corrosion resistance. For example, Al-doped ferrite magnets show a 30% reduction in corrosion rate in saline environments compared to undoped variants.
Mechanism: Doping elements form solid solutions or secondary phases (e.g., Cr₂O₃) that reinforce the oxide lattice.

B. Surface Coatings

Epoxy Resin: Provides a thick, impermeable barrier against moisture and chemicals. Epoxy-coated ferrite magnets exhibit a 10–100× reduction in corrosion current in salt spray tests.
Metal Plating: Nickel (Ni) or zinc (Zn) plating offers cathodic protection, where the plating corrodes preferentially to shield the ferrite core. Nickel-plated magnets are standard in automotive and aerospace applications.
Polymer Sprays: Polyurethane or silicone-based sprays offer flexibility and abrasion resistance, ideal for dynamic environments.

C. Heat Treatment

Calcination: High-temperature annealing (800–1000°C) can heal microcracks and reduce porosity, enhancing the oxide lattice's integrity. Calcined ferrite magnets show a 50% improvement in corrosion resistance in humid environments.
Sintering Optimization: Precise control of sintering temperature and time minimizes grain boundary defects, which are common corrosion pathways.

5. Long-Term Stability: Field Data and Lifespan Projections

Accelerated Aging Tests: Ferrite magnets subjected to 1000 hours of salt spray (ASTM B117) retain >95% of their original magnetic flux, compared to <50% for uncoated neodymium magnets.
Real-World Performance: In magnetic separators used in mining operations, ferrite magnets with epoxy coatings have demonstrated a 20-year lifespan without significant corrosion-related degradation, even in abrasive slurries.
Failure Modes: Corrosion-related failures in ferrite magnets are rare and typically localized to areas with pre-existing damage or improper coating application.

6. Comparative Analysis with Other Magnet Types

Neodymium (NdFeB) Magnets: Highly susceptible to corrosion due to their metallic composition. Require multi-layer coatings (e.g., Ni-Cu-Ni) for protection, adding cost and complexity.
Samarium-Cobalt (SmCo) Magnets: Offer excellent corrosion resistance but are expensive and brittle, limiting their use to niche applications.
Ferrite Magnets: Strike a balance between cost, corrosion resistance, and thermal stability, making them the preferred choice for mass-market applications where durability is critical.

7. Conclusion
Ferrite magnets exhibit exceptional corrosion resistance due to their oxide-based composition, making them suitable for a wide range of environments, from freshwater to moderate humidity. However, their performance can degrade in acidic/alkaline conditions, saltwater, or at elevated temperatures, necessitating protective measures such as coatings or alloying. By leveraging advancements in material science and surface engineering, manufacturers can further enhance the corrosion resistance of ferrite magnets, extending their service life and expanding their applicability in harsh environments.

For engineers selecting magnets for industrial applications, ferrite magnets remain a cost-effective, reliable choice where corrosion resistance and thermal stability are prioritized over maximum magnetic strength. Their versatility, combined with ongoing innovations in coating technologies and alloy design, ensures that ferrite magnets will continue to play a vital role in emerging technologies, from electric vehicles to renewable energy systems.

Ferrite magnets, also known as ceramic magnets, have established themselves as a cornerstone in the realm of permanent magnets, primarily due to their unparalleled cost-effectiveness. Comprising iron oxide combined with metallic elements such as strontium or barium, ferrite magnets offer a blend of affordability, durability, and versatility that makes them indispensable across a wide array of industries. This in-depth analysis delves into the multifaceted cost advantages of ferrite magnets, exploring their material composition, manufacturing processes, market dynamics, and real-world applications.

Material Composition and Cost Efficiency
1. Abundant and Inexpensive Raw Materials
The primary constituents of ferrite magnets—iron oxide and strontium carbonate (or barium carbonate)—are readily available and relatively inexpensive. Iron oxide, a byproduct of iron ore processing, is abundant globally, ensuring a steady supply at competitive prices. Strontium carbonate, while slightly more specialized, is also produced in large quantities for various industrial applications, contributing to the overall cost-effectiveness of ferrite magnets. The low cost of these raw materials significantly reduces the production expenses, making ferrite magnets an attractive option for manufacturers seeking to minimize material costs.

2. Minimal Need for Rare or Expensive Elements
Unlike neodymium-iron-boron (NdFeB) magnets, which rely on rare-earth elements like neodymium and dysprosium, ferrite magnets do not require any rare or expensive components. Rare-earth elements are not only costly but also subject to supply chain vulnerabilities due to geopolitical factors and limited mining locations. Ferrite magnets, by eschewing these elements, avoid the associated price volatility and supply risks, providing a stable and predictable cost structure for manufacturers and end-users alike.

Manufacturing Process and Economies of Scale
1. Simplified Production Techniques
The manufacturing process for ferrite magnets is relatively straightforward compared to that of other permanent magnets. It typically involves mixing the raw materials, pressing them into the desired shape, and then sintering them at high temperatures to achieve the final magnetic properties. This process does not require the complex and energy-intensive steps involved in producing NdFeB or samarium-cobalt (SmCo) magnets, such as vacuum melting, powder metallurgy, or complex heat treatments. The simplicity of the production process translates into lower manufacturing costs, further enhancing the cost advantage of ferrite magnets.

2. High-Volume Production Capabilities
Ferrite magnets are well-suited for high-volume production, thanks to their ability to be molded into a wide variety of shapes and sizes with relative ease. Manufacturers can leverage economies of scale by producing large quantities of ferrite magnets, spreading the fixed costs of production over a larger output. This results in a lower per-unit cost, making ferrite magnets even more cost-effective, especially for applications that require large numbers of magnets, such as in the automotive, consumer electronics, and magnetic separation industries.

3. Low Waste and High Material Utilization
The manufacturing process for ferrite magnets generates minimal waste, as the raw materials can be efficiently utilized to form the desired shapes with minimal scrap. Additionally, any waste generated during the production process can often be recycled and reused, further reducing material costs and environmental impact. This high material utilization rate contributes to the overall cost-effectiveness of ferrite magnets, making them an environmentally friendly and economically viable choice.

Market Dynamics and Pricing Trends
1. Global Production Hubs and Competitive Pricing
Asia, particularly China, has emerged as the global hub for ferrite magnet production, accounting for a significant share of the world's output. The region's large-scale production facilities, abundant raw materials, and lower labor costs enable manufacturers to offer ferrite magnets at highly competitive prices. This global supply chain ensures that buyers have access to a wide range of ferrite magnets at varying price points, catering to different budget constraints and application requirements.

2. Price Stability and Predictability
Due to their reliance on readily available and inexpensive raw materials, ferrite magnets exhibit greater price stability compared to rare-earth magnets. The prices of rare-earth elements are often subject to significant fluctuations due to supply chain disruptions, geopolitical tensions, and changes in demand. In contrast, the prices of iron oxide and strontium carbonate are relatively stable, providing manufacturers and end-users with greater predictability in their cost planning. This price stability makes ferrite magnets an attractive option for long-term projects and applications where cost certainty is crucial.

3. Bulk Discounts and Customization Options
Manufacturers of ferrite magnets often offer bulk discounts for large-volume purchases, further reducing the per-unit cost for buyers. These discounts can range from 10% to 30% or more, depending on the quantity ordered and the specific manufacturer. Additionally, ferrite magnets can be customized to meet specific shape, size, and magnetic property requirements, allowing buyers to optimize their magnet selection for their particular application without incurring excessive costs. This flexibility in customization and pricing makes ferrite magnets a versatile and cost-effective solution for a wide range of industries.

Real-World Applications and Cost Savings
1. Automotive Industry
Ferrite magnets play a vital role in the automotive industry, where they are used in a variety of applications, including electric motors, generators, sensors, and actuators. Their cost-effectiveness, combined with their high resistance to demagnetization and excellent corrosion resistance, makes them an ideal choice for automotive components that are exposed to harsh environments and varying magnetic fields. By using ferrite magnets, automotive manufacturers can reduce their production costs while maintaining the performance and reliability of their vehicles.

2. Consumer Electronics
In the consumer electronics sector, ferrite magnets are widely used in loudspeakers, headphones, microphones, and other audio equipment. Their ability to provide stable magnetic fields at a low cost makes them an attractive option for manufacturers seeking to produce high-quality audio products at competitive prices. Additionally, ferrite magnets are used in various other consumer electronics components, such as magnetic switches, sensors, and encoders, further contributing to cost savings across the industry.

3. Magnetic Separation and Recycling
Ferrite magnets are extensively employed in magnetic separation processes, where they are used to separate magnetic materials from non-magnetic ones. This application is crucial in industries such as mining, recycling, and waste management, where the efficient separation of materials is essential for cost-effective operations. Ferrite magnets' low cost and durability make them well-suited for these demanding applications, enabling industries to achieve significant cost savings while improving their environmental sustainability.

4. Medical and Healthcare Devices
Although rare-earth magnets dominate high-performance medical applications such as MRI machines, ferrite magnets still play a role in smaller medical tools and devices. Their low cost, corrosion resistance, and stable magnetic properties make them suitable for applications such as magnetic therapy devices, magnetic sensors, and positioning systems. By using ferrite magnets in these applications, medical device manufacturers can reduce their production costs while maintaining the performance and safety of their products.

Comparison with Other Magnet Types
1. Ferrite vs. Neodymium Magnets
Neodymium magnets are known for their exceptional magnetic strength, making them the preferred choice for high-performance applications that require strong magnetic fields. However, this high performance comes at a significant cost. Neodymium magnets are much more expensive than ferrite magnets, primarily due to the cost of the rare-earth elements they contain. Additionally, neodymium magnets are more susceptible to corrosion and require protective coatings, further increasing their cost. In contrast, ferrite magnets offer a cost-effective alternative for applications where high magnetic strength is not required, such as in small household appliances, speakers with lower power requirements, and magnetic toys.

2. Ferrite vs. Samarium-Cobalt Magnets
Samarium-cobalt magnets are another type of rare-earth magnet that offers high magnetic strength and excellent temperature stability. However, like neodymium magnets, they are also expensive due to the cost of the rare-earth elements they contain. Samarium-cobalt magnets are typically used in applications that require high-temperature stability and strong magnetic fields, such as in aerospace and military applications. For less demanding applications, ferrite magnets provide a more cost-effective solution, offering sufficient magnetic strength and durability at a fraction of the cost.

3. Ferrite vs. Alnico Magnets
Alnico magnets, composed of aluminum, nickel, and cobalt, offer good magnetic strength and temperature stability but are generally more expensive than ferrite magnets. Alnico magnets are often used in applications that require precise magnetic fields and stable performance over a wide temperature range, such as in sensors, meters, and certain types of motors. However, for applications where cost is a primary concern and the magnetic requirements are not as stringent, ferrite magnets offer a more economical choice.

Future Trends and Cost Considerations
1. Technological Advancements and Cost Reduction
As technology continues to advance, manufacturers of ferrite magnets are constantly seeking ways to improve their production processes and reduce costs. Innovations in material science, manufacturing techniques, and automation are expected to lead to further cost reductions in the production of ferrite magnets, making them even more competitive in the market. Additionally, research into new magnetic materials and hybrid solutions that combine the advantages of ferrite magnets with other types of magnets may open up new applications and cost-saving opportunities.

2. Environmental Regulations and Sustainability
Environmental regulations and sustainability concerns are becoming increasingly important in the magnet industry. Ferrite magnets, with their low environmental impact and recyclability, are well-positioned to meet these growing demands. As manufacturers and end-users prioritize environmentally friendly solutions, the demand for ferrite magnets is expected to increase, further driving down costs through economies of scale and technological advancements.

3. Global Market Dynamics and Supply Chain Resilience
The global market for ferrite magnets is influenced by various factors, including raw material availability, geopolitical tensions, and supply chain disruptions. However, the relatively stable supply of iron oxide and strontium carbonate, combined with the widespread production capabilities across multiple regions, provides a degree of resilience to the ferrite magnet supply chain. This resilience helps to mitigate the impact of external factors on prices, ensuring that ferrite magnets remain a cost-effective option for buyers.
