2. When to Replace NdFeB with Ferrite Magnets
2.1 Cost-Driven Applications

Economic Advantage: Ferrite magnets are 60–90% cheaper than NdFeB magnets due to their abundant raw materials (iron oxide, strontium/barium carbonate) and simple ceramic sintering process.
Mass Production: Ideal for high-volume, low-margin products like consumer electronics (speakers, refrigerator seals), toys, and automotive sensors.
Example: A ferrite magnet costs 0.01–0.10 per unit in bulk, versus 1–10 for NdFeB of equivalent size.

2.2 Temperature Stability

Operating Range: Ferrite magnets maintain stability from -40°C to 250°C, making them suitable for automotive under-hood components and industrial motors exposed to heat cycles.
NdFeB Limitation: NdFeB magnets lose 0.12% of their magnetization per °C above 60°C, requiring thermal stabilization in high-temperature environments.

2.3 Corrosion Resistance

Inherent Durability: Ferrite magnets do not require coatings, reducing manufacturing complexity and cost. NdFeB magnets, prone to rust, need epoxy, nickel, or zinc plating, adding 10–30% to their cost.

2.4 Low-Performance Requirements

Magnetic Strength: Ferrite magnets have a low energy product (4–5 MGOe), sufficient for applications like:

Magnetic Separators: Separating ferrous particles in mining (where high gradient fields are unnecessary).
Loudspeakers: Driving voice coils in budget audio systems.
Refrigerator Doors: Simple latching mechanisms.



3. When to Replace NdFeB with SmCo Magnets
3.1 High-Temperature Environments

Thermal Performance: SmCo magnets (grades SmCo5 and Sm2Co17) operate up to 300–550°C (Curie temperature: 700–800°C), far exceeding NdFeB’s 80–200°C limit.
Applications:

Aerospace: Actuators in jet engines or satellite components.
Medical: MRI machine gradient coils (though NdFeB dominates here due to cost).
Industrial: High-speed motors and generators in oil/gas drilling.



3.2 Corrosion Resistance

Natural Durability: SmCo magnets resist oxidation and chemical degradation without coatings, unlike NdFeB, which corrodes in humid or saline environments.
Use Case: Marine sensors, offshore wind turbines, and medical implants (e.g., pacemakers).

3.3 Demagnetization Resistance

High Coercivity: SmCo magnets have coercivity (20–32 kOe) comparable to NdFeB (10–15 kOe for standard grades), making them resistant to reverse magnetic fields or mechanical stress.
Applications: Electric vehicle traction motors, where high torque and durability are critical.

3.4 Radiation Resistance

Space Applications: SmCo magnets are preferred in satellites due to their stability under cosmic radiation, unlike NdFeB, which degrades over time.

4. Cost Comparison: NdFeB vs. Ferrite vs. SmCo





Parameter
NdFeB
Ferrite
SmCo




Raw Material Cost
High (rare earths)
Low (iron oxide)
Very High (cobalt, samarium)


Energy Product
40–52 MGOe
4–5 MGOe
16–33 MGOe


Temperature Limit
80–200°C
-40°C to 250°C
300–550°C


Corrosion Resistance
Requires coating
Excellent (no coating)
Excellent (no coating)


Cost per kg
50–200
2–10
200–500


Market Growth
4.6% CAGR (2024–2030)
Stable (low-cost niche)
3–5% CAGR (high-end niche)





5. Performance Trade-offs
5.1 Magnetic Strength vs. Cost

NdFeB: Unmatched strength-to-cost ratio for high-performance applications (e.g., electric vehicle motors, wind turbines).
Ferrite: Weak but sufficient for low-force applications (e.g., refrigerator seals).
SmCo: Moderate strength but justified in extreme environments (e.g., aerospace).

5.2 Thermal Stability

NdFeB: Requires grade selection (e.g., N42SH for 150°C) or thermal stabilization, increasing cost.
SmCo: No grade adjustments needed for high temperatures, simplifying design.

5.3 Brittleness and Machinability

NdFeB: Brittle but can be machined to tight tolerances (±0.05mm).
Ferrite: Very brittle, limited to simple shapes (±0.1mm tolerance).
SmCo: Most brittle, prone to chipping during handling or assembly.

6. Application-Specific Recommendations
6.1 Replace NdFeB with Ferrite When:

Budget is critical (e.g., consumer electronics, toys).
Operating temperature ≤250°C (e.g., automotive sensors).
Corrosion resistance is non-critical (e.g., dry indoor environments).
Magnetic strength ≥4 MGOe is sufficient (e.g., magnetic separators).

6.2 Replace NdFeB with SmCo When:

Operating temperature >200°C (e.g., aerospace actuators).
Corrosion or radiation resistance is mandatory (e.g., marine sensors, space systems).
Demagnetization risk is high (e.g., electric vehicle motors under reverse fields).

7. Future Trends

NdFeB: Advances in grain boundary diffusion (GBD) and recycled rare earths aim to reduce costs and improve thermal stability.
Ferrite: Innovations in recycled content (e.g., Germany’s 20% recycled ferrite blend) may lower costs further.
SmCo: Cobalt price volatility and supply chain risks may limit growth, but demand in defense and aerospace remains strong.

8. Conclusion
Ferrite and SmCo magnets offer viable alternatives to NdFeB in specific scenarios:


Ferrite: Best for cost-sensitive, low-performance, or moderate-temperature applications.
SmCo: Ideal for high-temperature, corrosive, or radiation-prone environments where NdFeB fails.

NdFeB remains the dominant choice for high-strength, compact applications, but material science advancements and shifting market demands will continue to redefine these magnets’ roles across industries.

Magnetic Energy Product Range of Ferrite Magnets

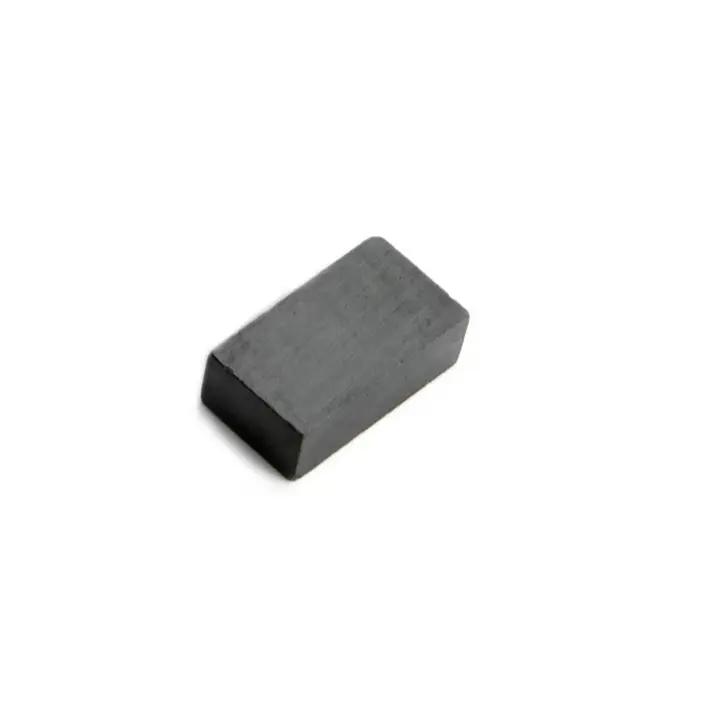

Ferrite magnets, also known as ceramic magnets, are composed primarily of iron oxide (Fe₂O₃) combined with barium or strontium carbonate. They are widely used in various applications due to their cost-effectiveness, corrosion resistance, and stability under high temperatures. The magnetic energy product (BHmax) is a key parameter that quantifies the maximum magnetic energy that can be stored in a magnet material. For ferrite magnets, the BHmax typically ranges from 230 to 430 MT (megatesla), which is equivalent to approximately 32 to 59 kJ/m³ or 1.8 to 4.2 MGOe (megagauss-oersteds). This range indicates that ferrite magnets generate weaker magnetic fields compared to high-performance magnets like neodymium iron boron (NdFeB) and samarium cobalt (SmCo) magnets, which have significantly higher BHmax values.

Characteristics of Residual Magnetism in Ferrite Magnets
Residual magnetism, often referred to as remanence (Br), is the magnetic field strength that remains in a magnet after it has been fully magnetized and then removed from the external magnetic field. For ferrite magnets, the residual magnetism is a critical parameter that determines their ability to maintain a stable magnetic field over time.


Magnitude: The residual magnetism of ferrite magnets typically falls within the range of 3.9 to 4.2 kilogauss (kG) or 390 to 420 millitesla (mT). This value is relatively lower compared to high-performance magnets but is sufficient for many applications where a strong magnetic field is not required.
Stability: Ferrite magnets exhibit good stability in their residual magnetism over time. Once magnetized, they can maintain their residual magnetic field for extended periods without significant degradation, making them suitable for permanent magnet applications.
Temperature Dependence: The residual magnetism of ferrite magnets is affected by temperature changes. As the temperature increases, the residual magnetism decreases slightly, but this effect is generally reversible when the temperature returns to normal ranges. Ferrite magnets have a negative temperature coefficient of induction (Br), meaning their residual magnetism decreases by about 0.2% per degree Celsius increase in temperature. However, their high intrinsic coercivity improves with temperature, enhancing their resistance to demagnetization at elevated temperatures.

Characteristics of Coercivity in Ferrite Magnets
Coercivity (Hc) is the magnetic field strength required to completely demagnetize a magnet that has been previously magnetized to its saturation flux density. It is a measure of a magnet's resistance to demagnetization and is crucial for determining the magnet's performance in dynamic magnetic circuit environments.


High Coercivity: Ferrite magnets are known for their high coercivity, which means they are very resistant to becoming demagnetized. This characteristic is essential for permanent magnets, as it ensures that the magnet maintains its magnetic properties over time and under various operating conditions. The coercivity of ferrite magnets can range from 170 to 400 kA/m (kiloamperes per meter), depending on the specific composition and manufacturing process.
Anti-Demagnetization Ability: Due to their high coercivity, ferrite magnets are suitable for working in environments with large temperature changes and dynamic magnetic fields. They can withstand demagnetizing forces and maintain their magnetic properties, making them ideal for applications such as motors, generators, and loudspeakers.
Temperature Coefficient: Ferrite magnets have a positive temperature coefficient of intrinsic coercivity (Hci), which means their coercivity increases with temperature. Specifically, the coercivity changes by about +0.27% per degree Celsius increase in temperature from ambient. This characteristic makes ferrite magnets more resistant to demagnetization at elevated temperatures, enhancing their performance in high-temperature applications. However, at very low temperatures, their coercivity may decrease, potentially leading to demagnetization if the magnet is exposed to extremely cold environments.

Practical Implications and Applications
The combination of moderate residual magnetism and high coercivity makes ferrite magnets suitable for a wide range of applications where cost-effectiveness, corrosion resistance, and stability under high temperatures are important. Some common applications include:


Motors and Generators: Ferrite magnets are widely used in electric motors, generators, and actuators due to their ability to maintain a stable magnetic field under dynamic conditions.
Loudspeakers: The high coercivity and good temperature stability of ferrite magnets make them ideal for use in loudspeakers, where they provide a consistent magnetic field for sound reproduction.
Magnetic Separators: Ferrite magnets are employed in magnetic separators to remove ferrous contaminants from liquids and powders due to their corrosion resistance and low cost.
Refrigeration and HVAC Systems: They are used in fan motors, pump motors, and compressors in refrigeration and heating, ventilation, and air conditioning (HVAC) systems.
Consumer Electronics: Ferrite magnets are found in various electronic devices, including speakers, magnetic latches, and sensors.
Automotive Industry: They are used in electric power steering systems, automotive sensors, and under-the-hood components due to their cost-effectiveness and corrosion resistance.

Ferrite magnets, also known as ceramic magnets, are widely used in various applications due to their cost-effectiveness, corrosion resistance, and relatively good temperature stability. However, like all magnetic materials, ferrite magnets can experience heating under certain conditions, which can affect their performance and longevity. This article explores the causes of heating in ferrite magnets and provides practical solutions to mitigate these issues.

Causes of Heating in Ferrite Magnets
1. Intrinsic Coercivity and Temperature Dependence
Ferrite magnets exhibit a unique characteristic where their intrinsic coercivity (the resistance to demagnetization) increases with temperature. This is in contrast to many other magnetic materials, such as neodymium magnets, which lose coercivity at elevated temperatures. The positive temperature coefficient of coercivity in ferrite magnets means that for every degree Celsius increase in temperature, the coercivity increases by approximately 0.27%. This property makes ferrite magnets more resistant to demagnetization at higher temperatures, but it also contributes to heating under certain conditions.

When a ferrite magnet is subjected to an alternating magnetic field or is part of a motor or generator that operates at high speeds, the changing magnetic field can induce eddy currents within the magnet. These eddy currents generate heat due to the electrical resistance of the ferrite material. As the temperature increases, the coercivity of the magnet also increases, which can further enhance the eddy current losses if the magnetic field is strong enough to overcome the increased coercivity. This creates a feedback loop where heating leads to increased coercivity, which in turn leads to more heating.

2. Hysteresis Losses
Hysteresis losses occur when the magnetic domains within a material are repeatedly reoriented as the magnetic field changes. This process requires energy, which is dissipated as heat. In ferrite magnets, hysteresis losses are a significant source of heating, especially in applications where the magnet is subjected to rapid changes in the magnetic field, such as in motors and generators.

The hysteresis loop of a ferrite magnet represents the relationship between the magnetic flux density (B) and the magnetic field strength (H). The area enclosed by this loop is proportional to the energy lost per cycle of magnetization and demagnetization. As the frequency of the alternating magnetic field increases, the number of cycles per unit time also increases, leading to higher hysteresis losses and, consequently, more heating.

3. Mechanical Stress and Thermal Shock
Ferrite magnets are brittle ceramic materials that can crack or fracture under mechanical stress or rapid temperature changes (thermal shock). When a magnet is subjected to mechanical stress, such as vibration or impact, micro-cracks can form within the material. These cracks can act as pathways for eddy currents, increasing the electrical resistance and generating more heat.

Thermal shock occurs when a magnet is exposed to a sudden change in temperature, causing differential expansion or contraction within the material. This can lead to the formation of cracks or the exacerbation of existing micro-cracks, further increasing the likelihood of heating due to eddy currents. Ferrite magnets are particularly vulnerable to thermal shock when the temperature changes by more than 4°C to 8°C per minute. An increase or decrease of 2°C to 3°C per minute is generally considered safe.

4. External Magnetic Fields
External magnetic fields can also contribute to heating in ferrite magnets. When a ferrite magnet is placed in a strong external magnetic field, the magnetic domains within the magnet can be reoriented, leading to hysteresis losses and heating. This is particularly relevant in applications where multiple magnets are used in close proximity, such as in magnetic couplings or magnetic bearings.

5. Design and Manufacturing Defects
Design and manufacturing defects can also lead to heating in ferrite magnets. For example, if a magnet is not properly oriented during the manufacturing process, the magnetic domains may not be aligned optimally, leading to increased hysteresis losses. Similarly, if the magnet is not properly shaped or sized for its intended application, it may be subjected to excessive mechanical stress or magnetic field strengths, leading to heating.

Solutions to Mitigate Heating in Ferrite Magnets
1. Optimize Magnet Design
One of the most effective ways to mitigate heating in ferrite magnets is to optimize their design for the specific application. This includes selecting the appropriate magnet shape, size, and grade to ensure that the magnet is not subjected to excessive mechanical stress or magnetic field strengths. For example, in motor applications, the magnet should be designed to minimize eddy current losses by using a laminated core or by selecting a magnet grade with lower electrical conductivity.

Additionally, the orientation of the magnetic domains within the magnet can be optimized during the manufacturing process to minimize hysteresis losses. This can be achieved by applying an external magnetic field during the sintering process to align the domains in a preferred direction.

2. Control Operating Temperature
Controlling the operating temperature of the magnet is crucial to preventing excessive heating. Ferrite magnets can generally be used at temperatures up to 250°C, but their performance may degrade at higher temperatures. Therefore, it is important to ensure that the magnet is not exposed to temperatures that exceed its maximum operating temperature.

In applications where high temperatures are unavoidable, such as in motors or generators, cooling systems can be implemented to dissipate heat and maintain the magnet within its safe operating temperature range. This can include the use of fans, heat sinks, or liquid cooling systems, depending on the specific application requirements.

3. Reduce Mechanical Stress
Reducing mechanical stress on the magnet can help prevent the formation of micro-cracks and the associated increase in eddy current losses. This can be achieved by designing the magnet and its surrounding components to minimize vibration and impact. Additionally, the magnet should be securely mounted to prevent movement or displacement during operation.

In applications where mechanical stress is unavoidable, such as in magnetic couplings or bearings, the magnet can be protected by using a soft magnetic material as a buffer or by incorporating shock-absorbing elements into the design.

4. Avoid Thermal Shock
To prevent thermal shock, it is important to avoid rapid changes in temperature. This can be achieved by gradually increasing or decreasing the temperature of the magnet during startup and shutdown procedures. Additionally, the magnet should be protected from exposure to extreme temperatures, such as by using insulation or thermal barriers.

In applications where the magnet is subjected to frequent temperature cycles, such as in automotive or aerospace applications, the magnet should be selected based on its thermal stability and resistance to thermal shock. Ferrite magnets are generally more resistant to thermal shock than other magnetic materials, but they can still be damaged if exposed to excessive temperature changes.

5. Shield from External Magnetic Fields
Shielding the magnet from external magnetic fields can help prevent heating due to reorientation of the magnetic domains. This can be achieved by using a soft magnetic material, such as mu-metal, to create a magnetic shield around the magnet. The shield will absorb and redirect the external magnetic field, reducing its impact on the magnet.

In applications where multiple magnets are used in close proximity, such as in magnetic couplings or bearings, the magnets should be arranged in a way that minimizes their mutual interaction. This can be achieved by using a non-magnetic spacer or by orienting the magnets in a way that reduces their magnetic coupling.

6. Regular Maintenance and Inspection
Regular maintenance and inspection of the magnet and its surrounding components can help identify and address potential issues before they lead to excessive heating. This includes checking for signs of wear, damage, or corrosion on the magnet and its mounting hardware, as well as monitoring the temperature of the magnet during operation.

If any issues are identified, they should be addressed promptly to prevent further damage or heating. This may involve replacing damaged components, adjusting the operating parameters, or implementing additional cooling or shielding measures.

7. Select Appropriate Magnet Grade
Selecting the appropriate magnet grade for the specific application is crucial to preventing excessive heating. Ferrite magnets are available in a range of grades, each with its own unique properties and performance characteristics. Higher-grade ferrite magnets generally have higher coercivity and resistance to demagnetization, but they may also have higher electrical conductivity, which can lead to increased eddy current losses.

Therefore, it is important to select a magnet grade that balances the need for high coercivity with the need to minimize eddy current losses. In some cases, it may be necessary to use a lower-grade magnet with lower electrical conductivity, even if it has slightly lower coercivity, to prevent excessive heating.

Case Studies and Practical Examples
Case Study 1: Motor Application
In a motor application, a ferrite magnet was experiencing excessive heating due to eddy current losses. The motor was operating at high speeds, and the changing magnetic field was inducing eddy currents within the magnet, leading to significant heating.

To address this issue, the motor design was modified to include a laminated core, which reduced the electrical conductivity of the core and minimized eddy current losses. Additionally, the magnet grade was changed to one with lower electrical conductivity, further reducing eddy current losses. These modifications resulted in a significant reduction in heating, improving the reliability and longevity of the motor.

Case Study 2: Magnetic Coupling Application
In a magnetic coupling application, multiple ferrite magnets were used to transmit torque between two rotating shafts. The magnets were arranged in a way that maximized their magnetic coupling, but this also led to significant heating due to hysteresis losses.

To address this issue, the magnet arrangement was modified to reduce the magnetic coupling between the magnets. This was achieved by using a non-magnetic spacer between the magnets and by orienting the magnets in a way that minimized their mutual interaction. Additionally, the magnet grade was changed to one with lower hysteresis losses, further reducing heating. These modifications resulted in a more efficient and reliable magnetic coupling.

Conclusion
Heating in ferrite magnets can be caused by a variety of factors, including intrinsic coercivity and temperature dependence, hysteresis losses, mechanical stress and thermal shock, external magnetic fields, and design and manufacturing defects. To mitigate these issues, it is important to optimize the magnet design, control the operating temperature, reduce mechanical stress, avoid thermal shock, shield from external magnetic fields, perform regular maintenance and inspection, and select the appropriate magnet grade. By implementing these solutions, it is possible to prevent excessive heating in ferrite magnets and ensure their reliable and long-lasting performance in a wide range of applications.
