Ferrite ring magnets are permanent magnets made from ferrite materials, a type of iron-based compound. These materials are chemically composed of iron (Fe), cobalt (Co), and sometimes nickel (Ni). The key advantage of ferrite magnets is their cost-effectiveness and stability, making them a preferred choice in numerous applications.
Compared to other magnet types, such as neodymium and samarium-cobalt, ferrites offer a balance between magnetic strength and affordability. Neodymium magnets are incredibly strong but can be more expensive and may require more stringent handling due to their brittleness. Samarium-cobalt magnets, while also powerful, come with similar cost and handling constraints. Ferrites, on the other hand, provide a dependable solution that fits many practical needs.

How Ferrite Ring Magnets WorkThe science behind ferrite ring magnets lies in the alignment of magnetic domains. Magnetic domains are groups of atoms that naturally align to form a magnetic field. In ferrite materials, these domains become organized in a way that collectively creates a strong, uniform magnetic field.
The ring shape of ferrite magnets is crucial for their functionality. This circular geometry ensures that the magnetic field is evenly distributed, reducing the risk of demagnetization and ensuring consistent performance. The ring shape also allows ferrites to work effectively in various orientations, enhancing their versatility across different applications.

Applications of Ferrite Ring MagnetsFerrite ring magnets are versatile and find applications in a wide range of industries and everyday devices.

Industrial ApplicationsIn the industrial sector, ferrites are used in automation and motor systems to provide precise control over magnetic fields. They are also employed in sensors and switches, where their stability under varying conditions is crucial.

Consumer ElectronicsFerrites play a vital role in consumer electronics, including speakers, headphones, and hard drives. In speakers, ferrite magnets help to stabilize and focus the magnetic field, improving sound quality. Similarly, in hard drives, ferrites are used to ensure the precise alignment of read/write heads, enhancing data storage reliability.

Health and MedicalFerrites are also used in medical applications such as MRI machines and magnetic therapy devices. In MRI machines, ferrites help to generate and maintain the powerful magnetic fields required for imaging. Magnetic therapy devices use these magnets to provide therapeutic benefits, leveraging the unique properties of ferrite materials.

EnvironmentalIn the environmental sector, ferrite ring magnets are used in water treatment systems to detect and remove contaminants. They help in the precise alignment and separation of particles, making these systems more efficient.

Advanced Topics in Ferrite MagneticsWhile ferrite ring magnets are widely used, challenges associated with their manufacturing and application do exist. Thermal stability and demagnetization are key issues that need to be addressed. For instance, ferrites can lose their magnetic properties if exposed to high temperatures or certain types of vibrations.
Innovations in material science are continually enhancing the properties of ferrites. Advances in alloy compositions and processing techniques are leading to stronger and more durable ferrite magnets. These improvements are making ferrites even more suitable for a broader range of applications.

Comparative Analysis: Ferrite Ring Magnets vs. Other TypesWhen compared to other magnet types, ferrites offer a cost-effective solution for many applications. Neodymium and samarium-cobalt magnets, while offering higher magnetic strengths, can be more expensive and require more stringent handling. Ferrites, on the other hand, are more cost-effective and durable, making them a preferred choice in cost-sensitive and high-volume applications.
For environments where thermal stability and cost are critical factors, ferrites stand out. However, in high-stress environments, neodymium or samarium-cobalt magnets might be more appropriate due to their higher magnetic strength and ability to withstand greater temperature fluctuations.

The Future of Ferrite Ring MagnetsLooking ahead, the future of ferrite ring magnets is bright. Ongoing research aims to develop new alloys and topologies that enhance their performance. Ferrites are already being explored for use in emerging technologies such as electric vehicles and renewable energy systems. As technology continues to advance, ferrites are likely to play an even more significant role in shaping the future of magnetism.

ConclusionFerrite ring magnets are a fundamental component in a wide array of applications, from everyday electronics to industrial machinery. Their ability to retain magnetism and operate effectively across various environments makes them an indispensable part of modern technology. As research continues to uncover new possibilities, ferrites are poised to play an even more vital role in shaping the future of magnetism. Their versatility and enduring performance underscore their importance in both current and future technological advancements.

High-Temperature StabilityAlNiCo magnets are renowned for their exceptional thermal resilience, maintaining stable magnetic performance at temperatures up to 550°C (with some grades like AlNiCo 8 operating at 800–870°C). This stems from their high Curie temperature (820–870°C) and low temperature coefficient of -0.02% per Kelvin, which minimizes performance degradation with temperature fluctuations. For example, AlNiCo 5 retains 90% of its magnetization at 300°C, whereas NdFeB magnets lose 50% of their strength above 150°C. This makes AlNiCo indispensable in aerospace sensors, oil drilling tools, and MRI gradient coils, where extreme heat is unavoidable.



Moderate Magnetic StrengthAlNiCo magnets have a remanence (Br) of 0.8–1.4 T and a maximum energy product (BHmax) of 5–50 kJ/m³, significantly lower than NdFeB (400–500 kJ/m³) but comparable to ferrite magnets (30–40 kJ/m³). Their strength lies in balancing performance with stability; for instance, AlNiCo 9 achieves a coercivity (Hc) of 160–200 kA/m, sufficient for precision instruments like gyroscopes and actuators.



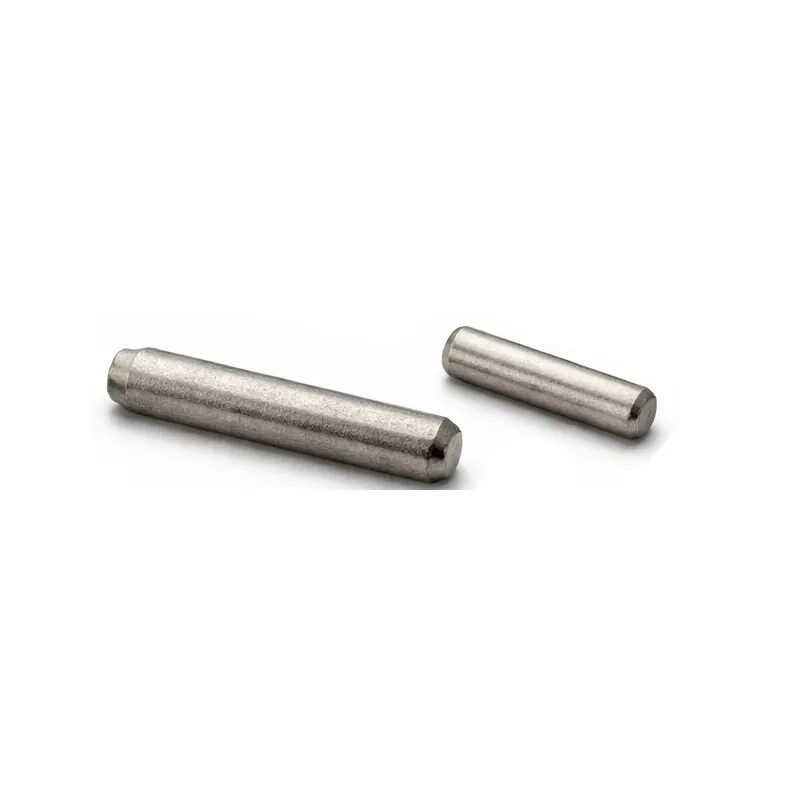

Low Coercivity and Susceptibility to DemagnetizationAlNiCo’s coercivity (48–200 kA/m) is lower than that of NdFeB (800–2500 kA/m) or ferrite (150–300 kA/m), making it vulnerable to demagnetization from external fields or mechanical stress. To mitigate this, AlNiCo magnets are designed with a length-to-diameter ratio of 5:1, enhancing domain wall pinning. For example, a cylindrical AlNiCo 5 magnet with a 10 mm diameter and 50 mm length resists demagnetization better than a 20 mm × 20 mm cube.



Corrosion ResistanceAlNiCo’s low iron content (typically <50%) and oxide-forming elements like Al and Ni provide inherent corrosion resistance, eliminating the need for surface coatings. This contrasts with NdFeB magnets, which require nickel plating to prevent oxidation, and ferrite magnets, which are brittle and prone to chipping.



II. Comparative Analysis with NdFeB and Ferrite Magnets
1. AlNiCo vs. NdFeB Magnets


Magnetic Performance:NdFeB magnets dominate in magnetic strength, with a BHmax 10× higher than AlNiCo. This makes them ideal for high-performance applications like electric vehicle motors and wind turbines, where compact size and maximum torque are critical. However, NdFeB’s temperature sensitivity limits its use above 150°C, whereas AlNiCo thrives in high-heat environments.



Thermal Stability:AlNiCo’s Curie temperature (820–870°C) dwarfs NdFeB’s 310–400°C, enabling stable operation in extreme conditions. For example, AlNiCo magnets are used in jet engine sensors, where temperatures exceed 300°C, while NdFeB would fail.



Cost and Availability:NdFeB magnets cost 30–80/kg∗∗,comparedtoAlNiCo’s∗∗50–150/kg, due to cobalt’s scarcity. However, AlNiCo’s longevity in high-temperature applications often justifies its premium price. For instance, a single AlNiCo magnet in an oil drilling sensor can last decades, whereas NdFeB would require frequent replacement.



Mechanical Properties:AlNiCo is less brittle than NdFeB, allowing it to be machined into complex shapes like horseshoes or arcs without cracking. This flexibility is crucial in loudspeakers, where AlNiCo’s warm tonal characteristics are preferred over NdFeB’s harsher sound.



2. AlNiCo vs. Ferrite Magnets


Magnetic Strength:Ferrite magnets have a BHmax of 30–40 kJ/m³, slightly lower than AlNiCo’s 5–50 kJ/m³, but their high intrinsic coercivity (150–300 kA/m) makes them resistant to demagnetization. This makes ferrite magnets ideal for electric motors and generators, where durability under varying loads is essential.



Temperature Resistance:While AlNiCo outperforms ferrite at high temperatures (550°C vs. 250°C), ferrite magnets are more stable at room temperature, with negligible performance loss over time. AlNiCo, in contrast, can demagnetize if exposed to strong opposing fields or mechanical shock.



Cost and Manufacturing:Ferrite magnets are the most cost-effective, priced at $5–20/kg, due to their abundant raw materials (iron oxide and strontium/barium carbonate). They are also easier to manufacture via powder metallurgy, enabling mass production of small, complex shapes. AlNiCo, requiring casting or sintering, is more labor-intensive and expensive.



Applications:Ferrite magnets dominate low-cost, high-volume markets like refrigerator seals and toy motors, while AlNiCo is reserved for niche applications requiring high-temperature stability, such as aerospace compasses and medical imaging equipment.



III. Performance Trade-offs and Application-Specific Selection
The choice between AlNiCo, NdFeB, and ferrite magnets hinges on balancing magnetic strength, temperature stability, cost, and environmental resilience:






Parameter
AlNiCo
NdFeB
Ferrite




Max Temperature
550°C
150–200°C
250°C


BHmax
5–50 kJ/m³
400–500 kJ/m³
30–40 kJ/m³


Coercivity
48–200 kA/m
800–2500 kA/m
150–300 kA/m


Cost
$50–150/kg
$30–80/kg
$5–20/kg


Corrosion Resistance
Excellent (no coating needed)
Poor (requires plating)
Good (inherent oxide layer)


Brittleness
Low
High
High






Aerospace: AlNiCo’s high-temperature stability makes it ideal for gyroscopes and actuator motors in satellites, where temperatures fluctuate between -270°C and 500°C.
Automotive: NdFeB magnets dominate electric vehicle traction motors due to their compact size and high torque, while AlNiCo is used in engine sensors operating at 300–400°C.
Consumer Electronics: Ferrite magnets are ubiquitous in loudspeakers, refrigerator seals, and toy motors, where cost and durability outweigh performance needs.
Medical Imaging: AlNiCo’s low conductivity reduces eddy currents in MRI gradient coils, improving image quality, while NdFeB’s high strength enables compact MRI systems.

IV. Future Trends and Innovations
Researchers are exploring hybrid alloys and nanostructuring to enhance AlNiCo’s coercivity without sacrificing temperature stability. For example, embedding Co-Al-Ni nanoparticles in a Fe matrix could double coercivity while reducing cobalt usage by 30%. Additionally, 3D printing of AlNiCo alloys enables complex shapes for customized sensors, expanding applications in robotics and renewable energy.

Conclusion
AlNiCo magnets occupy a unique niche in the permanent magnet market, offering unmatched high-temperature stability and corrosion resistance at the expense of magnetic strength. While NdFeB and ferrite magnets dominate high-performance and cost-sensitive applications, respectively, AlNiCo remains indispensable in industries where failure is not an option. As material science advances, new alloying strategies and manufacturing techniques promise to extend AlNiCo’s legacy into the 21st century, ensuring its relevance in an increasingly demanding technological landscape.

Alnico magnets, as one of the earliest developed permanent magnetic materials, have unique microstructural features that significantly influence their magnetic properties. This paper delves into the microstructural characteristics of Alnico magnets, focusing on the composition and formation mechanism of their phases. It also comprehensively analyzes how grain size and grain boundary morphology affect core magnetic parameters such as coercivity, remanence, and maximum magnetic energy product. Through a detailed exploration of these relationships, this study provides insights into optimizing the microstructure of Alnico magnets to enhance their magnetic performance and expand their application scope.

1. Introduction
Alnico magnets, composed mainly of aluminum (Al), nickel (Ni), cobalt (Co), and iron (Fe), along with small amounts of other elements like copper (Cu) and titanium (Ti), have been widely used in various industrial fields since their invention in the 1930s. Their high remanence, low temperature coefficient, and excellent high - temperature stability make them suitable for applications in motors, sensors, and measuring instruments. However, their relatively low coercivity compared to some modern rare - earth permanent magnets has limited their further development. Understanding the relationship between the microstructure of Alnico magnets and their magnetic properties is crucial for improving their performance.

2. Microstructural Characteristics of Alnico Magnets
2.1 Phase Composition
The microstructure of Alnico magnets is mainly composed of two phases: a magnetic Fe - Co - rich (α1) phase and a non - magnetic Al - Ni - rich (α2) phase. In addition, there is also a minor Cu - enriched phase present between the α1 and α2 phases.

The α1 phase is the main source of magnetism in Alnico magnets. It has a high magnetic moment and contributes significantly to the remanence of the magnet. The α2 phase is non - magnetic and acts as a matrix that separates the α1 phase regions. The Cu - enriched phase, often located at the corners of the α1 phase facets, can influence the interaction between the α1 and α2 phases and thus affect the overall magnetic properties.

2.2 Formation Mechanism of Microstructure
The formation of the unique microstructure in Alnico magnets is mainly through a process called spinodal decomposition. During the heat treatment of Alnico alloys, a single - phase body - centered cubic (bcc) α solid solution first forms. As the temperature decreases, this single - phase structure undergoes spinodal decomposition, resulting in the separation into the α1 and α2 phases.

In this process, the α1 phase forms as rod - like or plate - like structures embedded in the α2 matrix. The size, shape, and distribution of these α1 phase regions are crucial for determining the magnetic properties of the magnet. For example, the formation of a "mosaic structure" with {110} or {100} planar faceted α1 rods (about 35 nm in size) embedded in the α2 matrix is a characteristic feature of high - performance Alnico magnets.

2.3 Grain Structure in Alnico Magnets
The grain structure of Alnico magnets can vary depending on the manufacturing process. Directional solidification is a common method used to improve the magnetic properties of Alnico magnets. Through directional solidification, columnar grains can be formed, which can enhance the magnetic anisotropy of the magnet.

In a directionally solidified Alnico casting, the grain orientation and size can vary along the height of the casting. The top part of the magnet usually has the best grain orientation and the largest average grain size, leading to the highest remanence. As we move from the top to the bottom of the casting, the grain sizes gradually decrease, and the proportion of transverse grain boundaries increases. This results in a small aspect ratio of the α1 phase and a lower coercivity.

3. Influence of Grain Size on Core Magnetic Parameters
3.1 Coercivity
Grain size has a significant impact on the coercivity of Alnico magnets. In general, for conventional magnetic materials like Alnico, a smaller grain size leads to an increase in coercivity. This is because the grain boundaries act as obstacles to the movement of domain walls. When the grain size is smaller, there are more grain boundaries per unit volume, which increases the resistance to domain wall displacement and thus increases the coercivity.

In Alnico magnets, the nanoscale isolated α1 rods formed during spinodal decomposition are the key microstructural features that give rise to high coercivity. When the grain size is reduced, the size and distribution of these α1 rods can be better controlled, leading to an increase in the effective magnetic anisotropy and coercivity. For example, by controlling the post - solidification processing to reduce the diameter of the spinodal decomposition regions, the coercivity of Alnico magnets can be improved.

However, it should be noted that there is an optimal grain size range for achieving the highest coercivity. If the grain size is too small, the magnetic coupling between adjacent grains may become significant, which can reduce the effective magnetic anisotropy and decrease the coercivity.

3.2 Remanence
Grain size also affects the remanence of Alnico magnets. Larger grain sizes generally result in higher remanence, especially in directionally solidified Alnico magnets. This is because larger grains with a more favorable orientation can align more magnetic domains in the same direction during magnetization, leading to a higher remanent magnetization.

In the top part of a directionally solidified Alnico casting, where the grain size is the largest and the grain orientation is the best, the remanence is usually the highest. As the grain size decreases, the number of grain boundaries increases, and the magnetic domains are more likely to be pinned at the grain boundaries, reducing the ability of the domains to align and thus decreasing the remanence.

3.3 Maximum Magnetic Energy Product
The maximum magnetic energy product (BHmax) is a comprehensive indicator of the magnetic performance of a permanent magnet. It is related to both the remanence and coercivity of the magnet. Since grain size affects both remanence and coercivity, it also has an impact on the BHmax.

Generally, an appropriate increase in grain size can improve the BHmax by increasing the remanence. However, if the grain size is too large, the coercivity may decrease significantly, which will in turn reduce the BHmax. Therefore, optimizing the grain size is essential for achieving a high BHmax in Alnico magnets.

4. Influence of Grain Boundary Morphology on Core Magnetic Parameters
4.1 Coercivity
The morphology of grain boundaries plays a crucial role in determining the coercivity of Alnico magnets. Smooth and well - defined grain boundaries can act as effective barriers to domain wall movement, increasing the coercivity. On the other hand, irregular grain boundaries with defects such as dislocations and voids can provide easy paths for domain wall movement, reducing the coercivity.

In Alnico magnets, the presence of the Cu - enriched phase at the grain boundaries can also affect the coercivity. The Cu - enriched phase can modify the local magnetic environment at the grain boundaries, influencing the interaction between adjacent grains and thus the coercivity. If the Cu - enriched phase is uniformly distributed and has a proper size and shape, it can enhance the coercivity by increasing the magnetic anisotropy at the grain boundaries. However, if the Cu - enriched phase is aggregated or has an irregular shape, it may have a negative impact on the coercivity.

4.2 Remanence
Grain boundary morphology can also affect the remanence of Alnico magnets. A high density of grain boundaries with a large number of defects can disrupt the alignment of magnetic domains, reducing the remanence. In contrast, well - organized grain boundaries with fewer defects can facilitate the alignment of domains during magnetization, leading to a higher remanence.

The orientation of grain boundaries also matters. Grain boundaries that are perpendicular to the easy magnetization axis of the magnet can more effectively block the movement of domain walls and increase the remanence compared to grain boundaries that are parallel to the easy axis.

4.3 Magnetic Anisotropy
Grain boundary morphology is closely related to the magnetic anisotropy of Alnico magnets. Magnetic anisotropy refers to the difference in magnetic properties in different directions. A well - defined grain boundary structure can promote the formation of magnetic anisotropy by influencing the orientation of magnetic domains.

For example, in directionally solidified Alnico magnets, the columnar grain structure with parallel grain boundaries can enhance the magnetic anisotropy along the long axis of the columns. This is because the magnetic domains tend to align along the long axis of the grains, and the grain boundaries act as barriers to domain wall movement in the perpendicular direction, increasing the magnetic anisotropy and improving the overall magnetic performance.

5. Optimization of Microstructure for Improved Magnetic Performance
5.1 Control of Grain Size
To optimize the magnetic performance of Alnico magnets, it is necessary to control the grain size during the manufacturing process. This can be achieved through various methods such as adjusting the cooling rate during solidification, adding grain - refining agents, and applying external magnetic fields during heat treatment.

By controlling the cooling rate, the nucleation and growth of grains can be regulated. A faster cooling rate can lead to a finer grain size, while a slower cooling rate can result in larger grains. Adding grain - refining agents such as titanium and zirconium can also effectively reduce the grain size by providing heterogeneous nucleation sites. Applying an external magnetic field during heat treatment can promote the alignment of grains and improve the magnetic anisotropy, which can also have an indirect impact on the grain size distribution.

5.2 Modification of Grain Boundary Morphology
Modifying the grain boundary morphology is another important aspect of optimizing the microstructure of Alnico magnets. This can be done by controlling the composition and distribution of the Cu - enriched phase at the grain boundaries.

By adjusting the amount of copper added during the alloy preparation and optimizing the heat treatment parameters, the size, shape, and distribution of the Cu - enriched phase can be controlled. A uniform and fine - dispersed Cu - enriched phase at the grain boundaries can enhance the coercivity and magnetic anisotropy of the magnet. In addition, reducing the number of defects at the grain boundaries through processes such as hot isostatic pressing can also improve the magnetic properties.

5.3 Combination of Grain Size and Grain Boundary Control
To achieve the best magnetic performance, it is often necessary to combine the control of grain size and grain boundary morphology. For example, by first using grain - refining agents to obtain a fine - grained structure and then optimizing the heat treatment process to modify the grain boundary morphology, a high - performance Alnico magnet with both high coercivity and high remanence can be produced.

6. Conclusion
The microstructure of Alnico magnets, including phase composition, grain size, and grain boundary morphology, has a profound impact on their core magnetic parameters such as coercivity, remanence, and maximum magnetic energy product. Understanding the relationship between microstructure and magnetic properties is essential for optimizing the performance of Alnico magnets.

By controlling the grain size through methods such as adjusting the cooling rate and adding grain - refining agents, and modifying the grain boundary morphology by controlling the composition and distribution of the Cu - enriched phase, the magnetic performance of Alnico magnets can be significantly improved. Future research should focus on further exploring the underlying mechanisms of the influence of microstructure on magnetic properties and developing more effective methods for microstructure optimization to meet the growing demands for high - performance permanent magnets in various industrial applications.
