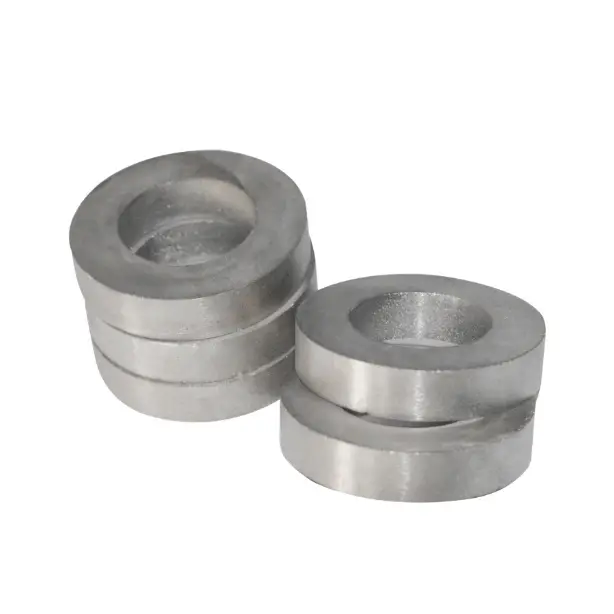

High Quality Kobalt Magnet From Senz Magnet

1. Introduction to AlNiCo Magnets
AlNiCo magnets, an alloy primarily composed of aluminum (Al), nickel (Ni), and cobalt (Co), along with iron (Fe), copper (Cu), and sometimes titanium (Ti), have been a significant part of the permanent - magnet industry since their invention in the 1930s. They can be manufactured through two main processes: casting and sintering, resulting in cast AlNiCo and sintered AlNiCo magnets respectively, each with distinct mechanical characteristics.

2. Physical Structure and Its Influence on Mechanical Properties
2.1 Cast AlNiCo Magnets

Microstructure: Cast AlNiCo magnets have a relatively coarse - grained microstructure. During the casting process, the molten alloy solidifies, and the growth of grains occurs. This coarse - grained structure gives the magnets certain mechanical features.
Mechanical Behavior: The large grains can lead to a more brittle nature. When a force is applied, cracks can propagate more easily along the grain boundaries, resulting in relatively low tensile and compressive strength compared to some other magnetic materials. However, the casting process allows for the production of magnets in a wide variety of shapes and sizes, which can be an advantage in certain applications where complex geometries are required. For example, in some automotive sensors, the unique shapes of cast AlNiCo magnets can be precisely tailored to fit into specific spaces within the engine or other components.

2.2 Sintered AlNiCo Magnets

Microstructure: Sintered AlNiCo magnets are produced using powder metallurgy. Fine powder particles of the AlNiCo alloy are pressed into a desired shape and then sintered at high temperatures. This results in a more uniform and fine - grained microstructure.
Mechanical Behavior: The fine - grained structure of sintered AlNiCo magnets generally provides better mechanical properties in terms of strength and toughness compared to cast magnets. They can withstand higher mechanical stresses during handling and operation. Sintered AlNiCo magnets are often used in applications where higher precision and better mechanical integrity are required, such as in some high - end instrumentations and small - scale electromechanical devices.

3. Tensile Strength
3.1 General Characteristics
AlNiCo magnets, in general, have relatively low tensile strength. This is mainly due to their brittle nature. The atomic structure and the presence of multiple metal elements in the alloy create a material that is not very ductile. When a tensile force is applied, the bonds between the atoms are not able to stretch and deform significantly before breaking.

3.2 Comparison between Cast and Sintered Types

Cast AlNiCo: The tensile strength of cast AlNiCo magnets is typically in the range that is relatively low compared to many engineering metals. For example, in some applications, the tensile strength may be around a few tens of MPa. The large grains and potential for internal defects during the casting process contribute to this relatively low value.
Sintered AlNiCo: Sintered AlNiCo magnets usually have higher tensile strength than cast ones. The fine - grained structure and the more uniform distribution of the alloy components during the sintering process result in a material that can better resist tensile forces. The tensile strength of sintered AlNiCo can be several times higher than that of cast magnets in some cases, reaching up to a few hundred MPa in optimized formulations.

4. Compressive Strength
4.1 General Features
AlNiCo magnets exhibit relatively high compressive strength compared to their tensile strength. This is because under compressive loading, the brittle nature of the material is less of a disadvantage. The atoms are pushed closer together, and the structure can better withstand the applied force without cracking as easily as under tension.

4.2 Differences between Cast and Sintered Varieties

Cast AlNiCo: Cast AlNiCo magnets can have good compressive strength, often in the range of several hundred MPa. The large - scale structure can distribute the compressive load over a larger area, and the solid nature of the cast material allows it to resist being crushed to a certain extent. For example, in some industrial magnetic machinery where the magnets are subjected to compressive forces from other components, cast AlNiCo magnets can perform well.
Sintered AlNiCo: Sintered AlNiCo magnets also have high compressive strength, and in some cases, it can be even higher than that of cast magnets. The fine - grained structure can more effectively distribute the compressive stress, preventing the formation and propagation of cracks. This makes sintered AlNiCo suitable for applications where high - precision and high - strength under compression are required, such as in some miniature electromechanical devices.

5. Flexural Strength
5.1 Overall Performance
Flexural strength, which measures a material's ability to resist bending, is an important mechanical property for AlNiCo magnets, especially in applications where they may be subjected to bending forces. AlNiCo magnets generally have moderate flexural strength. Their brittle nature limits their ability to deform plastically under bending, and cracks can initiate and propagate relatively easily.

5.2 Cast vs. Sintered

Cast AlNiCo: The flexural strength of cast AlNiCo magnets is influenced by their large - grained structure. When bent, the stress concentration at the grain boundaries can lead to early crack formation. The flexural strength values for cast AlNiCo are typically lower compared to sintered magnets, often in the range that may limit their use in applications requiring high - bending resistance.
Sintered AlNiCo: Sintered AlNiCo magnets, with their fine - grained structure, have better flexural strength. The more uniform distribution of the alloy components allows for a more even distribution of stress during bending, reducing the likelihood of crack initiation. This makes sintered AlNiCo more suitable for applications where some degree of bending or flexing may occur, such as in certain types of sensors.

6. Hardness
6.1 General Hardness Characteristics
AlNiCo magnets are known for their high hardness. The combination of multiple metal elements in the alloy forms a strong and rigid atomic structure. The hardness of AlNiCo magnets is typically measured using the Vickers hardness test.

6.2 Comparison between Cast and Sintered Types

Cast AlNiCo: Cast AlNiCo magnets have high hardness values, often in the range of several hundred HV (Vickers hardness). The large - grained structure contributes to this hardness, as the individual grains are relatively hard and difficult to indent. However, the presence of potential defects in the casting process may slightly affect the overall hardness uniformity.
Sintered AlNiCo: Sintered AlNiCo magnets also exhibit high hardness, and in some cases, it can be slightly higher than that of cast magnets. The fine - grained structure provides a more homogeneous hardness distribution throughout the magnet. The uniformity of the sintered material ensures that the hardness is consistent across different regions of the magnet, which is beneficial in applications where precise and consistent mechanical properties are required.

7. Brittleness and Toughness
7.1 Brittleness
AlNiCo magnets are inherently brittle materials. This brittleness is a result of their atomic structure and the nature of the metal - metal bonds in the alloy. When a force is applied, whether it is tensile, compressive, or flexural, the lack of ductility means that the material is more likely to fracture rather than deform plastically. This brittleness is a significant factor to consider in the design and use of AlNiCo magnets, as it can limit their applications in situations where high - impact or high - deformation forces are expected.

7.2 Toughness
Toughness, which is the ability of a material to absorb energy before fracturing, is relatively low for AlNiCo magnets due to their brittleness. However, sintered AlNiCo magnets generally have slightly better toughness compared to cast magnets. The fine - grained structure of sintered magnets can better distribute the energy of an impact or applied force, reducing the likelihood of sudden fracture. This small increase in toughness makes sintered AlNiCo more suitable for some applications where a certain degree of impact resistance is required, although they are still not as tough as many ductile materials.

8. Impact on Application Selection
8.1 Cast AlNiCo Applications
The ability to produce cast AlNiCo magnets in complex shapes makes them ideal for applications where a specific geometry is needed. For example, in automotive sensors, the unique shapes of cast AlNiCo magnets can be precisely designed to fit into the engine or other components. Their relatively good compressive strength also allows them to be used in industrial magnetic machinery where they may be subjected to compressive forces from other parts. However, their low tensile and flexural strength and high brittleness limit their use in applications where high - tension or high - bending forces are present.

8.2 Sintered AlNiCo Applications
Sintered AlNiCo magnets, with their better mechanical properties in terms of strength and toughness, are more suitable for high - precision and high - stress applications. They are widely used in instrumentations, where high - precision magnetic fields are required, and the magnets need to withstand mechanical stresses during handling and operation. In small - scale electromechanical devices, such as some types of micro - motors and sensors, the fine - grained structure and better mechanical integrity of sintered AlNiCo magnets make them a preferred choice.

Below is a detailed analysis of the performance differences between cast and sintered AlNiCo magnets, covering magnetic properties, mechanical characteristics, dimensional accuracy, corrosion resistance, temperature stability, and application suitability:

1. Magnetic Properties

Cast AlNiCo Magnets:Cast AlNiCo magnets are renowned for their superior magnetic performance, particularly in terms of high remanence (Br) and maximum energy product (BHmax). The casting process allows for the formation of a more uniform and optimized crystal structure, which enhances the magnet's ability to retain its magnetization after being exposed to an external magnetic field. This makes cast AlNiCo magnets ideal for applications requiring strong magnetic fields, such as in high-performance motors, generators, and sensors.
Sintered AlNiCo Magnets:In contrast, sintered AlNiCo magnets generally exhibit slightly lower magnetic properties compared to their cast counterparts. The sintering process involves compacting metal powders under high pressure and then heating them to a high temperature to achieve densification. While this process is effective in producing magnets with good mechanical strength and dimensional accuracy, it may not always result in the same level of magnetic uniformity and optimization as casting. As a result, sintered AlNiCo magnets are typically used in applications where moderate magnetic performance is sufficient, such as in certain types of instruments, relays, and small motors.

2. Mechanical Characteristics

Cast AlNiCo Magnets:Cast AlNiCo magnets are known for their brittleness and hardness. This makes them challenging to machine and shape, especially when intricate designs or tight tolerances are required. The casting process often results in magnets with a rough surface finish, which may necessitate additional grinding or polishing steps to achieve the desired surface quality. However, the inherent brittleness of cast AlNiCo magnets also contributes to their high resistance to demagnetization, as the crystal structure is less likely to be disrupted by external forces.
Sintered AlNiCo Magnets:Sintered AlNiCo magnets, on the other hand, offer better mechanical properties in terms of toughness and machinability. The sintering process produces magnets with a more homogeneous microstructure, which enhances their mechanical strength and makes them easier to machine and shape. This makes sintered AlNiCo magnets suitable for applications requiring precise dimensions and complex shapes, such as in certain types of sensors, actuators, and miniature devices. Additionally, the improved machinability of sintered AlNiCo magnets reduces production costs and lead times.

3. Dimensional Accuracy and Tolerance

Cast AlNiCo Magnets:Achieving high dimensional accuracy and tight tolerances with cast AlNiCo magnets can be challenging due to the nature of the casting process. The molten metal may shrink or deform during cooling, leading to variations in dimensions and surface irregularities. While post-casting machining and finishing operations can improve dimensional accuracy, they also add to the production cost and time.
Sintered AlNiCo Magnets:Sintered AlNiCo magnets excel in terms of dimensional accuracy and tolerance control. The powder metallurgy process allows for precise control over the size and shape of the magnets during the pressing stage, resulting in magnets with consistent dimensions and tight tolerances. This makes sintered AlNiCo magnets ideal for applications requiring high precision and repeatability, such as in medical devices, aerospace components, and high-end consumer electronics.

4. Corrosion Resistance

Cast AlNiCo Magnets:Both cast and sintered AlNiCo magnets exhibit excellent corrosion resistance due to their inherent chemical stability and the presence of protective oxide layers on their surfaces. However, the casting process may sometimes introduce microstructural defects or inclusions that could potentially act as corrosion initiation sites. Proper heat treatment and surface finishing operations can mitigate this risk and enhance the overall corrosion resistance of cast AlNiCo magnets.
Sintered AlNiCo Magnets:Sintered AlNiCo magnets generally offer comparable corrosion resistance to cast magnets, thanks to their similar chemical composition and microstructure. The sintering process, when properly controlled, can produce magnets with a dense and uniform microstructure that is less prone to corrosion. Additionally, the improved surface finish of sintered AlNiCo magnets, achieved through grinding or polishing, further enhances their corrosion resistance by removing surface defects and providing a smooth, protective surface layer.

5. Temperature Stability

Cast AlNiCo Magnets:AlNiCo magnets, in general, are known for their excellent temperature stability, with high Curie temperatures (typically above 800°C) that allow them to maintain their magnetic properties over a wide temperature range. Cast AlNiCo magnets, with their optimized crystal structure, often exhibit slightly better temperature stability compared to sintered magnets. This makes them suitable for applications requiring operation in extreme temperature environments, such as in aerospace, automotive, and industrial machinery.
Sintered AlNiCo Magnets:Sintered AlNiCo magnets also offer good temperature stability, although their performance may be slightly inferior to cast magnets at very high temperatures. The sintering process may introduce residual stresses or microstructural variations that could affect the magnet's thermal stability. However, with proper heat treatment and material selection, sintered AlNiCo magnets can still achieve excellent temperature stability and are widely used in applications where moderate temperature variations are expected.

6. Application Suitability

Cast AlNiCo Magnets:Cast AlNiCo magnets are preferred in applications requiring high magnetic performance, such as in high-power motors, generators, and sensors. Their ability to generate strong magnetic fields and resist demagnetization makes them ideal for these demanding applications. Additionally, their excellent temperature stability and corrosion resistance further enhance their suitability for use in harsh environments.
Sintered AlNiCo Magnets:Sintered AlNiCo magnets are more suitable for applications requiring precise dimensions, complex shapes, and moderate magnetic performance. Their improved machinability and dimensional accuracy make them ideal for use in miniature devices, medical instruments, and aerospace components. Additionally, their good temperature stability and corrosion resistance make them suitable for a wide range of applications where these properties are critical.

1. Introduction to AlNiCo Magnets
AlNiCo (Aluminum-Nickel-Cobalt) magnets are a class of permanent magnet materials known for their excellent temperature stability, high remanence (Br), and low reversible temperature coefficient. They are widely used in high-precision applications such as sensors, motors, aerospace components, and precision instruments. However, due to their brittleness, high hardness, and low toughness, AlNiCo magnets are prone to internal defects during manufacturing, which can significantly affect their magnetic performance and reliability.

Flaw detection in AlNiCo magnet blanks is crucial to ensure product quality and prevent premature failure in service. This article discusses the key inspection points in AlNiCo magnet blank flaw detection and identifies internal defects that can lead to magnet rejection.


2. Key Inspection Points in AlNiCo Magnet Blank Flaw Detection
2.1 Cracks and Micro-Cracks

Formation Causes:

Thermal Stress: During casting or sintering, rapid cooling can induce residual stresses, leading to crack formation.
Mechanical Stress: Cutting, grinding, or machining processes can cause micro-cracks due to the material’s brittleness.


Detection Methods:

X-ray Radiography (XRT): Detects internal cracks by analyzing variations in X-ray absorption.
Ultrasonic Testing (UT): Uses high-frequency sound waves to identify subsurface defects.
Dye Penetrant Testing (DPT): Reveals surface-breaking cracks by applying a fluorescent dye.


Impact on Magnet Performance:

Cracks can propagate under mechanical or thermal loading, leading to magnet fracture or loss of magnetic properties.



2.2 Porosity and Void Defects

Formation Causes:

Incomplete Compaction: During powder metallurgy or casting, insufficient pressure or improper sintering can leave voids.
Gas Entrapment: Molten AlNiCo may trap gases during solidification, forming porosity.


Detection Methods:

X-ray Computed Tomography (XCT): Provides 3D imaging of internal porosity.
Archimedes’ Method: Meures density to infer porosity levels.
Metallographic Examination: Reveals pore distribution under a microscope.


Impact on Magnet Performance:

Porosity reduces effective magnetic cross-section, leading to lower remanence (Br) and coercivity (Hc).
Severe porosity can cause mechanical weakness, increasing the risk of failure under stress.



2.3 Inclusions and Foreign Particles

Formation Causes:

Contamination: Raw material impurities or improper handling can introduce non-magnetic inclusions (e.g., oxides, carbides).
Reaction Products: High-temperature processing may form undesirable phases (e.g., α-Fe in AlNiCo).


Detection Methods:

Scanning Electron Microscopy (SEM) with Energy-Dispersive Spectroscopy (EDS): Identifies chemical composition of inclusions.
X-ray Diffraction (XRD): Determines crystalline phases present in the magnet.


Impact on Magnet Performance:

Inclusions disrupt magnetic domain alignment, reducing coercivity (Hc) and maximum energy product (BH)max.
Large inclusions can act as stress concentrators, leading to crack initiation.



2.4 Non-Uniform Microstructure

Formation Causes:

Improper Heat Treatment: Inadequate annealing or aging can result in uneven grain growth.
Segregation: Uneven distribution of alloying elements during solidification.


Detection Methods:

Optical Microscopy (OM): Observes grain size and distribution.
Electron Backscatter Diffraction (EBSD): Maps crystal orientation and grain boundaries.


Impact on Magnet Performance:

Non-uniform microstructure leads to anisotropic magnetic properties, reducing dimensional stability under thermal cycling.
Coarse grains can degrade mechanical strength, increasing brittleness.



2.5 Residual Stresses

Formation Causes:

Thermal Gradients: Uneven cooling during manufacturing induces stresses.
Mechanical Deformation: Machining or grinding processes can leave residual stresses.


Detection Methods:

X-ray Diffraction (XRD) Stress Analysis: Measures lattice strain to quantify residual stresses.
Hole-Drilling Method: Measures surface strains after drilling a small hole.


Impact on Magnet Performance:

Residual stresses can cause dimensional changes during service, affecting alignment in magnetic circuits.
High stresses may lead to spontaneous cracking under thermal or mechanical loading.




3. Internal Defects Leading to Magnet Rejection
3.1 Through-Thickness Cracks

Definition: Cracks that extend from one surface to the opposite surface.
Rejection Criteria:

Any crack penetrating more than 10% of the magnet’s thickness is unacceptable.
Cracks near critical regions (e.g., magnetic poles) may lead to immediate rejection.


Reason for Rejection:

Through-thickness cracks compromise structural integrity, increasing the risk of catastrophic failure in service.



3.2 High Porosity (>5%)

Definition: Porosity exceeding 5% by volume, as measured by Archimedes’ method or XCT.
Rejection Criteria:

Porosity >5% leads to significant reduction in magnetic performance and mechanical strength.


Reason for Rejection:

Excessive porosity reduces effective magnetic material, leading to lower remanence and coercivity.
Weakens the magnet, making it prone to fracture under stress.



3.3 Large Inclusions (>50 μm)

Definition: Non-magnetic inclusions or foreign particles larger than 50 μm in diameter.
Rejection Criteria:

Inclusions >50 μm disrupt magnetic domain alignment, causing localized demagnetization.


Reason for Rejection:

Large inclusions act as stress raisers, increasing the likelihood of crack propagation.
Degrade magnetic uniformity, affecting sensor or motor performance.



3.4 Severe Microstructural Segregation

Definition: Uneven distribution of alloying elements (e.g., Co, Ni) leading to localized variations in magnetic properties.
Rejection Criteria:

Segregation causing >10% variation in coercivity (Hc) across the magnet is unacceptable.


Reason for Rejection:

Non-uniform microstructure leads to unpredictable magnetic behavior, affecting dimensional stability in thermal environments.



3.5 Excessive Residual Stresses (>50 MPa)

Definition: Residual stresses exceeding 50 MPa, as measured by XRD or hole-drilling method.
Rejection Criteria:

Stresses >50 MPa may cause dimensional changes during service, leading to misalignment in magnetic circuits.


Reason for Rejection:

High residual stresses increase the risk of stress-corrosion cracking or spontaneous fracture.




4. Conclusion
Flaw detection in AlNiCo magnet blanks is essential to ensure high reliability and performance in demanding applications. The key inspection points include:


Cracks and micro-cracks
Porosity and void defects
Inclusions and foreign particles
Non-uniform microstructure
Residual stresses

Internal defects that lead to magnet rejection are:


Through-thickness cracks
High porosity (>5%)
Large inclusions (>50 μm)
Severe microstructural segregation
Excessive residual stresses (>50 MPa)

By implementing non-destructive testing (NDT) methods such as X-ray radiography, ultrasonic testing, and metallographic examination, manufacturers can identify and reject defective magnets early in production, ensuring only high-quality components reach the market.

Final Recommendation:


Use advanced NDT techniques (e.g., XCT, EBSD) for high-precision defect detection.
Implement real-time stress monitoring during manufacturing to minimize residual stresses.
Optimize heat treatment and compaction processes to reduce porosity and segregation.

This ensures that AlNiCo magnets meet the stringent requirements of aerospace, automotive, and high-precision industrial applications.

1. Introduction to Alnico Magnets
Alnico (Aluminum-Nickel-Cobalt) magnets, developed in the 1930s, are among the earliest permanent magnets used in industrial applications. Composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), iron (Fe), and trace elements like titanium (Ti) and copper (Cu), Alnico magnets exhibit high remanence (Br), low-temperature coefficients, and exceptional thermal stability, with operational temperatures exceeding 600°C.

Traditionally manufactured via casting or sintering, Alnico magnets were dominant in motors, sensors, and aerospace applications before being largely replaced by ferrite and rare-earth magnets (e.g., NdFeB, SmCo) due to cost and performance limitations. However, their cobalt content (5–12%) and nickel content (14–23%) have revived interest in recycling amid rising critical metal scarcity.


2. Maturity of Alnico Recycling Processes
2.1 Primary Recycling Methods
Alnico recycling involves physical separation, pyrometallurgical, and hydrometallurgical approaches, though no single method dominates due to the material’s unique properties.


Physical Separation & Direct Reuse

Process: Intact Alnico magnets (e.g., from decommissioned motors or sensors) are physically separated from non-magnetic components (e.g., steel casings, plastics) using magnetic separators, eddy current separators, or manual sorting.
Maturity: Highly mature for pre-sorted waste streams, such as industrial scrap or end-of-life (EOL) motors.
Limitations: Requires minimal contamination; ineffective for powdered or heavily oxidized magnets.


Pyrometallurgical Recycling

Process: Alnico scrap is melted in electric arc furnaces (EAF) or induction furnaces at 1,400–1,600°C to separate cobalt, nickel, and iron from slag.
Maturity: Moderately mature.
Advantages: High recovery rates for cobalt (≥90%) and nickel (≥85%); suitable for mixed scrap.
Disadvantages: High energy consumption; potential for metal loss if slag is not fully processed.


Hydrometallurgical Recycling

Process: Alnico is dissolved in acidic solutions (e.g., HCl, H₂SO₄) to leach cobalt, nickel, and iron, followed by solvent extraction or precipitation to isolate pure metals.
Maturity: Emerging, with research focused on optimizing leaching efficiency and reducing chemical waste.
Advantages: High purity of recovered metals (≥99.9%); lower energy demand than pyrometallurgy.
Disadvantages: Slow processing times; challenges in handling aluminum (which forms insoluble oxides).



2.2 Industry Adoption & Challenges

Global Capacity: As of 2026, fewer than 10 specialized Alnico recyclers operate globally, primarily in Japan, Germany, and China, with a combined annual capacity of <5,000 metric tons.
Key Barriers:

Scarcity of EOL Alnico: Most Alnico magnets remain in service (e.g., in legacy motors, aerospace systems), limiting waste availability.
High Processing Costs: Recycling Alnico is 2–3x more expensive than primary production due to low economies of scale.
Material Complexity: Alnico’s multi-element composition complicates separation compared to single-element magnets (e.g., NdFeB).




3. Economic Value of Recycled Alnico
3.1 Market Prices & Drivers

Cobalt & Nickel Prices: Alnico’s value is tied to cobalt (27,000–35,000/tonin2024)andnickel(18,000–25,000/ton), which account for 60–70% of its material cost.
Recycling Premium: Recycled Alnico commands a 10–15% premium over virgin material due to lower environmental impact and reduced reliance on conflict minerals (e.g., Congolese cobalt).
Price Range (2024):

High-grade Alnico scrap (clean, intact magnets): 38–46/kg(17.2–20.9/lb).
Low-grade scrap (contaminated, powdered): 22–30/kg(10.0–13.6/lb).



3.2 Cost Comparison: Recycling vs. Primary Production




Parameter
Recycled Alnico
Virgin Alnico




Energy Consumption
60–70% lower
High (smelting, refining)


CO₂ Emissions
50–60% lower
High (mining, transport)


Material Cost
70–80% of virgin price
Base reference


Processing Cost
$12–18/kg
$8–12/kg




Source: China Rare Earth Industry Association (2023)

3.3 Policy Incentives

EU Critical Raw Materials Act: Targets 15% recycling rate for cobalt by 2030, boosting Alnico recovery.
U.S. Inflation Reduction Act: Offers $35/kg tax credit for recycled cobalt used in clean energy technologies.
China’s “14th Five-Year Plan”: Funds $50 million for rare-earth-free magnet recycling R&D, including Alnico.


4. Performance Degradation in Recycled Alnico
4.1 Magnetic Properties After Recycling
Recycled Alnico magnets typically retain 90–95% of their original magnetic performance, depending on:


Recycling Method:

Pyrometallurgy: May introduce impurities (e.g., oxygen, carbon), reducing coercivity (Hc) by 5–10%.
Hydrometallurgy: Preserves purity but risks grain growth during sintering, lowering remanence (Br) by 3–5%.


Contamination Level: Scrap with >5% non-magnetic impurities (e.g., steel, plastic) degrades performance by 10–15%.

4.2 Long-Term Stability

Temperature Stability: Recycled Alnico maintains <0.02%/°C remanence loss up to 600°C, identical to virgin material.
Time-Dependent Decay: Annual magnetic loss is 0.1–0.3% for recycled Alnico, comparable to virgin magnets.

4.3 Case Studies

Sumitomo Metal Mining (Japan): Recycled Alnico magnets used in automotive sensors showed <2% performance drop over 10,000 operational hours.
Fraunhofer IWKS (Germany): Hydrometallurgically recycled Alnico for wind turbines achieved 94% of virgin Br after 5 years of field testing.


5. Conclusion & Outlook
Alnico recycling is technically viable but economically nascent, constrained by limited waste supply and high processing costs. However, rising cobalt/nickel prices, policy mandates, and advancements in hydrometallurgical separation (e.g., ionic liquids for aluminum removal) are improving viability.

Key Recommendations:


Expand Collection Networks: Partner with OEMs to recover Alnico from EOL industrial equipment.
Invest in R&D: Develop low-cost, low-energy recycling methods (e.g., bioleaching).
Standardize Grading: Create industry-wide classifications for recycled Alnico to reduce quality uncertainty.

By 2030, Alnico recycling could supply 10–15% of global cobalt demand for magnets, reducing reliance on primary mining and enhancing supply chain resilience.
