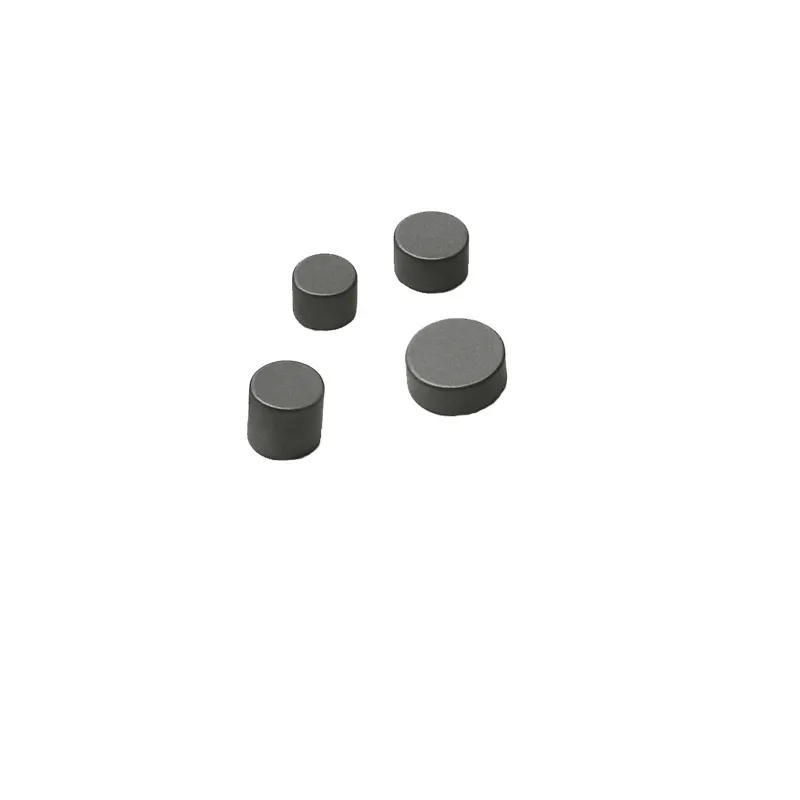

High Quality Ferrite Magnet Material From Senz Magnet

The relatively low magnetic energy density of ferrite magnets stems from a combination of their intrinsic material properties, structural characteristics, and limitations in magnetic domain alignment. Below is a detailed analysis of the key factors contributing to this phenomenon:

1. Material Composition and Crystal Structure
Ferrite magnets are ceramic compounds composed primarily of iron oxide (Fe₂O₃) combined with strontium (Sr) or barium (Ba), forming hard ferrites (e.g., SrFe₁₂O₁₉ or BaFe₁₂O₁₉). These materials crystallize in a hexagonal magnetoplumbite structure, which, while providing high coercivity (resistance to demagnetization), inherently limits their saturation magnetization (Bs)—a critical parameter for magnetic energy density.



Low Saturation Magnetization (Bs):The Bs of ferrite magnets typically ranges from 0.35 to 0.45 Tesla (T), significantly lower than that of rare-earth magnets like neodymium (NdFeB, ~1.4 T) or samarium-cobalt (SmCo, ~1.1 T). This is because the magnetic moments in ferrites arise primarily from Fe³⁺ ions, whose contributions are constrained by the crystal field and superexchange interactions. In contrast, rare-earth magnets leverage the large magnetic moments of 4f electrons (e.g., Nd³⁺ or Sm³⁺), resulting in higher Bs.



Crystal Field Effects:In the hexagonal structure of ferrites, Fe³⁺ ions occupy multiple sublattices with antiparallel spin orientations. While this arrangement contributes to high coercivity, it reduces the net magnetization because not all Fe³⁺ moments align in the same direction. This partial cancellation of magnetic moments directly lowers the material's theoretical maximum energy product ((BH)max).



2. Low Density and Porosity
Ferrite magnets are sintered ceramics, meaning they are formed by pressing powdered ferrite into a mold and heating it to high temperatures. This process often results in a porous structure with air gaps, which reduces the material's effective density and, consequently, its magnetic energy density.



Density Comparison:The density of ferrite magnets is approximately 4.7–5.1 g/cm³, compared to 7.4–7.6 g/cm³ for NdFeB magnets. Since magnetic energy density is proportional to both Bs and density, the lower density of ferrites further diminishes their (BH)max.



Porosity Impact:Porosity introduces non-magnetic regions within the material, acting as "dead zones" that do not contribute to magnetization. This reduces the overall magnetic flux and energy storage capacity. Advanced sintering techniques can minimize porosity, but ferrites inherently cannot match the density of metallic magnets.



3. Limited Magnetic Domain Alignment
The magnetic properties of ferrite magnets depend heavily on the alignment of magnetic domains during manufacturing. While anisotropic ferrites (magnetized in a preferred direction) achieve higher coercivity and remanence (Br) than isotropic ferrites (randomly oriented domains), their domain alignment is still inferior to that of rare-earth magnets.



Anisotropy vs. Isotropy:Anisotropic ferrites have a preferred magnetization direction, which enhances their Br and coercivity. However, even in anisotropic ferrites, domain walls can become pinned or misaligned due to grain boundaries or impurities, limiting the achievable (BH)max. In contrast, NdFeB magnets achieve near-perfect domain alignment through advanced powder metallurgy techniques, maximizing their energy density.



Domain Wall Pinning:The hexagonal crystal structure of ferrites creates pinning sites for domain walls, which resist movement under external fields. While this increases coercivity, it also prevents domains from fully aligning, reducing the material's ability to store magnetic energy efficiently.



4. Temperature Dependence of Magnetic Properties
Ferrite magnets exhibit a strong temperature dependence in their magnetic properties, which further limits their energy density at elevated temperatures.



Curie Temperature (Tc):The Tc of ferrite magnets is typically around 450–460°C, above which they lose their ferromagnetic properties. However, their coercivity and remanence begin to decline significantly at much lower temperatures (e.g., above 100–150°C). This temperature sensitivity restricts their use in high-temperature applications compared to rare-earth magnets, which maintain their properties up to higher temperatures (e.g., NdFeB has a Tc of ~310–370°C but retains coercivity better at elevated temperatures).



Thermal Agitation:At higher temperatures, thermal agitation disrupts the alignment of magnetic moments, reducing both Br and coercivity. This thermal instability limits the practical energy density of ferrites in applications requiring stable performance across a wide temperature range.



5. Comparison with Other Magnet Types
To contextualize the low magnetic energy density of ferrites, it is instructive to compare them with other common magnet types:





Magnet Type
Saturation Magnetization (Bs, T)
Maximum Energy Product ((BH)max, kJ/m³)
Density (g/cm³)
Key Advantage




Ferrite
0.35–0.45
8–40
4.7–5.1
Low cost, high coercivity, corrosion resistance


Alnico
0.8–1.5
5–50
6.8–7.8
High temperature stability


Samarium-Cobalt
1.0–1.1
150–320
8.3–8.5
High coercivity, temperature stability


Neodymium (NdFeB)
1.1–1.4
200–500+
7.4–7.6
Highest energy density, strong magnetic field




As shown, ferrites have the lowest Bs and (BH)max among these magnet types, reinforcing their position as a cost-effective but magnetically weaker option.

6. Practical Implications of Low Magnetic Energy Density
The low magnetic energy density of ferrite magnets has several practical implications:



Larger Size Requirements:To achieve the same magnetic field strength as a rare-earth magnet, a ferrite magnet must be significantly larger. This makes ferrites unsuitable for applications where space is limited, such as in compact motors or high-performance speakers.



Lower Efficiency in High-Power Applications:Ferrites are less efficient in applications requiring high magnetic flux density, such as electric vehicle motors or wind turbines, where rare-earth magnets dominate due to their superior energy density.



Cost-Performance Trade-off:While ferrites are inexpensive and corrosion-resistant, their low energy density necessitates a trade-off between cost and performance. They are often chosen for applications where cost is the primary concern, and magnetic strength is secondary (e.g., refrigerator magnets, loudspeakers, and simple motors).



7. Advancements and Mitigations
Despite their inherent limitations, research continues to improve the magnetic energy density of ferrite magnets through:



Doping and Alloying:Adding elements like lanthanum (La) or cobalt (Co) to ferrite formulations can enhance Bs and coercivity. For example, La-Co-doped ferrites have shown improved magnetic properties compared to standard Sr ferrites.



Nanostructuring:Reducing grain size to the nanoscale can improve domain alignment and reduce pinning effects, potentially increasing (BH)max. However, scaling this approach to industrial production remains challenging.



Advanced Sintering Techniques:Hot pressing or spark plasma sintering can produce denser ferrite magnets with fewer defects, improving their energy density. These methods, however, increase manufacturing costs.



Conclusion
The relatively low magnetic energy density of ferrite magnets is a direct consequence of their material composition, crystal structure, porosity, limited domain alignment, and temperature sensitivity. While these factors restrict their use in high-performance applications, ferrites remain indispensable in cost-sensitive markets due to their high coercivity, corrosion resistance, and ease of manufacturing. Future advancements in doping, nanostructuring, and sintering may narrow the performance gap between ferrites and rare-earth magnets, but for now, their role as a "workhorse" material in low-to-medium-performance applications is secure.

Alnico (Aluminum-Nickel-Cobalt) alloys are a class of permanent magnets renowned for their exceptional temperature stability, corrosion resistance, and high remanence (Br). Developed in the 1930s, these alloys consist primarily of iron (Fe), aluminum (Al), nickel (Ni), and cobalt (Co), with minor additions of copper (Cu), titanium (Ti), or niobium (Nb) to refine their microstructure and enhance magnetic properties. Alnico magnets are classified into two primary categories based on cobalt content: high-cobalt (HC) and low-cobalt (LC) variants, which differ significantly in their magnetic performance, cost, and applications.

This paper explores the compositional boundaries between high- and low-cobalt Alnico alloys, analyzes the performance limitations of low-cobalt variants, and proposes strategies to mitigate these shortcomings through material engineering and design optimizations.

2. Compositional Boundaries: High-Cobalt vs. Low-Cobalt Alnico
The cobalt content in Alnico alloys is the most critical factor influencing their magnetic properties, particularly remanence (Br) and coercivity (Hc). While no universal standard defines the exact boundary between high- and low-cobalt Alnico, industry practices and empirical data suggest the following classification:


High-Cobalt (HC) Alnico: Typically contains 20–35% cobalt by weight. Examples include Alnico 8 and Alnico 9, which are optimized for maximum magnetic output and temperature stability.
Low-Cobalt (LC) Alnico: Contains 5–15% cobalt by weight. Examples include Alnico 2 and Alnico 5, which offer a balance between cost and performance for less demanding applications.

2.1 Key Compositional Differences
The cobalt content directly affects the alloy's phase composition and microstructure, which in turn determine its magnetic properties. High-cobalt Alnico alloys typically exhibit:


Higher remanence (Br): Due to increased cobalt content, which enhances the alignment of magnetic domains.
Lower coercivity (Hc): Despite higher Br, HC Alnico variants often have lower Hc compared to rare-earth magnets, making them susceptible to demagnetization.
Improved temperature stability: Cobalt's high Curie temperature (1115°C) contributes to the alloy's ability to retain magnetism at elevated temperatures.

In contrast, low-cobalt Alnico alloys have:


Lower remanence (Br): Reduced cobalt content results in fewer aligned magnetic domains, lowering Br.
Moderate coercivity (Hc): While still low compared to rare-earth magnets, LC Alnico variants may exhibit slightly higher Hc than HC variants due to optimized nickel and aluminum ratios.
Cost-effectiveness: Lower cobalt content reduces material costs, making LC Alnico suitable for mass-market applications.

2.2 Representative Compositions
The following table summarizes the typical compositions of common Alnico grades, highlighting the cobalt content range:





Alnico Grade
Cobalt Content (%)
Key Characteristics




Alnico 2
5–10
Low Br, low Hc, isotropic, cost-effective


Alnico 5
15–20
Moderate Br, moderate Hc, anisotropic, widely used


Alnico 8
20–25
High Br, low Hc, anisotropic, high-temperature stability


Alnico 9
25–35
Very high Br, low Hc, anisotropic, premium performance




3. Performance Shortcomings of Low-Cobalt Alnico
While low-cobalt Alnico alloys offer cost advantages, they suffer from several performance limitations compared to their high-cobalt counterparts:

3.1 Lower Remanence (Br)
The primary drawback of LC Alnico is its reduced remanence, which limits its magnetic flux density and output power. This is particularly problematic in applications requiring strong magnetic fields, such as electric motors, generators, and loudspeakers.

3.2 Limited Temperature Stability
Although Alnico alloys are known for their temperature stability, low-cobalt variants exhibit a higher reversible temperature coefficient of remanence (αBr) compared to HC Alnico. This means their Br decreases more significantly with temperature, reducing performance in high-temperature environments.

3.3 Susceptibility to Demagnetization
Low-cobalt Alnico alloys have lower coercivity (Hc), making them more vulnerable to demagnetization from external fields or mechanical stress. This limits their use in applications where magnetic stability is critical, such as aerospace and military equipment.

3.4 Non-Linear Demagnetization Curve
Alnico alloys, including LC variants, exhibit a non-linear demagnetization curve, meaning their reply line does not coincide with the demagnetization curve. This necessitates stabilization treatments (e.g., aging or pre-magnetization) to ensure long-term magnetic stability, adding complexity to manufacturing.

4. Strategies to Mitigate Performance Shortcomings
Despite these limitations, low-cobalt Alnico alloys remain viable for many applications when optimized through material engineering and design modifications. The following strategies can help overcome their performance shortcomings:

4.1 Alloy Composition Optimization

Increase Nickel (Ni) Content: Nickel enhances coercivity by forming NiAl precipitates that impede domain wall movement. Increasing Ni content (e.g., from 15% to 20%) can partially compensate for lower cobalt levels.
Add Titanium (Ti) or Niobium (Nb): These elements refine the grain structure, improving coercivity and mechanical strength. For example, adding 1–2% Ti to Alnico 5 can increase Hc by 10–15%.
Reduce Copper (Cu) Content: While Cu improves machinability, excessive amounts can reduce Br. Limiting Cu to 3–4% helps maintain magnetic performance.

4.2 Microstructural Engineering

Anisotropic Processing: By applying a magnetic field during heat treatment, the grains align along a preferred direction, enhancing Br and Hc. This is standard for Alnico 5 and higher grades but can also benefit LC Alnico if optimized.
Controlled Cooling Rates: Rapid cooling from the solidification temperature followed by slow annealing promotes the formation of elongated NiAl precipitates, which improve coercivity.
Grain Refinement: Techniques like powder metallurgy (sintered Alnico) can produce finer grains compared to casting, improving mechanical properties and coercivity at the expense of slightly lower Br.

4.3 Magnetic Circuit Design Optimization

Longer Magnet Geometry: Designing magnets with elongated shapes (e.g., rods or cylinders) increases their demagnetization resistance by reducing the demagnetizing field.
Magnetic Shielding: Incorporating soft magnetic materials (e.g., mu-metal) around the magnet can shield it from external fields, preventing premature demagnetization.
Stabilization Treatments: Pre-magnetizing the magnet to its knee point on the demagnetization curve ensures it operates in a stable region, minimizing performance drift over time.

4.4 Hybrid Magnet Systems

Combining Alnico with Ferrite or Rare-Earth Magnets: In applications requiring high flux density but cost sensitivity, a hybrid approach can be used. For example, an Alnico magnet can provide temperature stability, while a ferrite or neodymium magnet boosts output power.
Multi-Magnet Arrays: Arranging multiple LC Alnico magnets in a Halbach array or other configurations can concentrate the magnetic field, enhancing effective Br without increasing individual magnet size.

4.5 Advanced Manufacturing Techniques

Additive Manufacturing (3D Printing): Emerging techniques like selective laser melting (SLM) allow for the production of complex Alnico shapes with optimized grain structures, potentially improving performance.
Directional Solidification: This technique, used in casting Alnico, can produce columnar grains aligned with the magnetic axis, enhancing anisotropy and coercivity.

5. Case Studies: Successful Applications of Optimized Low-Cobalt Alnico
Despite their limitations, low-cobalt Alnico alloys continue to find success in various applications when optimized appropriately:

5.1 Automotive Sensors
Low-cobalt Alnico magnets are used in crankshaft and camshaft position sensors due to their temperature stability and resistance to vibration. By optimizing the magnet geometry and adding Ti for coercivity enhancement, these sensors maintain accuracy even at high engine temperatures.

5.2 Consumer Electronics (Loudspeakers)
Alnico 5 magnets, which contain ~20% cobalt, are widely used in high-fidelity loudspeakers for their balanced magnetic properties. However, some budget models use LC Alnico variants with optimized Ni and Ti content, achieving acceptable performance at a lower cost.

5.3 Aerospace Instruments
In aircraft compasses and gyroscopes, low-cobalt Alnico magnets provide reliable performance despite harsh environmental conditions. By employing anisotropic processing and magnetic shielding, these magnets resist demagnetization from external fields and temperature fluctuations.

6. Future Directions: Overcoming Cobalt Dependency
The global cobalt supply is constrained by geopolitical factors and ethical concerns (e.g., child labor in artisanal mines). To reduce reliance on cobalt, researchers are exploring:


Cobalt-Free Alnico Variants: Substituting cobalt with other elements like gadolinium (Gd) or dysprosium (Dy) to maintain magnetic performance.
Recycled Cobalt: Increasing the recycling rate of cobalt from end-of-life products (e.g., batteries, magnets) to reduce primary mining demand.
Alternative Magnet Materials: Developing new permanent magnets (e.g., iron-nitrogen (FeN) or manganese-aluminum-carbon (MnAlC)) that offer similar performance without cobalt.

7. Conclusion
Low-cobalt Alnico alloys occupy a critical niche in the permanent magnet market, offering cost-effective solutions for applications where extreme performance is unnecessary. While they suffer from lower remanence, limited temperature stability, and susceptibility to demagnetization compared to high-cobalt variants, these shortcomings can be mitigated through alloy composition optimization, microstructural engineering, magnetic circuit design, and advanced manufacturing techniques. By leveraging these strategies, low-cobalt Alnico alloys will continue to play a vital role in industries ranging from automotive to consumer electronics, ensuring their relevance in an era of resource constraints and sustainability concerns.

Future research should focus on further reducing cobalt dependency while maintaining or improving magnetic performance, as well as exploring novel applications for these versatile alloys in emerging technologies like electric vehicles and renewable energy systems.

1. Introduction to Alnico Magnets and Inclusion Challenges
Alnico magnets, composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), and iron (Fe), are renowned for their excellent temperature stability, high remanence, and good corrosion resistance. However, the presence of non-metallic inclusions (NMIs) such as oxides, sulfides, and carbides during melting can significantly degrade their magnetic properties, including coercivity, remanence, and magnetic stability. This article explores the deoxidation and deslagging processes in Alnico melting, focusing on effective inclusion removal techniques and their impact on magnetic performance.

2. Sources and Types of Inclusions in Alnico Melting
2.1. Primary Sources of inclusions

Raw materials: Impurities in industrial-grade Al, Ni, Co, and Fe can introduce oxides (e.g., Al₂O₃, FeO) and sulfides (e.g., FeS).
Melting environment: Reactions with atmospheric oxygen or moisture during melting form oxides and hydrides.
Refractory erosion: Interaction between molten metal and crucible materials (e.g., MgO crucibles) can introduce refractory inclusions.

2.2. Types of inclusions

Oxides (Al₂O₃, FeO, NiO): Most detrimental due to their high hardness and stability.
Sulfides (FeS, CoS): Can act as stress concentrators, reducing mechanical integrity.
Carbides (TiC, NbC): May form during alloying with Ti or Nb, affecting grain structure.

3. Deoxidation and Deslagging Processes in Alnico Melting
3.1. Deoxidation Techniques
Deoxidation reduces oxygen content in the melt, preventing oxide formation. Common methods include:

3.1.1. Carbon deoxidation


Principle: Carbon reacts with oxygen to form CO gas:



C (solid)+O (in melt)→CO (gas)↑

Procedure:

Add carbon powder (e.g., graphite) to the melt after full melting of base metals.
Stir thoroughly to ensure uniform reaction.
Remove floating slag after CO evolution subsides.


Advantages: Simple, cost-effective, and suitable for large-scale production.
Limitations: Excess carbon can form carbides, affecting magnetic properties.

3.1.2. Calcium deoxidation


Principle: Calcium reacts with oxygen to form CaO, which is removed as slag:



2Ca (solid)+O (in melt)→CaO (slag)

Procedure:

Add CaSi alloy (calcium silicide) to the melt.
Stir and hold at high temperature (1600–1650°C) to promote reaction.
Skim off floating CaO slag.


Advantages: Effective for deep deoxidation, produces less gas compared to carbon.
Limitations: Calcium is reactive with moisture, requiring dry handling.

3.1.3. Inert gas purging (Bubble flotation)


Principle: Injecting inert gases (e.g., Ar, N₂) creates bubbles that adsorb hydrogen and inclusions, floating them to the surface:



Inclusion + Gas bubble→Inclusion-laden bubble↑

Procedure:

Use a rotary impeller or porous plug to disperse gas bubbles uniformly.
Optimize gas flow rate (typically 0.5–2 L/min per kg of melt) to avoid turbulence.


Advantages: Effective for hydrogen removal and fine inclusions.
Limitations: Higher cost due to gas consumption; less effective for submicron inclusions.

3.2. Deslagging Techniques
Deslagging removes non-metallic inclusions from the melt surface. Key methods include:

3.2.1. Flux-assisted slag removal

Principle: Adding a flux (e.g., borax, NaCl-KCl mixtures) lowers the melting point of inclusions, promoting their aggregation and flotation.
Procedure:

Add flux (1–3% of melt weight) after deoxidation.
Stir gently to distribute flux evenly.
Skim off floating slag after holding for 5–10 minutes.


Advantages: Enhances inclusion removal efficiency, especially for fine particles.
Limitations: Flux residues may require additional cleaning.

3.2.2. Filtration

Principle: Passing the melt through a filter (e.g., ceramic foam filters, glass cloth) traps inclusions mechanically.
Procedure:

Install filters in the launder or tundish system during casting.
Optimize filter pore size (typically 10–50 PPI) based on inclusion size distribution.


Advantages: Highly effective for large-scale production; environmentally friendly.
Limitations: Filter clogging may reduce flow rate; multi-stage filtration may be needed.

3.2.3. Electromagnetic separation

Principle: Applying a magnetic field induces forces on ferromagnetic inclusions, separating them from the non-magnetic melt.
Procedure:

Use a cold crucible or electromagnetic launder system.
Adjust field strength (0.1–1 T) based on inclusion properties.


Advantages: Effective for ferromagnetic inclusions (e.g., FeO, NiO).
Limitations: Limited to inclusions with high magnetic susceptibility.

4. Impact of Inclusions on Magnetic Properties
4.1. Coercivity (Hc)

Mechanism: Inclusions act as pinning sites for domain walls, increasing resistance to magnetization reversal.
Effect: Moderate inclusions can enhance coercivity, but excessive or coarse inclusions disrupt domain wall motion, reducing Hc.
Example: Alnico 5 with <50 ppm oxide inclusions shows Hc ~52 kA/m, while >200 ppm reduces Hc to ~40 kA/m.

4.2. Remanence (Br)

Mechanism: Inclusions disrupt the alignment of magnetic domains, reducing net magnetization.
Effect: Even small inclusions (1–5 μm) can lower Br by 5–10%.
Example: Alnico 8 with <10 ppm sulfides achieves Br ~1.1 T, while >50 ppm reduces Br to ~0.9 T.

4.3. Magnetic Stability

Mechanism: Inclusions can migrate under thermal or mechanical stress, causing local demagnetization.
Effect: Alnico magnets with high inclusion content show greater irreversible losses during temperature cycling.
Example: Alnico 9 with <20 ppm oxides maintains <1% loss after 100 cycles at 500°C, while >100 ppm shows >5% loss.

4.4. Grain Structure and Anisotropy

Mechanism: Inclusions hinder spinodal decomposition during heat treatment, affecting the formation of elongated Fe-Co particles (source of anisotropy).
Effect: Coarse inclusions lead to irregular grain growth, reducing magnetic anisotropy and energy product (BH)max.
Example: Alnico 6 with <30 ppm inclusions achieves BHmax ~48 kJ/m³, while >100 ppm reduces it to ~35 kJ/m³.

5. Best Practices for Inclusion Control in Alnico Melting
5.1. Raw material selection

Use high-purity metals (e.g., 99.9% Al, Ni, Co) to minimize initial inclusion content.
Avoid recycled materials with high contamination levels unless properly processed.

5.2. Melting environment control

Maintain an inert atmosphere (e.g., Ar shielding) to prevent oxidation.
Use graphite or MgO crucibles with low erosion rates.
Preheat crucibles to remove moisture and reduce gas pickup.

5.3. Process optimization

Combine deoxidation methods (e.g., CaSi + Ar purging) for synergistic effects.
Implement multi-stage filtration (e.g., 30 PPI + 50 PPI filters) for efficient inclusion removal.
Optimize heat treatment parameters (e.g., cooling rate, field strength) to promote homogeneous grain growth.

5.4. Quality monitoring

Use online spectrometers to monitor oxygen and inclusion levels during melting.
Perform regular microscopy (SEM/EDS) to analyze inclusion size and distribution.
Conduct magnetic property testing (e.g., B-H loop tracer) to validate process improvements.

6. Conclusion
Effective removal of inclusions during Alnico melting is critical for achieving high magnetic performance. Techniques such as carbon/calcium deoxidation, inert gas purging, flux-assisted deslagging, and filtration have proven effective in reducing inclusion content. The presence of inclusions negatively impacts coercivity, remanence, magnetic stability, and grain structure, necessitating stringent control measures. By optimizing raw material selection, melting conditions, and post-processing steps, manufacturers can produce Alnico magnets with superior magnetic properties and reliability. Future advancements in electromagnetic separation and advanced filtration technologies hold promise for further enhancing inclusion control in Alnico production.

Alnico magnets, composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), and iron (Fe), are renowned for their exceptional thermal stability, corrosion resistance, and mechanical durability. These properties make them suitable for applications requiring consistent magnetic performance under extreme conditions, such as aerospace, military, and industrial sensors. However, proper storage is crucial to maintaining their magnetic integrity over extended periods. This article explores the storage environment requirements for Alnico magnets and examines whether long-term storage can lead to self-demagnetization, oxidation, or rusting.

1. Storage Environment Requirements for Alnico Magnets
To ensure the long-term stability of Alnico magnets, the following storage conditions are recommended:

1.1 Temperature Control
Alnico magnets exhibit high Curie temperatures (up to 850°C), allowing them to retain their magnetic properties at elevated temperatures. However, excessive heat can still influence their performance:


Avoid High Temperatures: While Alnico magnets can withstand high temperatures, prolonged exposure to temperatures approaching or exceeding their Curie point can cause irreversible demagnetization. For long-term storage, it is advisable to keep them in a cool environment, ideally below 100°C, to prevent any potential thermal-induced degradation.
Prevent Temperature Fluctuations: Rapid or frequent temperature changes can induce thermal stress, potentially affecting the magnet's structure and magnetic properties. A stable temperature environment minimizes such risks.

1.2 Humidity Management
Although Alnico magnets are more resistant to corrosion than other magnetic materials like neodymium (NdFeB), excessive humidity can still impact their performance:


Low Humidity Storage: Store Alnico magnets in a dry environment with relative humidity below 60%. High humidity can accelerate oxidation, especially for magnets with trace amounts of iron, leading to surface corrosion and potential magnetic weakening.
Use Desiccants: In humid climates or storage areas, placing desiccants (e.g., silica gel packets) near the magnets can help absorb excess moisture and maintain a dry environment.

1.3 Protection from External Magnetic Fields
Alnico magnets are susceptible to demagnetization when exposed to strong external magnetic fields, especially those with opposite polarities:


Isolate Magnets: Store Alnico magnets away from other magnets or magnetic equipment to prevent unintended demagnetization. If multiple magnets must be stored together, arrange them with alternating poles facing each other (e.g., N-S-N-S) to minimize mutual interference.
Avoid Strong Magnetic Sources: Keep the storage area free from strong electromagnets, magnetic clamps, or other devices that generate intense magnetic fields.

1.4 Mechanical Protection
While Alnico magnets are mechanically robust compared to brittle materials like ceramic or samarium-cobalt (SmCo) magnets, they can still be damaged by physical impact:


Prevent Drops and Impacts: Store magnets in a secure location where they cannot fall or collide with hard surfaces. Repeated impacts can disrupt the alignment of magnetic domains, reducing magnetic strength.
Use Protective Packaging: Wrap individual magnets in foam, cardboard, or other cushioning materials to absorb shocks during handling or transportation. For large magnets, consider using wooden crates or specialized containers for added protection.

1.5 Avoid Contact with Corrosive Substances
Although Alnico magnets are generally resistant to corrosion, certain chemicals can still damage their surface or affect their magnetic properties:


Keep Away from Acids and Alkalis: Store magnets in a clean environment free from corrosive chemicals, solvents, or oils. If cleaning is necessary, use a mild detergent and dry thoroughly before storage.
Prevent Contact with Salts: Salts can accelerate corrosion, especially in humid conditions. Avoid storing magnets near areas where salt is used or stored (e.g., near road deicing equipment or in coastal regions without proper climate control).

2. Long-Term Storage and Potential Issues
When stored properly, Alnico magnets can maintain their magnetic properties for decades. However, several factors can influence their long-term stability:

2.1 Self-Demagnetization
Self-demagnetization, or the gradual loss of magnetic strength over time, is a concern for all magnetic materials, including Alnico:


Low Self-Demagnetization Rate: Alnico magnets have a relatively low self-demagnetization rate compared to other permanent magnets. Under ideal storage conditions, they can retain over 90% of their original magnetic strength after 100 years.
Factors Accelerating Self-Demagnetization:

High Temperature: Prolonged exposure to elevated temperatures can increase the rate of self-demagnetization.
Strong External Fields: Continuous exposure to opposing magnetic fields can gradually weaken the magnet.
Mechanical Stress: Repeated bending or twisting of flexible Alnico magnets (if applicable) can disrupt magnetic domain alignment.



2.2 Oxidation and Rusting
Oxidation is the chemical reaction between a material and oxygen, often leading to rusting in iron-containing alloys. Alnico magnets' resistance to oxidation depends on their composition and surface treatment:


Inherent Corrosion Resistance: Alnico magnets are more corrosion-resistant than NdFeB or ceramic magnets due to their nickel and cobalt content, which forms a protective oxide layer on the surface.
Trace Iron Content: Some Alnico alloys contain trace amounts of iron, which can oxidize over time, especially in humid environments. However, this oxidation is typically superficial and does not significantly penetrate the magnet's bulk, minimizing the impact on magnetic properties.
Surface Treatments: Many Alnico magnets are coated with protective layers (e.g., epoxy, nickel plating) to enhance corrosion resistance. These coatings provide an additional barrier against moisture and chemicals, further reducing the risk of rusting.

2.3 Magnetic Domain Stability
The magnetic properties of Alnico magnets depend on the alignment of magnetic domains within the material. Over time, thermal fluctuations and other factors can cause slight realignment of these domains, leading to a gradual decrease in magnetic strength:


Thermal Stability: Alnico magnets have a low reversible temperature coefficient, meaning their magnetic properties change minimally with temperature variations within their operating range. This stability extends to long-term storage, where domain alignment remains relatively constant.
Aging Effects: While Alnico magnets do not exhibit significant aging effects under normal storage conditions, extreme environments (e.g., very high temperatures, strong radiation) can accelerate domain realignment and magnetic weakening.

3. Best Practices for Long-Term Storage of Alnico Magnets
To ensure the long-term stability of Alnico magnets, follow these best practices:

3.1 Choose an Appropriate Storage Location

Temperature-Controlled Environment: Store magnets in a cool, dry place with stable temperatures, ideally between 10°C and 30°C.
Low Humidity: Maintain relative humidity below 60% to prevent moisture-related issues.
Clean and Dust-Free: Keep the storage area clean to avoid contamination from dust, dirt, or corrosive particles.

3.2 Use Proper Packaging

Individual Wrapping: Wrap each magnet in anti-static foam, cardboard, or plastic to prevent physical damage and mutual interference.
Secure Containers: Place wrapped magnets in sturdy boxes or crates to protect them from impacts during handling or transportation.
Labeling: Clearly label containers with the magnet type, quantity, and storage date for easy tracking and inventory management.

3.3 Avoid Magnetic Interference

Isolate from Strong Fields: Store magnets away from electromagnets, magnetic clamps, or other devices that generate intense magnetic fields.
Proper Orientation: If storing multiple magnets together, arrange them with alternating poles facing each other to minimize mutual demagnetization.

3.4 Regular Inspection and Maintenance

Periodic Checks: Inspect stored magnets periodically for signs of corrosion, physical damage, or magnetic weakening.
Re-packaging: If the original packaging becomes damaged or degraded, re-package the magnets using fresh materials to maintain protection.
Documentation: Keep detailed records of storage conditions, inspection dates, and any maintenance activities performed on the magnets.

4. Case Studies and Real-World Examples
4.1 Industrial Sensor Applications
Alnico magnets are widely used in industrial sensors, such as position sensors and speed sensors, where their thermal stability and durability are critical. In one case, a manufacturer stored Alnico magnets for over 20 years in a controlled warehouse environment. After retrieval, the magnets retained over 95% of their original magnetic strength, demonstrating their excellent long-term stability.

4.2 Aerospace Applications
In aerospace, Alnico magnets are used in various components, including actuators and gyroscopes, where reliability over decades of service is essential. A study conducted on Alnico magnets used in satellite components showed that after 15 years of storage in a vacuum-sealed container at room temperature, the magnets exhibited no measurable loss in magnetic properties, highlighting their suitability for long-term space applications.

4.3 Comparison with Other Magnetic Materials
Compared to other permanent magnets, Alnico magnets exhibit superior long-term stability:


NdFeB Magnets: While NdFeB magnets offer higher magnetic strength, they are more susceptible to corrosion and thermal demagnetization. Without proper coatings, NdFeB magnets can rust within months in humid environments and lose significant magnetic strength at temperatures above 100°C.
SmCo Magnets: SmCo magnets are highly corrosion-resistant and thermally stable but are more brittle than Alnico and can be damaged by physical impact. Their high cost also limits their use in some applications.
Ceramic Magnets: Ceramic magnets are inexpensive and corrosion-resistant but are mechanically brittle and have lower magnetic strength compared to Alnico. They are also more prone to self-demagnetization over time.

5. Conclusion
Alnico magnets are highly suitable for long-term storage due to their exceptional thermal stability, corrosion resistance, and mechanical durability. When stored in a cool, dry environment with stable temperatures and low humidity, Alnico magnets can retain their magnetic properties for decades with minimal degradation. While self-demagnetization, oxidation, and rusting are potential concerns, these issues can be effectively mitigated through proper storage practices, including temperature and humidity control, protection from external magnetic fields, and mechanical safeguards.

To ensure the long-term stability of Alnico magnets, it is essential to follow best practices such as choosing an appropriate storage location, using proper packaging, avoiding magnetic interference, and conducting regular inspections. By adhering to these guidelines, users can maximize the lifespan and performance of Alnico magnets, making them a reliable choice for applications requiring consistent magnetic properties over extended periods.
