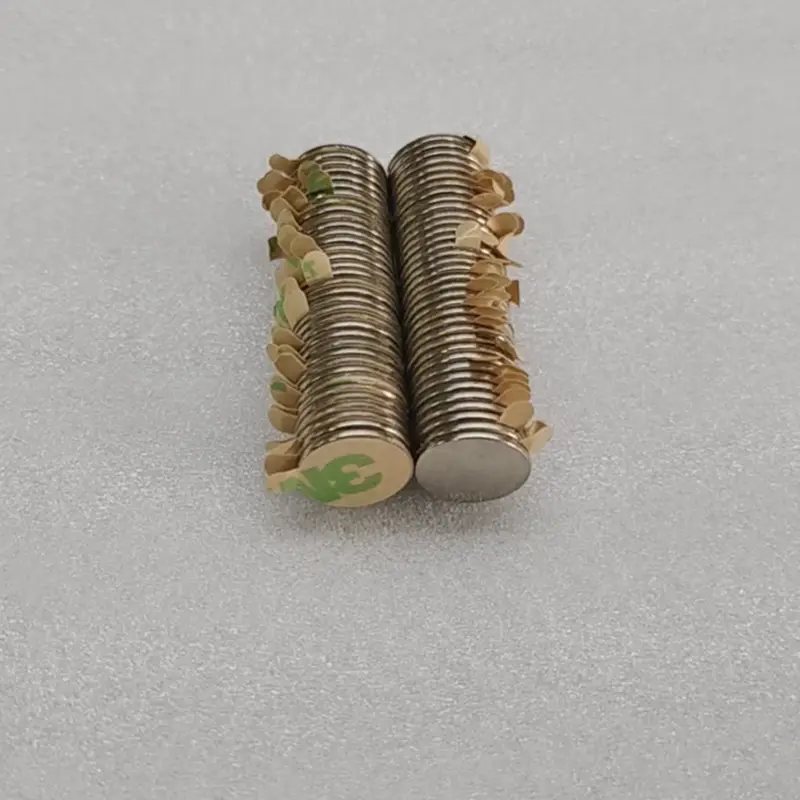

High Quality Cylindrical Neodymium Magnets

2. Breakage Under High Temperature
2.1 Thermal Demagnetization and Structural Degradation
Neodymium magnets exhibit a negative temperature coefficient, meaning their magnetic strength decreases with rising temperature. The Curie temperature (≈310°C for standard grades) marks the point at which all magnetic properties are lost. However, even below this threshold, permanent damage can occur:


Standard grades (N series): Lose significant magnetism above 80°C, with irreversible degradation starting at 100–120°C.
High-temperature grades (H, SH, UH, EH series): Withstand temperatures up to 200°C due to optimized microstructures and coercivity-enhancing additives (e.g., dysprosium, terbium).

Mechanism: Elevated temperatures disrupt the alignment of magnetic domains, reducing remanence and coercivity. Prolonged exposure or thermal cycling accelerates oxidation, leading to brittleness and microcracking.

2.2 Thermal Shock and Cracking
Sudden temperature changes induce thermal stress due to differential expansion between the NdFeB matrix and protective coatings (e.g., nickel, epoxy). This can cause:


Surface cracks: From rapid cooling after soldering or welding.
Internal fractures: In large magnets with uneven heat distribution.

Prevention: Avoid rapid temperature transitions; use temperature-resistant grades for high-heat applications.

3. Breakage Under Impact
3.1 Mechanical Fracture Mechanisms
Neodymium magnets are brittle ceramics with low toughness (impact resistance). Common impact scenarios include:


Dropping or collision: Sharp edges concentrate stress, causing chipping or fragmentation.
Magnetic clashing: When two magnets collide at high speed, the force can exceed 1,000 N for small magnets, leading to shattering.
Vibration in machinery: Prolonged oscillatory stress induces fatigue cracks.

Case Study: A study by the University of Cambridge found that NdFeB magnets subjected to a 2 m drop test exhibited fractures propagating along grain boundaries, reducing magnetic strength by 15–20%.

3.2 Protective Measures

Design modifications: Use rounded edges or rubber buffers to distribute stress.
Mounting techniques: Secure magnets with non-magnetic fixtures (e.g., aluminum brackets) to prevent sudden movement.
Material selection: Opt for bonded NdFeB magnets (with polymer binders) for applications requiring impact resistance, though they sacrifice 10–20% magnetic strength compared to sintered variants.

4. Safety Hazards of Broken Magnetic Powder
4.1 Physical Hazards

Sharp particles: Broken magnets produce jagged fragments capable of cutting skin or eyes.
Inhalation risk: Airborne dust (<10 µm) can lodge in lungs, causing pneumoconiosis (similar to coal workers’ disease).
Ingestion/aspiration: Swallowed or inhaled particles may require surgical removal due to magnetic attraction in the digestive tract.

4.2 Fire and Explosion Risks

Oxidation and spontaneous combustion: Dry NdFeB powder reacts exothermically with oxygen, reaching ignition temperatures (>200°C) in minutes. Fine particles (<50 µm) are particularly hazardous.
Dust explosions: Concentrations of 20–60 g/m³ in air can ignite from static discharge or friction, producing pressures exceeding 1 bar.

Regulatory Context: The OSHA Hazard Communication Standard classifies NdFeB powder as a combustible dust, requiring facilities to implement explosion-proof ventilation and grounding systems.

4.3 Chemical and Allergic Hazards

Nickel coating: Causes contact dermatitis in 10–20% of the population.
Heavy metal toxicity: Neodymium and dysprosium are neurotoxic in high doses, though acute exposure from broken magnets is rare.

5. Safe Handling of Broken Magnetic Powder
5.1 Personal Protective Equipment (PPE)

Respiratory protection: Use NIOSH-approved N95 respirators for dust; P100 filters for high-risk scenarios.
Eye protection: Wear ANSI Z87.1-compliant goggles to prevent particle entry.
Gloves: Nitrile or neoprene gloves resist punctures and chemical exposure.
Protective clothing: Coveralls with elastic cuffs to minimize skin contact.

5.2 Cleanup Procedures

Isolation: Evacuate the area and post warning signs.
Wetting: Gently spray water or a 5% sodium bicarbonate solution to suppress dust and neutralize static charges.
Collection: Use a HEPA-filtered vacuum (not a broom) to gather powder. Avoid dry sweeping, which generates airborne particles.
Disposal: Place waste in sealed, labeled containers (e.g., HDPE drums) and dispose of as hazardous waste per local regulations (e.g., EPA RCRA standards in the U.S.).

Pro Tip: For large spills, consult a certified industrial hygienist to assess air quality and decontamination needs.

5.3 Storage and Transportation

Containers: Use non-magnetic, airtight vessels (e.g., stainless steel or plastic) lined with inert material (e.g., sand or vermiculite).
Labeling: Mark containers with GHS pictograms for flammable solids and health hazards.
Segregation: Store away from oxidizers, acids, and incompatible metals (e.g., aluminum, which may react exothermically).

5.4 Emergency Response

Fire suppression: Use Class D extinguishers (for metal fires) or dry sand. Never use water or CO₂, which can spread powder.
First aid:

Inhalation: Move to fresh air; seek medical attention if coughing persists.
Ingestion: Do not induce vomiting; drink water and consult a poison control center.
Skin contact: Wash with soap and water; apply corticosteroid cream for rashes.



6. Best Practices for Preventing Breakage

Design robustness: Use finite element analysis (FEA) to optimize magnet geometry for stress distribution.
Quality control: Inspect magnets for microcracks using X-ray or ultrasonic testing before assembly.
Environmental controls: Maintain humidity <60% and temperature <50°C to slow oxidation.
Employee training: Conduct annual safety drills on dust handling and emergency procedures.

7. Conclusion
Neodymium magnets are indispensable in modern technology but require careful handling to avoid breakage from high temperatures or impact. Broken magnetic powder poses significant physical, fire, and health hazards, necessitating rigorous safety protocols. By understanding the failure mechanisms and implementing preventive measures, industries can harness the full potential of NdFeB magnets while safeguarding workers and equipment.

Final Recommendation: For high-risk applications, consider samarium-cobalt (SmCo) magnets, which offer superior temperature stability (up to 350°C) and corrosion resistance, albeit at a higher cost and lower magnetic strength.

Customizing special-shaped magnets involves a multi-step process that requires precision, expertise, and specialized equipment. These magnets, which deviate from standard shapes like circles, squares, or rectangles, are tailored to meet specific application requirements in industries such as electronics, automotive, aerospace, and medical devices. This guide delves into the detailed process of customizing special-shaped magnets, covering material selection, design considerations, manufacturing techniques, quality control, and application-specific customization.

1. Material Selection for Special-Shaped Magnets
The choice of material is crucial in determining the performance characteristics of a special-shaped magnet. The most commonly used materials for custom magnets include:


Neodymium Iron Boron (NdFeB): Known for its high magnetic energy product and coercivity, NdFeB magnets offer the strongest magnetic properties among permanent magnets. They are ideal for applications requiring compact size and high magnetic strength, such as in motors, sensors, and magnetic separators. However, NdFeB magnets are susceptible to corrosion and require protective coatings.
Samarium Cobalt (SmCo): SmCo magnets exhibit excellent temperature stability and corrosion resistance, making them suitable for high-temperature applications (up to 350°C) and harsh environments. They are commonly used in aerospace, military, and medical devices. Although their magnetic strength is slightly lower than NdFeB, SmCo magnets offer superior performance in extreme conditions.
Alnico: Composed of aluminum, nickel, cobalt, and iron, Alnico magnets are known for their high temperature stability (up to 550°C) and resistance to demagnetization. They are often used in applications requiring precise magnetic fields, such as in loudspeakers, sensors, and holding devices. However, Alnico magnets are relatively brittle and require careful handling during manufacturing.
Ferrite (Ceramic): Ferrite magnets are cost-effective and offer good corrosion resistance. They are widely used in low-cost applications where high magnetic strength is not critical, such as in refrigerator magnets, small motors, and magnetic toys. Ferrite magnets are brittle and difficult to machine into complex shapes, limiting their use in high-precision applications.

When selecting a material for a special-shaped magnet, factors such as magnetic strength, temperature stability, corrosion resistance, cost, and manufacturability must be considered. The choice of material will significantly impact the magnet's performance and suitability for the intended application.

2. Design Considerations for Special-Shaped Magnets
Designing special-shaped magnets requires careful consideration of several factors to ensure optimal performance and manufacturability. Key design considerations include:

2.1 Magnetic Field Distribution
The shape of a magnet influences its magnetic field distribution. For applications requiring a specific magnetic field pattern, such as in magnetic bearings or magnetic couplings, the magnet's shape must be designed to produce the desired field distribution. Computational modeling tools, such as finite element analysis (FEA), can be used to simulate and optimize the magnetic field distribution before manufacturing.

2.2 Mechanical Strength and Durability
Special-shaped magnets may be subjected to mechanical stresses during operation, such as vibration, impact, or thermal cycling. The design must ensure that the magnet can withstand these stresses without cracking, chipping, or losing its magnetic properties. Factors such as the magnet's aspect ratio, corner radii, and surface finish can significantly affect its mechanical strength and durability.

2.3 Tolerances and Dimensional Accuracy
Special-shaped magnets often require tight tolerances and high dimensional accuracy to fit precisely into their intended assemblies. The manufacturing process must be capable of achieving the specified tolerances, and the design must account for any potential variations in material properties or process parameters. Close collaboration between the designer and manufacturer is essential to ensure that the magnet meets the required specifications.

2.4 Magnetization Direction
The magnetization direction of a magnet can significantly impact its performance. Special-shaped magnets can be magnetized in various directions, such as axially, radially, or multipolar. The choice of magnetization direction depends on the application requirements and the magnet's shape. For example, a radial magnetization direction may be preferred for a ring-shaped magnet used in a motor, while a multipolar magnetization pattern may be required for a magnet used in a magnetic encoder.

2.5 Assembly and Integration
The design of a special-shaped magnet must consider how it will be assembled and integrated into the final product. Factors such as the magnet's mounting method, ease of handling, and compatibility with other components must be taken into account. The design may also need to incorporate features such as holes, slots, or tabs to facilitate assembly and alignment.

3. Manufacturing Techniques for Special-Shaped Magnets
The manufacturing of special-shaped magnets involves several steps, including material preparation, shaping, sintering (for sintered magnets), machining, surface treatment, and magnetization. The specific manufacturing process depends on the magnet material and the desired shape.

3.1 Sintering Process for Sintered Magnets
Sintered magnets, such as NdFeB and SmCo, are manufactured through a powder metallurgy process that involves the following steps:


Material Preparation: The raw materials are mixed in precise proportions and milled into a fine powder. The powder is then mixed with a binder to form a slurry, which is dried and granulated into small particles.
Pressing: The granulated powder is pressed into the desired shape using a hydraulic press or isostatic press. The pressing process compacts the powder particles, increasing the magnet's density and magnetic properties.
Sintering: The pressed magnets are sintered at high temperatures (typically between 1000°C and 1200°C) in a vacuum or inert gas atmosphere. Sintering fuses the powder particles together, forming a dense, solid magnet with improved mechanical strength and magnetic properties.
Machining: After sintering, the magnets may undergo machining operations such as grinding, cutting, or drilling to achieve the final dimensions and surface finish. Machining must be performed carefully to avoid damaging the magnet's magnetic properties or causing cracks.

3.2 Bonding Process for Bonded Magnets
Bonded magnets, such as bonded NdFeB or ferrite magnets, are manufactured by mixing magnetic powder with a polymer binder (such as epoxy or nylon) and then molding the mixture into the desired shape using injection molding or compression molding. The bonding process offers several advantages, including the ability to produce complex shapes, tight tolerances, and isotropic magnetic properties. However, bonded magnets typically have lower magnetic strength compared to sintered magnets.

3.3 Machining Techniques for Special-Shaped Magnets
Machining is a critical step in the manufacturing of special-shaped magnets, especially for sintered magnets that require precise dimensions and surface finish. Common machining techniques include:


Grinding: Grinding is used to achieve tight tolerances and a smooth surface finish on the magnet's faces and edges. Diamond grinding wheels are often used due to the hardness of magnetic materials.
Cutting: Cutting operations, such as wire electrical discharge machining (EDM) or laser cutting, are used to separate individual magnets from a larger block or to create complex shapes. These non-contact cutting methods minimize the risk of mechanical damage to the magnet.
Drilling: Drilling is used to create holes or slots in the magnet for mounting or assembly purposes. Special drill bits and cooling techniques must be used to prevent overheating and damage to the magnet's magnetic properties.

3.4 Surface Treatment and Coating
Surface treatment and coating are essential for protecting special-shaped magnets from corrosion and wear, especially for NdFeB magnets that are susceptible to oxidation. Common surface treatment methods include:


Electroplating: Electroplating involves depositing a thin layer of metal (such as nickel, zinc, or gold) onto the magnet's surface to provide corrosion resistance and improve appearance. Multiple layers of different metals may be applied to achieve specific properties, such as enhanced adhesion or solderability.
Chemical Conversion Coating: Chemical conversion coatings, such as phosphating or chromating, are used to form a protective layer on the magnet's surface through a chemical reaction with the base material. These coatings offer good corrosion resistance and can serve as a base for subsequent paint or adhesive applications.
Epoxy Coating: Epoxy coatings provide excellent corrosion resistance and can be applied in various thicknesses to meet specific requirements. They are often used for magnets that will be exposed to harsh environments or require a non-conductive surface.

3.5 Magnetization
The final step in the manufacturing of special-shaped magnets is magnetization, where the magnet is placed in a strong magnetic field to align its magnetic domains in the desired direction. Magnetization can be performed using various methods, such as:


Axial Magnetization: The magnet is placed along the axis of a solenoid coil, and a pulsed DC current is applied to generate a strong magnetic field that magnetizes the magnet in the axial direction.
Radial Magnetization: For ring-shaped magnets, radial magnetization can be achieved by placing the magnet inside a special fixture that generates a radial magnetic field during the magnetization process.
Multipolar Magnetization: Multipolar magnetization involves creating multiple magnetic poles on the magnet's surface, which can be achieved using specialized magnetization fixtures or coils that generate complex magnetic field patterns.

4. Quality Control and Testing for Special-Shaped Magnets
Quality control is essential throughout the manufacturing process to ensure that special-shaped magnets meet the required specifications and performance criteria. Key quality control measures include:


Dimensional Inspection: The magnet's dimensions are measured using precision measuring instruments such as micrometers, calipers, or coordinate measuring machines (CMMs) to ensure they meet the specified tolerances.
Surface Finish Inspection: The magnet's surface finish is inspected visually or using surface roughness testers to ensure it meets the required standards.
Magnetic Property Testing: The magnet's magnetic properties, such as magnetic flux density, coercivity, and remanence, are measured using magnetometers or fluxmeters to ensure they meet the specified values.
Visual Inspection: The magnet is visually inspected for defects such as cracks, chips, or coating imperfections that could affect its performance or appearance.
Salt Spray Testing: For magnets that require corrosion resistance, salt spray testing is performed to assess their ability to withstand exposure to a corrosive environment.

5. Application-Specific Customization of Special-Shaped Magnets
Special-shaped magnets are customized to meet the specific requirements of various applications. Some common application-specific customization examples include:

5.1 Motors and Generators
In motors and generators, special-shaped magnets are used to create precise magnetic fields that interact with the armature or stator to produce rotational motion or electrical current. The shape and magnetization pattern of the magnets are optimized to maximize efficiency, reduce cogging torque, and improve overall performance. For example, segmented arc magnets are often used in brushless DC motors to create a smooth, sinusoidal magnetic field distribution.

5.2 Magnetic Separators
Magnetic separators use special-shaped magnets to separate magnetic materials from non-magnetic materials in various industries, such as mining, recycling, and food processing. The magnets are designed to generate strong magnetic fields that attract and hold magnetic particles, allowing non-magnetic materials to pass through. The shape and strength of the magnets are customized based on the specific separation requirements and the properties of the materials being processed.

5.3 Sensors and Actuators
Special-shaped magnets are used in sensors and actuators to detect or produce mechanical motion in response to a magnetic field. For example, Hall effect sensors use a magnet to generate a magnetic field that interacts with a Hall effect element to produce an electrical signal proportional to the magnetic field strength. The shape and magnetization pattern of the magnet are optimized to ensure accurate and reliable sensor operation. Similarly, in actuators, special-shaped magnets are used to convert electrical energy into mechanical motion, such as in linear actuators or voice coil motors.

5.4 Medical Devices
In medical devices, special-shaped magnets are used for various applications, such as magnetic resonance imaging (MRI), magnetic drug delivery, and magnetic levitation. The magnets must meet strict safety and performance requirements, including biocompatibility, corrosion resistance, and precise magnetic field control. For example, in MRI machines, special-shaped superconducting magnets are used to generate strong, uniform magnetic fields that align the protons in the patient's body, allowing for detailed imaging.

5.5 Aerospace and Defense
In aerospace and defense applications, special-shaped magnets are used in various systems, such as guidance and navigation, missile defense, and satellite communication. The magnets must withstand extreme environmental conditions, including high temperatures, vibration, and radiation. The shape and material of the magnets are customized to meet the specific requirements of each application, ensuring reliable performance in critical missions.

Alnico magnets, composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), and iron (Fe), represent one of the earliest developed permanent magnetic materials. Their unique combination of high remanence, low temperature coefficient, and excellent high-temperature stability has made them indispensable in applications such as instrumentation, sensors, and aerospace. This article delves into the core roles of Al, Ni, and Co in Alnico magnets and explores whether each element is truly indispensable.

2. The Core Role of Aluminum (Al)
2.1 Enhancing Mechanical Properties and Castability
Aluminum plays a crucial role in improving the mechanical properties and castability of Alnico magnets. As a non-ferromagnetic element, Al does not directly contribute to the magnetic properties but significantly influences the microstructure and processing characteristics of the alloy.


Improving Castability: Aluminum lowers the melting point of the alloy, facilitating the casting process. This allows for the production of complex-shaped magnets with high dimensional accuracy, which is essential for applications requiring precise magnetic field distributions.
Enhancing Mechanical Strength: Aluminum forms a solid solution with iron and other elements, contributing to the overall mechanical strength of the magnet. This is particularly important for magnets used in vibrating or rotating environments, where mechanical durability is critical.

2.2 Influencing Microstructure and Magnetic Anisotropy
Aluminum also affects the microstructure of Alnico magnets, particularly through its interaction with other elements during the heat treatment process.


Promoting Columnar Crystal Growth: In directionally solidified Alnico magnets, aluminum helps promote the growth of columnar crystals aligned along the preferred orientation. This microstructural feature enhances magnetic anisotropy, leading to improved coercivity and remanence.
Stabilizing the γ-Phase: Aluminum stabilizes the γ-phase (a face-centered cubic phase) in the alloy, which serves as the matrix for the precipitation of the magnetically hard α₁-phase (a body-centered cubic phase). The uniform distribution of α₁-phase precipitates within the γ-matrix is crucial for achieving high coercivity.

2.3 Indispensability of Aluminum
While aluminum does not directly contribute to the magnetic properties of Alnico magnets, its role in improving castability, mechanical strength, and microstructure is indispensable. Without aluminum, the production of complex-shaped magnets with high dimensional accuracy and excellent mechanical properties would be challenging. Moreover, the absence of aluminum would disrupt the microstructural features necessary for achieving high coercivity and remanence.

3. The Core Role of Nickel (Ni)
3.1 Enhancing Magnetic Properties
Nickel is a key element in Alnico magnets, significantly contributing to their magnetic properties.


Increasing Saturation Magnetization: Nickel increases the saturation magnetization of the alloy, which is the maximum magnetization that the material can achieve under an external magnetic field. This is crucial for achieving high remanence, a key characteristic of permanent magnets.
Improving Coercivity: Nickel, in combination with cobalt and other elements, helps form the magnetically hard α₁-phase precipitates. The size, shape, and distribution of these precipitates directly influence the coercivity of the magnet. Nickel also participates in the formation of spinodal decomposition structures during heat treatment, further enhancing coercivity.

3.2 Influencing Temperature Stability
Nickel plays a vital role in improving the temperature stability of Alnico magnets.


Low Temperature Coefficient: Alnico magnets exhibit a low temperature coefficient of remanence, meaning their magnetic properties change minimally with temperature variations. Nickel, along with cobalt, contributes to this low temperature coefficient, making Alnico magnets suitable for high-temperature applications.
High Curie Temperature: The Curie temperature of Alnico magnets, which is the temperature at which the material loses its permanent magnetic properties, is significantly influenced by nickel. Alnico magnets have a Curie temperature as high as 850°C, allowing them to maintain stable magnetic properties even at elevated temperatures.

3.3 Indispensability of Nickel
Nickel is indispensable in Alnico magnets due to its significant contributions to magnetic properties and temperature stability. Without nickel, achieving high remanence, coercivity, and low temperature coefficients would be challenging. Moreover, the high Curie temperature of Alnico magnets would be compromised without nickel, limiting their applications in high-temperature environments.

4. The Core Role of Cobalt (Co)
4.1 Enhancing Magnetic Anisotropy and Coercivity
Cobalt is another critical element in Alnico magnets, playing a pivotal role in enhancing magnetic anisotropy and coercivity.


Promoting Magnetic Anisotropy: Cobalt, in combination with nickel and aluminum, promotes the formation of magnetically anisotropic structures during heat treatment. This anisotropy is essential for achieving high coercivity, as it resists demagnetization by external magnetic fields.
Refining α₁-Phase Precipitates: Cobalt helps refine the size and shape of α₁-phase precipitates, which are responsible for the high coercivity of Alnico magnets. Smaller, more uniformly distributed precipitates lead to higher coercivity by increasing the energy barrier for domain wall movement.

4.2 Improving Corrosion Resistance
Cobalt also contributes to the corrosion resistance of Alnico magnets.


Forming Protective Oxide Layers: Cobalt, like nickel, can form protective oxide layers on the surface of the magnet, preventing corrosion in harsh environments. This is particularly important for magnets used in outdoor or chemical applications where exposure to moisture and corrosive substances is common.

4.3 Indispensability of Cobalt
Cobalt is indispensable in Alnico magnets due to its significant contributions to magnetic anisotropy, coercivity, and corrosion resistance. Without cobalt, achieving high coercivity and excellent corrosion resistance would be difficult. Moreover, the absence of cobalt would compromise the overall magnetic performance and durability of Alnico magnets.

5. The Interdependence of Al, Ni, and Co in Alnico Magnets
5.1 Synergistic Effects on Magnetic Properties
The elements Al, Ni, and Co in Alnico magnets work synergistically to achieve their unique magnetic properties.


Aluminum's Role in Microstructure Formation: Aluminum provides the necessary microstructural features, such as columnar crystal growth and γ-phase stabilization, which serve as the foundation for the precipitation of magnetically hard α₁-phase.
Nickel and Cobalt's Role in Precipitate Formation: Nickel and cobalt, in combination, promote the formation and refinement of α₁-phase precipitates. The size, shape, and distribution of these precipitates directly influence the coercivity and remanence of the magnet.
Temperature Stability: The combined effects of nickel and cobalt contribute to the low temperature coefficient and high Curie temperature of Alnico magnets, making them suitable for high-temperature applications.

5.2 The Impossibility of Substitution
Each element in Alnico magnets plays a unique and irreplaceable role. Attempting to substitute one element with another would disrupt the delicate balance of microstructure and magnetic properties, leading to degraded performance.


Substituting Aluminum: Substituting aluminum with other non-ferromagnetic elements would compromise the castability, mechanical strength, and microstructure of the magnet, making it difficult to achieve high coercivity and remanence.
Substituting Nickel or Cobalt: Substituting nickel or cobalt with other ferromagnetic elements would alter the precipitation behavior of α₁-phase, leading to changes in coercivity and remanence. Moreover, the temperature stability of the magnet would be compromised, limiting its applications in high-temperature environments.

6. Conclusion
Aluminum (Al), nickel (Ni), and cobalt (Co) are indispensable elements in Alnico magnets, each playing a unique and critical role in achieving their exceptional magnetic properties. Aluminum enhances castability, mechanical strength, and microstructure; nickel increases saturation magnetization, improves coercivity, and contributes to temperature stability; cobalt promotes magnetic anisotropy, refines precipitates, and improves corrosion resistance. The synergistic effects of these elements result in Alnico magnets with high remanence, low temperature coefficients, and excellent high-temperature stability, making them indispensable in applications such as instrumentation, sensors, and aerospace. Attempting to substitute any of these elements would disrupt the delicate balance of microstructure and magnetic properties, leading to degraded performance. Therefore, Al, Ni, and Co are truly indispensable in Alnico magnets.

This paper delves into the core relationship between magnetic field direction and magnet charging direction in the magnetic field orientation process, taking sintered NdFeB and AlNiCo magnets as examples. It analyzes how different orientation processes and charging directions affect the magnetic properties of magnets. Furthermore, it explores the performance loss rate of non-oriented AlNiCo magnets, considering factors such as material composition, production process, and external environmental conditions. The research aims to provide a comprehensive understanding of the magnetic field orientation process and the performance characteristics of AlNiCo magnets, offering valuable references for related fields such as magnet production, motor design, and sensor manufacturing.

Keywords
Magnetic field orientation process; Magnet charging direction; Sintered NdFeB magnets; AlNiCo magnets; Performance loss rate

1. Introduction
Magnetic materials play a crucial role in modern industry and technology, widely used in motors, sensors, speakers, and other fields. Among them, permanent magnets are an important category, and their magnetic properties directly affect the performance of related equipment. The magnetic field orientation process is a key step in the production of permanent magnets, which determines the orientation of the easy magnetization axis of magnetic powder particles and thus has a significant impact on the magnetic properties of the final magnet products. AlNiCo magnets, as one of the early developed permanent magnet materials, have unique characteristics in terms of high-temperature stability and corrosion resistance. Understanding the relationship between the magnetic field direction in the orientation process and the magnet charging direction, as well as the performance loss rate of non-oriented AlNiCo magnets, is of great significance for optimizing magnet production processes and improving equipment performance.

2. Magnetic Field Orientation Process and Its Importance
2.1 Definition and Principle of Magnetic Field Orientation Process
The magnetic field orientation process is a method that utilizes the interaction between magnetic powder and an external magnetic field to arrange the easy magnetization directions of powder particles so that they are consistent with the final charging direction of the magnet. In the production of permanent magnets, especially anisotropic magnets, this process is essential. For example, in the production of sintered NdFeB magnets, the Nd₂Fe₁₄B crystal grains are uniaxially anisotropic, and each grain has only one easy magnetization axis—the c-axis of the main phase crystal cell. Through the magnetic field orientation process, these c-axes can be arranged in the same direction, thereby improving the magnetic properties of the magnet.

2.2 Significance of Magnetic Field Orientation Process for Magnet Performance
The magnetic field orientation process has a direct impact on the key magnetic properties of magnets, such as remanence (Br) and maximum magnetic energy product ((BH)max). When the easy magnetization directions of magnetic powder particles are well aligned, the magnet can achieve higher remanence and maximum magnetic energy product. Taking sintered NdFeB magnets as an example, a high orientation degree (≥95%) can ensure that the rectangularity of the magnet is ≥0.9. A magnet with high rectangularity can effectively reduce the generation of stray magnetic fields in practical applications, thereby improving the use efficiency and stability of the magnet.

3. Relationship Between Magnetic Field Direction and Magnet Charging Direction
3.1 Case Study of Sintered NdFeB Magnets
3.1.1 Orientation Process and Charging Direction Determination
In the production of sintered NdFeB magnets, the magnetic field orientation process is usually carried out during the molding stage. A strong magnetic field (1.5 - 2.5T) is applied to make the easy magnetization axes of the Nd₂Fe₁₄B crystal grains align along the target direction. This target direction is the future charging direction of the magnet. For example, in the production of square sintered NdFeB magnets, the magnetic field direction during orientation is set to be consistent with the expected charging direction, which is usually along the thickness or length direction of the magnet.

3.1.2 Influence of Charging Direction on Magnetic Properties
The charging direction has a crucial impact on the magnetic properties of sintered NdFeB magnets. When the charging direction is consistent with the easy magnetization direction obtained during the orientation process, the magnet can achieve higher remanence and coercivity. For instance, in a新能源汽车 (new energy vehicle) drive motor, the sintered NdFeB magnets are used as key components. If the charging direction is inaccurate, the motor may not operate efficiently or even malfunction. Accurate charging direction ensures that the magnet can provide a stable and strong magnetic field, thereby improving the torque output and operating efficiency of the motor.

3.1.3 Different Charging Directions for Different Shapes of Magnets

Ring - shaped Magnets: Ring - shaped sintered NdFeB magnets can be charged axially or radially. Axial charging results in planar magnetic poles, which are suitable for coaxial magnetic field coupling in some coaxial rotating equipment. This charging method can achieve stable magnetic field coupling and ensure the synchronous operation of the equipment. Radial charging produces inner and outer ring magnetic poles, which are suitable for radial magnetic circuit closure design and can effectively improve the magnetic flux utilization rate of the magnetic circuit.
Arc - shaped Magnets: Arc - shaped (瓦形) sintered NdFeB magnets commonly have four charging directions. In motor applications, the charging direction needs to be precisely matched with the arc of the motor stator/rotor to ensure the uniformity of the air - gap magnetic field. This can improve the motor efficiency, reduce energy loss, and extend the motor service life.

3.2 Case Study of AlNiCo Magnets
3.2.1 Production Process and Orientation of AlNiCo Magnets
AlNiCo magnets are mainly produced by casting and sintering processes. The casting process can produce complex - shaped magnets with good high - temperature resistance, while the sintering process has higher dimensional accuracy but slightly lower magnetic properties. During the production of AlNiCo magnets, although the orientation process is not as critical as that of sintered NdFeB magnets, proper magnetic field application during molding can still improve the magnetic properties to a certain extent. For example, in the casting process, a weak magnetic field can be applied to align the magnetic domains of the alloy during solidification, thereby improving the remanence of the magnet.

3.2.2 Relationship Between Charging Direction and Magnetic Properties of AlNiCo Magnets
AlNiCo magnets have relatively stable magnetic properties, and their charging direction also affects their performance in specific applications. In some sensor applications, the charging direction of AlNiCo magnets needs to be precisely controlled to ensure the accuracy of the sensor. For example, in a position sensor, the magnetic field generated by the AlNiCo magnet interacts with the sensing element. If the charging direction is not accurate, it will lead to inaccurate position detection.

4. Performance Loss Rate of Non - Oriented AlNiCo Magnets
4.1 Factors Affecting the Performance Loss Rate
4.1.1 Material Composition
The composition of AlNiCo magnets has a significant impact on their performance loss rate. AlNiCo magnets are composed of aluminum (Al), nickel (Ni), cobalt (Co), iron (Fe), and other trace metal elements. Different proportions of these elements will affect the magnetic properties and stability of the magnets. For example, increasing the cobalt content can improve the coercivity of the magnet, but may also increase the cost. At the same time, improper composition may lead to a higher performance loss rate of the magnet under certain environmental conditions.

4.1.2 Production Process

Casting Process: The casting process of AlNiCo magnets involves melting the alloy and then pouring it into a mold for solidification. During this process, factors such as cooling rate and solidification structure will affect the magnetic properties of the magnet. If the cooling rate is too fast, it may lead to the formation of internal stresses in the magnet, which will increase the performance loss rate over time.
Sintering Process: In the sintering process, the powder is pressed and then sintered at high temperatures. The sintering temperature, time, and pressure all have an impact on the density and magnetic properties of the magnet. Improper sintering parameters may result in a low - density magnet with poor magnetic properties and a high performance loss rate.

4.1.3 External Environmental Conditions

Temperature: AlNiCo magnets have good high - temperature stability, but extreme temperatures can still affect their magnetic properties. At high temperatures, the thermal agitation of magnetic domains will increase, leading to a decrease in remanence and coercivity. For example, when an AlNiCo magnet is used in a high - temperature environment above 500°C for a long time, its performance loss rate will be significantly higher than that at room temperature.
External Magnetic Field: Exposure to a strong reverse magnetic field can cause demagnetization of AlNiCo magnets, resulting in a performance loss. In some applications where there are strong alternating magnetic fields, the performance loss rate of AlNiCo magnets may be relatively high.

4.2 Measurement Methods of Performance Loss Rate
4.2.1 Magnetic Property Testing
The performance loss rate of AlNiCo magnets can be measured by testing their magnetic properties before and after a certain period of use or under specific environmental conditions. Common magnetic property testing methods include using a vibrating sample magnetometer (VSM) to measure the remanence, coercivity, and maximum magnetic energy product of the magnet. By comparing the changes in these parameters, the performance loss rate can be calculated.

4.2.2 Long - term Stability Testing
Long - term stability testing involves placing the AlNiCo magnet in a specific environment (such as a high - temperature oven or a magnetic field generator) for a long time and regularly testing its magnetic properties. This method can more accurately reflect the performance loss rate of the magnet under actual use conditions. For example, in a study on the high - temperature stability of AlNiCo magnets, the magnets were placed in a 300°C oven for 1000 hours, and their magnetic properties were tested every 100 hours to calculate the performance loss rate.

4.3 Research Progress on Reducing the Performance Loss Rate of Non - Oriented AlNiCo Magnets
4.4.1 Material Optimization
Researchers are constantly exploring new material compositions to improve the performance and stability of AlNiCo magnets. For example, by adding rare - earth elements or other trace elements to the AlNiCo alloy, the coercivity and temperature stability of the magnet can be improved, thereby reducing the performance loss rate.

4.4.2 Process Improvement
Improving the production process is also an important way to reduce the performance loss rate. In the casting process, optimizing the cooling system can reduce the internal stresses of the magnet. In the sintering process, precise control of sintering parameters can improve the density and magnetic properties of the magnet.

4.4.3 Surface Treatment
Surface treatment methods such as coating can protect the AlNiCo magnet from the external environment, reducing the impact of factors such as corrosion and oxidation on its magnetic properties. For example, applying a nickel - plated layer on the surface of the AlNiCo magnet can improve its corrosion resistance and reduce the performance loss rate in humid environments.

5. Conclusion
The magnetic field orientation process is crucial for determining the magnetic properties of permanent magnets, and the relationship between the magnetic field direction and the magnet charging direction directly affects the performance of the magnets in practical applications. For sintered NdFeB magnets, accurate control of the charging direction is essential for achieving high - performance motors and other equipment. Although AlNiCo magnets have relatively stable magnetic properties, non - oriented AlNiCo magnets still have a certain performance loss rate under the influence of factors such as material composition, production process, and external environmental conditions. By optimizing the material composition, improving the production process, and adopting surface treatment methods, the performance loss rate of non - oriented AlNiCo magnets can be effectively reduced, thereby expanding their application range in high - temperature and other special environments. Future research can further explore new materials and processes to improve the overall performance of magnetic materials and meet the growing demands of modern industry and technology.
