Ferrite Magnet Grades
Shengzhou Senz Magnet Co.,Ltd makes ferrite magnet grades be of unparalleled properties through various methods. The well-selected raw materials from leading suppliers guarantee the stable performance of the product. Advanced equipment ensures the precise production of the product, showing the excellent craftsmanship. Besides that, it is in conformity with the international production standard and has passed quality certification.
At Senz Magnet, we singularly focus on customer satisfaction. We have implemented methods for customers to give feedback. The overall customer satisfaction of our products remains relatively stable compared to previous years and it helps maintain a good cooperative relationship. The products under the brand have gained reliable and positive reviews, which has made our customers' business become easier and they appreciate us.

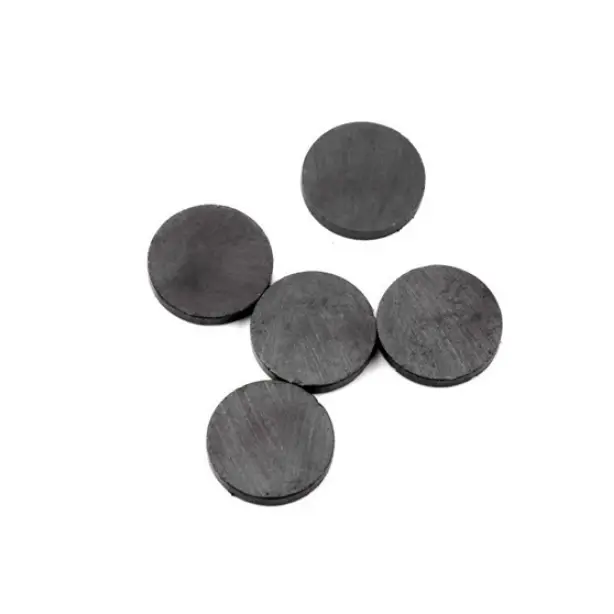

Ferrite magnet grades combine iron oxide with metallic elements to deliver consistent magnetic strength and excellent resistance to demagnetization. With different focuses on cost efficiency and reliability, these ceramic magnets are ideal for motors, sensors, and generators. Their durability ensures stable performance in demanding industrial and electronic applications.
How to choose ferrite magnet grades?
Ferrite magnet grades are ideal for applications requiring reliable magnetic performance at an affordable cost. Known for their excellent corrosion resistance and thermal stability, these magnets are widely used in electric motors, speakers, sensors, and automotive systems, ensuring efficient and durable operation.
- 1. Choose ferrite magnets for their cost-effectiveness and reliable magnetic properties in diverse environments.
- 2. Ideal for applications like electric motors, audio equipment, sensors, and industrial machinery.
- 3. Select grades based on operating temperature, corrosion resistance, and required magnetic strength.
- 4. Durable and resistant to demagnetization, making them suitable for automotive and outdoor systems.
1. Composition Differences
Base Alloy System: Both N35 and N52 magnets are sintered neodymium-iron-boron (NdFeB) magnets with the same fundamental composition: approximately 32% neodymium (Nd), 64% iron (Fe), and 1.1–1.2% boron (B). However, higher-grade magnets (e.g., N52) often incorporate additional heavy rare-earth elements (HREEs) like dysprosium (Dy) or terbium (Tb) to enhance coercivity and thermal stability.
Example: N52 magnets may contain 1–3% Dy to counteract high-temperature demagnetization, whereas N35 magnets typically use minimal or no Dy due to their lower coercivity requirements.
Impurity Control: Higher-grade magnets demand stricter control over impurities (e.g., oxygen, carbon, nitrogen) that can degrade magnetic performance. N52 magnets are manufactured using ultra-high-purity raw materials and advanced purification techniques to minimize non-magnetic phases.
2. Microstructural Differences
Grain Size and Orientation: The magnetic properties of NdFeB magnets depend on the alignment and size of their Nd₂Fe₁₄B crystalline grains, which exhibit strong uniaxial magnetocrystalline anisotropy.
Grain Refinement: N52 magnets typically feature smaller, more uniformly sized grains (1–3 μm) compared to N35 (3–5 μm). Finer grains reduce domain wall pinning and enhance coercivity, enabling higher energy products.
Crystallographic Texture: Higher-grade magnets undergo optimized magnetic field alignment during pressing, resulting in a stronger preferred orientation of grains along the c-axis. This improves remanence (Br) and energy product (BHmax).
Phase Composition: The microstructure of NdFeB magnets consists of:
Nd₂Fe₁₄B Matrix: The primary magnetic phase responsible for high magnetization.
Nd-rich Grain Boundary Phase: Acts as a lubricant during sintering and provides electrical insulation between grains. N52 magnets often have a thinner, more continuous Nd-rich phase, which reduces intergranular demagnetization and enhances coercivity.
Secondary Phases: Unwanted phases like α-Fe or Nd oxides can form if impurities are present. N52 magnets minimize these phases through tighter process control.
3. Processing Parameter Variations
Sintering Temperature and Time: Higher-grade magnets require precise sintering conditions (e.g., 1040–1080°C for N52 vs. 1020–1060°C for N35) to achieve optimal density and grain structure. Over-sintering can coarsen grains and degrade coercivity, while under-sintering leads to porosity and lower remanence.
Heat Treatment: Post-sintering annealing (e.g., at 500–600°C) is critical for relieving stresses and redistributing the Nd-rich phase. N52 magnets often undergo multi-stage annealing to refine the microstructure further.
Magnetic Alignment: The strength of the applied magnetic field during pressing directly impacts grain orientation. N52 magnets are pressed under higher magnetic fields (e.g., 5–8 T) compared to N35 (3–5 T) to maximize texture.
4. Performance Implications
Magnetic Properties:
N35: Br ≈ 1.18 T, Hc ≈ 868 kA/m, BHmax ≈ 35 MGOe. Suitable for cost-sensitive applications with moderate temperature requirements (e.g., automotive sensors, loudspeakers).
N52: Br ≈ 1.47 T, Hc ≈ 955 kA/m, BHmax ≈ 52 MGOe. Used in high-performance applications like electric vehicle motors, wind turbines, and MRI machines.
Thermal Stability: N52 magnets have a lower maximum operating temperature (60°C vs. 80°C for N35) due to their higher Dy content, which can cause thermal demagnetization if exceeded.
Cost: N52 magnets are 20–50% more expensive than N35 due to the use of HREEs, stricter process control, and lower yields during manufacturing.
5. Advanced Microstructural Techniques
Grain Boundary Diffusion (GBD): A modern technique to enhance coercivity in high-grade magnets by diffusing Dy or Tb along grain boundaries, reducing the need for bulk HREE additions. This allows N52-grade performance with lower Dy content.
Hot Deformation Processing: Produces nanocrystalline magnets with grain sizes <100 nm, enabling theoretical BHmax values >60 MGOe. However, this method is still under development for mass production.
Summary of Key Differences
Parameter
N35 Magnets
N52 Magnets
Dy Content
Minimal or none
1–3%
Grain Size
3–5 μm
1–3 μm
Nd-rich Phase
Thicker, discontinuous
Thinner, continuous
Sintering Temp.
1020–1060°C
1040–1080°C
Max BHmax
35 MGOe
52 MGOe
Cost
Lower
Higher
In conclusion, the differences between N35 and N52 magnets are rooted in their composition (e.g., Dy content), microstructure (grain size, phase distribution), and processing parameters (sintering, alignment). These factors collectively determine their magnetic performance, thermal stability, and cost, making each grade suitable for distinct applications.
Curie Temperature of Ferrite Magnets and Their Temperature Stability
Ferrite magnets, also known as ceramic magnets, are widely used in industrial and consumer applications due to their cost-effectiveness, corrosion resistance, and ability to operate at elevated temperatures. A critical parameter defining their thermal behavior is the Curie temperature (Tc), which marks the transition from ferromagnetic to paramagnetic behavior. This article explores the Curie temperature of ferrite magnets, their temperature stability, and how their magnetic properties evolve under varying thermal conditions.
1. Curie Temperature of Ferrite Magnets
The Curie temperature is the threshold above which a ferromagnetic material loses its permanent magnetization and transitions into a paramagnetic state, where magnetic moments align randomly due to thermal agitation. For ferrite magnets, the Curie temperature typically ranges between 450°C and 460°C, depending on their specific composition (e.g., strontium or barium ferrite). This high Curie temperature is a key advantage, enabling ferrite magnets to maintain their magnetic properties in environments where other magnets, such as neodymium (NdFeB) or samarium-cobalt (SmCo), might demagnetize.
2. Temperature Stability of Ferrite Magnets
Ferrite magnets exhibit distinct temperature-dependent behaviors that influence their stability and performance:
Coercivity (Hc): Ferrite magnets have a positive temperature coefficient of coercivity, meaning their resistance to demagnetization increases with temperature. Specifically, the coercivity rises by approximately +0.27% per degree Celsius relative to ambient conditions. This unique property makes ferrite magnets highly resistant to thermal demagnetization, even at elevated temperatures.
Remanence (Br): In contrast, the remanent magnetization (Br) decreases with temperature, following a negative temperature coefficient of approximately -0.2% per degree Celsius. This means that while the magnet's ability to resist demagnetization improves with heat, its overall magnetic output diminishes.
Reversibility: The changes in coercivity and remanence due to temperature fluctuations are reversible within the magnet's operational range. Once the temperature returns to ambient levels, the magnetic properties recover to their original values, provided the magnet has not been exposed to temperatures exceeding its Curie temperature or experienced irreversible damage (e.g., mechanical stress).
3. Magnetic Property Changes at Different Temperatures
The magnetic performance of ferrite magnets varies significantly across different temperature regimes:
A. High-Temperature Performance
Operational Range: Ferrite magnets can operate continuously at temperatures up to 250°C, with some grades capable of withstanding up to 300°C for short periods. This makes them ideal for high-temperature applications such as electric motors, generators, and automotive sensors.
Demagnetization Resistance: Due to their increasing coercivity with temperature, ferrite magnets are less likely to demagnetize under thermal stress compared to other magnet types. For example, while neodymium magnets may lose magnetization above 80°C (or 150°C for high-temperature grades like N45SH), ferrite magnets remain stable at much higher temperatures.
Limitations: At temperatures approaching the Curie point (450–460°C), the magnetic properties degrade rapidly, and the magnet transitions to a paramagnetic state. Prolonged exposure to temperatures near Tc can cause irreversible damage, requiring re-magnetization at higher voltages, which may not fully restore the original magnetic strength.
B. Low-Temperature Performance
Coercivity Decrease: At sub-zero temperatures, the coercivity of ferrite magnets decreases, making them more susceptible to demagnetization from external fields. This effect becomes noticeable below -10°C to -20°C, depending on the magnet's grade and shape.
Mechanical Stress: Low temperatures can also reduce the tensile strength of ferrite magnets, increasing the risk of mechanical failure under stress. However, with careful design, ferrite magnets can function reliably at temperatures as low as -40°C.
Pull Force Reduction: The magnetic pull force decreases at low temperatures due to the combined effects of reduced coercivity and remanence. The extent of this reduction depends on the magnet's geometry and the specific application.
C. Practical Implications for Design
Thermal Management: In high-temperature applications, ferrite magnets often require minimal thermal management compared to neodymium magnets, which may need liquid cooling to prevent demagnetization. Air cooling is typically sufficient for ferrite-based systems.
Magnetic Circuit Design: The temperature-dependent behavior of ferrite magnets must be considered during magnetic circuit design. For instance, in motors operating at elevated temperatures, the increasing coercivity can help maintain performance, while in cryogenic environments, additional measures may be needed to prevent demagnetization.
Material Selection: The choice between ferrite and rare-earth magnets depends on the application's temperature requirements. Ferrite magnets are preferred for high-temperature environments, while neodymium magnets offer superior magnetic output at lower temperatures.
4. Comparative Analysis with Other Magnet Types
To contextualize the temperature behavior of ferrite magnets, it is instructive to compare them with other common magnet materials:
Property
Ferrite Magnets
Neodymium (NdFeB) Magnets
Samarium-Cobalt (SmCo) Magnets
Curie Temperature (Tc)
450–460°C
310–460°C (grade-dependent)
700–800°C
Max Operating Temperature
250–300°C
80–200°C (grade-dependent)
250–350°C
Coercivity Temperature Coefficient
+0.27%/°C
-0.6%/°C (typical)
-0.3%/°C (typical)
Remanence Temperature Coefficient
-0.2%/°C
-0.12%/°C (typical)
-0.04%/°C (typical)
Cost
Low
High
Very High
Corrosion Resistance
Excellent
Poor (requires coating)
Excellent
This comparison highlights that ferrite magnets offer a unique combination of high Curie temperature, positive coercivity temperature coefficient, and cost-effectiveness, making them suitable for applications where thermal stability and durability are paramount.
5. Conclusion
Ferrite magnets are distinguished by their high Curie temperature (450–460°C), which enables them to retain their magnetic properties at elevated temperatures far beyond the capabilities of many other magnet materials. Their temperature stability is characterized by a positive coercivity temperature coefficient, which enhances their resistance to demagnetization as temperature increases, and a negative remanence temperature coefficient, which reduces their magnetic output. While ferrite magnets perform exceptionally well at high temperatures, their coercivity decreases at low temperatures, necessitating careful design considerations for cryogenic applications.
The reversible nature of temperature-induced changes in ferrite magnets ensures that their magnetic properties recover upon cooling, provided they are not exposed to temperatures exceeding their Curie point or subjected to mechanical stress. This thermal resilience, combined with their low cost and corrosion resistance, makes ferrite magnets indispensable in high-temperature industrial applications, electric motors, generators, and automotive systems.
In summary, the Curie temperature of ferrite magnets is a defining feature that underpins their thermal stability and performance across a wide temperature range. By understanding and leveraging their temperature-dependent magnetic behaviors, engineers can optimize the design and application of ferrite magnets to meet the demands of diverse and challenging environments.
1. Price Comparison: Ferrite vs. Neodymium Magnets
Ferrite magnets are significantly cheaper than neodymium magnets, with price differences often exceeding 80% for similarly sized products.
Ferrite Magnets: Typically cost between 5–10 per kilogram, with individual small magnets (e.g., 22x6x5 mm rings) priced as low as €1.95 (2.15).Largerferriteblocks(e.g.,6x4x1inches)mayrangefrom∗∗13.25–$14.75**.
Neodymium Magnets: Average 30–40 per kilogram, with individual prices varying based on size, strength, and grade. For example:
A 6x1 mm N52 disc magnet (250-pack) costs **23.49∗∗(0.09 per magnet).
A 1/4x1/8-inch N42 disc magnet (100-pack) costs **19.99∗∗(0.20 per magnet).
A 40x20x10mm N35 nickel-coated block costs €5 (5.50),whileaferritemagnetofthesamesizecosts∗∗<€1∗∗(1.10).
2. Reasons for Price Disparities
(1) Raw Material Costs
Ferrite Magnets: Composed of abundant, inexpensive materials like iron oxide (Fe₂O₃), strontium carbonate (SrCO₃), or barium carbonate (BaCO₃). These materials are widely available and cost-effective.
Neodymium Magnets: Require rare earth elements such as neodymium (Nd), praseodymium (Pr), and dysprosium (Dy), which are scarce and expensive. For instance, neodymium prices hover around $68.05/kg, and these elements constitute 29–32.5% of the magnet’s weight.
(2) Manufacturing Complexity
Ferrite Magnets: Produced via a straightforward sintering process, where powders are pressed into molds and heated. This simplicity reduces production costs.
Neodymium Magnets: Require a multi-step process involving melting, casting, milling, pressing, and sintering under controlled atmospheres. Additionally, neodymium magnets often need protective coatings (e.g., nickel, epoxy) to prevent corrosion, adding to costs.
(3) Performance Characteristics
Magnetic Strength: Neodymium magnets are 2–7 times stronger than ferrite magnets, enabling compact designs for high-performance applications (e.g., EV motors, MRI machines). This superior performance justifies their higher price.
Temperature Stability: Ferrite magnets operate reliably up to 250°C, while neodymium magnets degrade above 80°C, limiting their use in high-temperature environments without costly modifications.
Corrosion Resistance: Ferrite magnets are inherently corrosion-resistant, whereas neodymium magnets require protective coatings, increasing production expenses.
(4) Market Demand and Applications
Ferrite Magnets: Dominate cost-sensitive markets like consumer electronics (e.g., refrigerator magnets, craft projects), automotive sensors, and magnetic separators. Their affordability makes them ideal for large-volume, low-margin applications.
Neodymium Magnets: Target high-performance sectors such as EVs, wind turbines, portable audio devices, and medical imaging. The demand for compact, powerful magnets in these industries drives premium pricing.
(5) Economies of Scale and Volume
Ferrite Magnets: Benefit from mass production due to their simplicity and low material costs. Bulk purchases further reduce per-unit prices, making them economical for industrial applications.
Neodymium Magnets: High raw material costs and complex manufacturing limit economies of scale. However, advancements in recycling rare earth elements may mitigate future price fluctuations.
3. Cost-Effectiveness Analysis
Ferrite Magnets: Offer 2–3 times more magnetic field per dollar compared to neodymium magnets, making them valuable for budget-constrained projects or applications requiring numerous units (e.g., industrial machinery, magnetic boards).
Neodymium Magnets: Justify their higher cost through superior performance in space-constrained applications. For example, a neodymium magnet can lift objects many times its weight, whereas a ferrite magnet of the same size would struggle.
4. Practical Implications
Budget-Sensitive Projects: Ferrite magnets are the go-to choice for applications where cost outweighs the need for high magnetic strength (e.g., craft projects, educational tools).
High-Performance Applications: Neodymium magnets are indispensable in industries requiring compact, powerful solutions (e.g., EV motors, portable speakers). The trade-off between cost and performance is often acceptable in these sectors.
5. Future Trends
Ferrite Magnets: Likely to remain cost-effective for large-scale, low-performance applications. Innovations in material science may enhance their magnetic properties without significantly increasing costs.
Neodymium Magnets: Prices may stabilize or decline with improved rare earth recycling and alternative material development (e.g., iron-nitrogen magnets). However, their dominance in high-performance markets is expected to persist.
Ferrite magnets are significantly cheaper than neodymium magnets, with price differences often exceeding 80% for similarly sized products.
Ferrite Magnets: Typically cost between 5–10 per kilogram, with individual small magnets (e.g., 22x6x5 mm rings) priced as low as €1.95 (2.15).Largerferriteblocks(e.g.,6x4x1inches)mayrangefrom∗∗13.25–$14.75**.
Neodymium Magnets: Average 30–40 per kilogram, with individual prices varying based on size, strength, and grade. For example:
A 6x1 mm N52 disc magnet (250-pack) costs **23.49∗∗(0.09 per magnet).
A 1/4x1/8-inch N42 disc magnet (100-pack) costs **19.99∗∗(0.20 per magnet).
A 40x20x10mm N35 nickel-coated block costs €5 (5.50),whileaferritemagnetofthesamesizecosts∗∗<€1∗∗(1.10).
2. Reasons for Price Disparities
(1) Raw Material Costs
Ferrite Magnets: Composed of abundant, inexpensive materials like iron oxide (Fe₂O₃), strontium carbonate (SrCO₃), or barium carbonate (BaCO₃). These materials are widely available and cost-effective.
Neodymium Magnets: Require rare earth elements such as neodymium (Nd), praseodymium (Pr), and dysprosium (Dy), which are scarce and expensive. For instance, neodymium prices hover around $68.05/kg, and these elements constitute 29–32.5% of the magnet’s weight.
(2) Manufacturing Complexity
Ferrite Magnets: Produced via a straightforward sintering process, where powders are pressed into molds and heated. This simplicity reduces production costs.
Neodymium Magnets: Require a multi-step process involving melting, casting, milling, pressing, and sintering under controlled atmospheres. Additionally, neodymium magnets often need protective coatings (e.g., nickel, epoxy) to prevent corrosion, adding to costs.
(3) Performance Characteristics
Magnetic Strength: Neodymium magnets are 2–7 times stronger than ferrite magnets, enabling compact designs for high-performance applications (e.g., EV motors, MRI machines). This superior performance justifies their higher price.
Temperature Stability: Ferrite magnets operate reliably up to 250°C, while neodymium magnets degrade above 80°C, limiting their use in high-temperature environments without costly modifications.
Corrosion Resistance: Ferrite magnets are inherently corrosion-resistant, whereas neodymium magnets require protective coatings, increasing production expenses.
(4) Market Demand and Applications
Ferrite Magnets: Dominate cost-sensitive markets like consumer electronics (e.g., refrigerator magnets, craft projects), automotive sensors, and magnetic separators. Their affordability makes them ideal for large-volume, low-margin applications.
Neodymium Magnets: Target high-performance sectors such as EVs, wind turbines, portable audio devices, and medical imaging. The demand for compact, powerful magnets in these industries drives premium pricing.
(5) Economies of Scale and Volume
Ferrite Magnets: Benefit from mass production due to their simplicity and low material costs. Bulk purchases further reduce per-unit prices, making them economical for industrial applications.
Neodymium Magnets: High raw material costs and complex manufacturing limit economies of scale. However, advancements in recycling rare earth elements may mitigate future price fluctuations.
3. Cost-Effectiveness Analysis
Ferrite Magnets: Offer 2–3 times more magnetic field per dollar compared to neodymium magnets, making them valuable for budget-constrained projects or applications requiring numerous units (e.g., industrial machinery, magnetic boards).
Neodymium Magnets: Justify their higher cost through superior performance in space-constrained applications. For example, a neodymium magnet can lift objects many times its weight, whereas a ferrite magnet of the same size would struggle.
4. Practical Implications
Budget-Sensitive Projects: Ferrite magnets are the go-to choice for applications where cost outweighs the need for high magnetic strength (e.g., craft projects, educational tools).
High-Performance Applications: Neodymium magnets are indispensable in industries requiring compact, powerful solutions (e.g., EV motors, portable speakers). The trade-off between cost and performance is often acceptable in these sectors.
5. Future Trends
Ferrite Magnets: Likely to remain cost-effective for large-scale, low-performance applications. Innovations in material science may enhance their magnetic properties without significantly increasing costs.
Neodymium Magnets: Prices may stabilize or decline with improved rare earth recycling and alternative material development (e.g., iron-nitrogen magnets). However, their dominance in high-performance markets is expected to persist.
1. Introduction to Alnico Magnets
Alnico (Aluminum-Nickel-Cobalt) magnets, developed in the 1930s, are among the earliest permanent magnets used in industrial applications. Composed primarily of aluminum (Al), nickel (Ni), cobalt (Co), iron (Fe), and trace elements like titanium (Ti) and copper (Cu), Alnico magnets exhibit high remanence (Br), low-temperature coefficients, and exceptional thermal stability, with operational temperatures exceeding 600°C.
Traditionally manufactured via casting or sintering, Alnico magnets were dominant in motors, sensors, and aerospace applications before being largely replaced by ferrite and rare-earth magnets (e.g., NdFeB, SmCo) due to cost and performance limitations. However, their cobalt content (5–12%) and nickel content (14–23%) have revived interest in recycling amid rising critical metal scarcity.
2. Maturity of Alnico Recycling Processes
2.1 Primary Recycling Methods
Alnico recycling involves physical separation, pyrometallurgical, and hydrometallurgical approaches, though no single method dominates due to the material’s unique properties.
Physical Separation & Direct Reuse
Process: Intact Alnico magnets (e.g., from decommissioned motors or sensors) are physically separated from non-magnetic components (e.g., steel casings, plastics) using magnetic separators, eddy current separators, or manual sorting.
Maturity: Highly mature for pre-sorted waste streams, such as industrial scrap or end-of-life (EOL) motors.
Limitations: Requires minimal contamination; ineffective for powdered or heavily oxidized magnets.
Pyrometallurgical Recycling
Process: Alnico scrap is melted in electric arc furnaces (EAF) or induction furnaces at 1,400–1,600°C to separate cobalt, nickel, and iron from slag.
Maturity: Moderately mature.
Advantages: High recovery rates for cobalt (≥90%) and nickel (≥85%); suitable for mixed scrap.
Disadvantages: High energy consumption; potential for metal loss if slag is not fully processed.
Hydrometallurgical Recycling
Process: Alnico is dissolved in acidic solutions (e.g., HCl, H₂SO₄) to leach cobalt, nickel, and iron, followed by solvent extraction or precipitation to isolate pure metals.
Maturity: Emerging, with research focused on optimizing leaching efficiency and reducing chemical waste.
Advantages: High purity of recovered metals (≥99.9%); lower energy demand than pyrometallurgy.
Disadvantages: Slow processing times; challenges in handling aluminum (which forms insoluble oxides).
2.2 Industry Adoption & Challenges
Global Capacity: As of 2026, fewer than 10 specialized Alnico recyclers operate globally, primarily in Japan, Germany, and China, with a combined annual capacity of <5,000 metric tons.
Key Barriers:
Scarcity of EOL Alnico: Most Alnico magnets remain in service (e.g., in legacy motors, aerospace systems), limiting waste availability.
High Processing Costs: Recycling Alnico is 2–3x more expensive than primary production due to low economies of scale.
Material Complexity: Alnico’s multi-element composition complicates separation compared to single-element magnets (e.g., NdFeB).
3. Economic Value of Recycled Alnico
3.1 Market Prices & Drivers
Cobalt & Nickel Prices: Alnico’s value is tied to cobalt (27,000–35,000/tonin2024)andnickel(18,000–25,000/ton), which account for 60–70% of its material cost.
Recycling Premium: Recycled Alnico commands a 10–15% premium over virgin material due to lower environmental impact and reduced reliance on conflict minerals (e.g., Congolese cobalt).
Price Range (2024):
High-grade Alnico scrap (clean, intact magnets): 38–46/kg(17.2–20.9/lb).
Low-grade scrap (contaminated, powdered): 22–30/kg(10.0–13.6/lb).
3.2 Cost Comparison: Recycling vs. Primary Production
Parameter
Recycled Alnico
Virgin Alnico
Energy Consumption
60–70% lower
High (smelting, refining)
CO₂ Emissions
50–60% lower
High (mining, transport)
Material Cost
70–80% of virgin price
Base reference
Processing Cost
$12–18/kg
$8–12/kg
Source: China Rare Earth Industry Association (2023)
3.3 Policy Incentives
EU Critical Raw Materials Act: Targets 15% recycling rate for cobalt by 2030, boosting Alnico recovery.
U.S. Inflation Reduction Act: Offers $35/kg tax credit for recycled cobalt used in clean energy technologies.
China’s “14th Five-Year Plan”: Funds $50 million for rare-earth-free magnet recycling R&D, including Alnico.
4. Performance Degradation in Recycled Alnico
4.1 Magnetic Properties After Recycling
Recycled Alnico magnets typically retain 90–95% of their original magnetic performance, depending on:
Recycling Method:
Pyrometallurgy: May introduce impurities (e.g., oxygen, carbon), reducing coercivity (Hc) by 5–10%.
Hydrometallurgy: Preserves purity but risks grain growth during sintering, lowering remanence (Br) by 3–5%.
Contamination Level: Scrap with >5% non-magnetic impurities (e.g., steel, plastic) degrades performance by 10–15%.
4.2 Long-Term Stability
Temperature Stability: Recycled Alnico maintains <0.02%/°C remanence loss up to 600°C, identical to virgin material.
Time-Dependent Decay: Annual magnetic loss is 0.1–0.3% for recycled Alnico, comparable to virgin magnets.
4.3 Case Studies
Sumitomo Metal Mining (Japan): Recycled Alnico magnets used in automotive sensors showed <2% performance drop over 10,000 operational hours.
Fraunhofer IWKS (Germany): Hydrometallurgically recycled Alnico for wind turbines achieved 94% of virgin Br after 5 years of field testing.
5. Conclusion & Outlook
Alnico recycling is technically viable but economically nascent, constrained by limited waste supply and high processing costs. However, rising cobalt/nickel prices, policy mandates, and advancements in hydrometallurgical separation (e.g., ionic liquids for aluminum removal) are improving viability.
Key Recommendations:
Expand Collection Networks: Partner with OEMs to recover Alnico from EOL industrial equipment.
Invest in R&D: Develop low-cost, low-energy recycling methods (e.g., bioleaching).
Standardize Grading: Create industry-wide classifications for recycled Alnico to reduce quality uncertainty.
By 2030, Alnico recycling could supply 10–15% of global cobalt demand for magnets, reducing reliance on primary mining and enhancing supply chain resilience.
you might like
Leave a Comment
we welcome custom designs and ideas and is able to cater to the specific requirements.
Contact: Iris Yang & Jianrong Shan
Tel: +86-18368402448
E-mail: iris@senzmagnet.com
Address: Room 610, 6th Floor, Foreign Trade Building, No. 336 Shengzhou Avenue, Shanhu Street, Shengzhou City, Shaoxing City, Zhejiang Province, 312400
Copyright © 2026 Shengzhou Senz Magnet Co., Ltd. |Sitemap| Privacy Policy
